Projecta EVC2KW 2.4kW Portable EV Charger with LCD Screen and EVA Storage Case

A compact and portable 2.4kW EV charger that plugs directly into any standard 230V mains socket at home or in the garage, featuring an LCD screen for real-time charge monitoring, a programmable delay start timer, ergonomic design with ingress-protected caps, and an EVA hard storage case. Backed by a 5 year warranty.

Product Overview

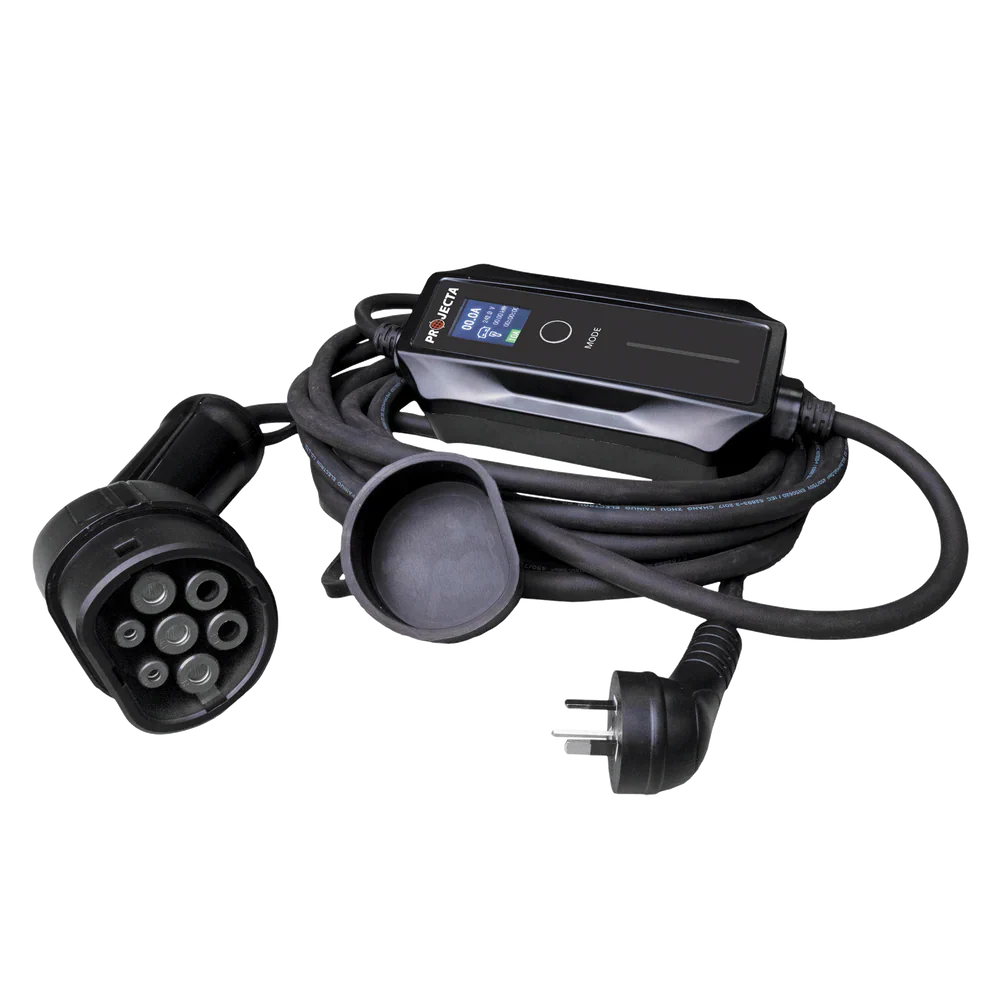

The Projecta EVC2KW is a 2.4kW portable EV charger designed for convenient home and garage charging using a standard 230V mains socket. With a 5m total cable length, a 10A rated current, and an LCD screen that displays charging information and charge status, the EVC2KW makes it easy to monitor and manage EV charging without specialised installation. A programmable delay start timer with 2, 4, 6, and 8 hour settings adds flexibility to charging schedules.

The charger features an ergonomic design built for comfortable use and heavy-duty durability, with protective caps on connectors to prevent water and dirt ingress. The EVA hard storage case stores the charger and cables safely and securely when not in use. Approved to AS/NZS 3112 and backed by a 5 year warranty.

Features & Benefits

Plugs Into Standard Mains Socket: The EVC2KW connects directly to a standard 230V mains socket found in the home or garage, requiring no dedicated charging station installation for convenient everyday EV charging.

LCD Screen with Charge Monitoring: An LCD screen displays real-time charging information and charge status, allowing the user to monitor the current charge at a glance without relying on a smartphone app.

Programmable Delay Start Timer: A delay start timer with selectable settings of 2, 4, 6, and 8 hours allows charging to be scheduled for off-peak periods, helping to manage energy costs.

Ergonomic Design with Ingress Protection: The ergonomic design is built for comfortable handling during regular use. Protective caps on connectors prevent water and dirt ingress for reliable performance in home and garage environments.

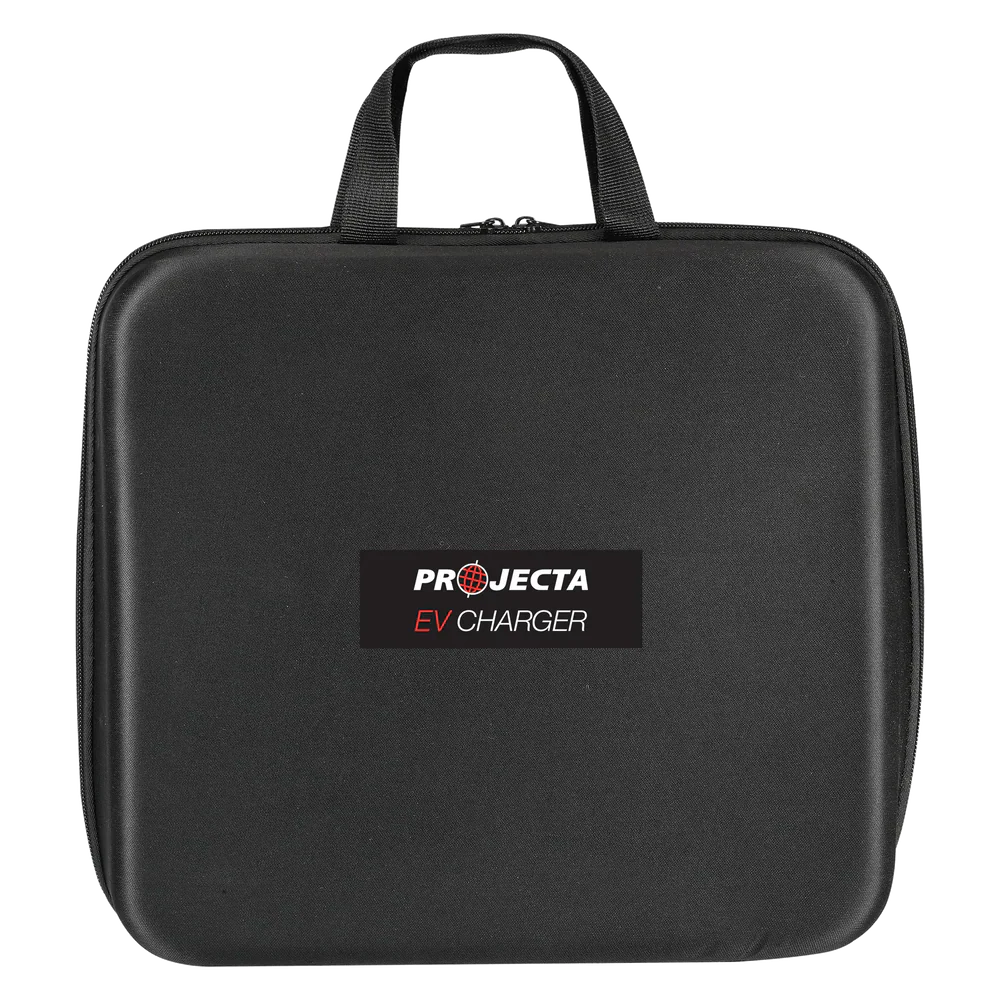

EVA Hard Storage Case Included: A heavy-duty EVA storage case is included to store the charger and cables safely and securely between uses, protecting the unit during transport and storage.

AS/NZS 3112 Approved: The EVC2KW is approved to AS/NZS 3112, the Australian and New Zealand standard for plugs, socket-outlets, and adaptors.

Technical Specs

Specification	Detail
SKU	EVC2KW
Brand	Projecta
Rated Current / Power	10A / 2.4kW
Input Voltage	230V AC ±10%
Output	230V AC ±10%
Cable Length	5m (total length)
Wiring Harness Size	3 x 2.5mm² + 1 x 0.5mm²
Insulation Resistance	>1000MΩ (DC500V)
Delay Start Timer	2h, 4h, 6h, 8h
Display	LCD Screen
Approvals	AS/NZS 3112
Warranty	5 Years

What's in the Box

EVC2KW 2.4kW Portable EV Charger
EVA Storage Case
Instruction Manual

Frequently Asked Questions

Does the EVC2KW require a dedicated charging station or special socket installation?

No. The EVC2KW plugs directly into a standard 230V mains socket found in the home or garage. No dedicated EV charging station or special installation is required.

What does the delay start timer do?

The delay start timer allows charging to be programmed to begin after a set delay of 2, 4, 6, or 8 hours. This allows charging to be scheduled for off-peak electricity periods to help manage energy costs.

Is the EVC2KW protected against water and dust ingress?

The EVC2KW features protective caps on connectors to prevent water and dirt ingress during use and storage. Please refer to the product manual for full environmental protection details before use in wet conditions.

What does the LCD screen display during charging?

The LCD screen displays charging information and charge status in real time, allowing the user to monitor the charge progress without requiring a smartphone or separate app.

Is the EVC2KW compliant with Australian safety standards?

Yes. The EVC2KW is approved to AS/NZS 3112, the Australian and New Zealand standard for plugs, socket-outlets, and adaptors, and is backed by a 5 year warranty.
