Aerpro AMDHY25 9" Wireless CarPlay Android Auto DAB+ Hyundai Santa Fe 2013-2018

Complete 9" Head Unit Upgrade Kit for Hyundai Santa Fe DM 2013–2018 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC, Factory USB & Reverse Camera Retained, Rear Camera Included.

---

Product Overview

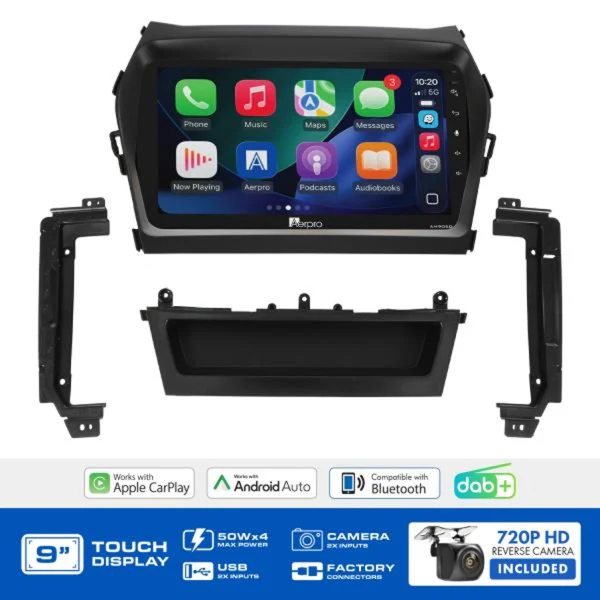

The Aerpro AMDHY25 is a complete head unit upgrade kit specifically designed for the Hyundai Santa Fe DM (2013–2018). Everything required for a clean, professional installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.

The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5 for hands-free calling and streaming, and a high-power 4x50W output with 13-band EQ and 4V/5CH RCA preouts for amplifier expansion. Steering wheel controls, factory USB input, and factory reverse camera are all retained. Suits non-amplified systems only.

---

Kit Inclusions

• AM905D 9" Multimedia Receiver
• Matte Black Fascia Kit
• Steering Wheel Control Interface Harness
• Antenna Adaptor
• Camera Retention Adaptor
• USB Retention Adaptor
• 720P AHD Universal Rear Camera

---

Key Specifications

• Screen: 9" capacitive touchscreen 1024x600 resolution
• Wireless CarPlay & Android Auto: Yes (wired also supported)
• DAB+ digital radio: Yes (AM/FM with RDS also included)
• Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
• Max power output: 4 x 50W
• RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
• 13-band EQ and time alignment: Yes
• USB inputs: 2 x rear USB (FAT32 / 32GB max)
• Reverse camera input: Yes (720P AHD compatible)
• Second camera input: Yes (720P AHD compatible)
• LED button illumination: 6-colour selectable
• Rear camera: 720P AHD universal included

---

Features & Benefits

• Complete plug-and-play kit: Fascia, SWC harness, antenna adaptor, camera and USB retention adaptors, and rear camera all included no additional parts required
• Factory reverse camera retained: The existing factory reverse camera is retained via the dedicated camera retention adaptor
• Factory USB input retained: Factory USB input is retained via the included USB retention adaptor (uses the rear USB input of the head unit)
• Steering wheel controls retained: Full factory SWC function retained via the included harness
• Wireless Apple CarPlay & Android Auto: Use maps, music, and calls wire-free; wired connection also supported
• DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS tuning
• Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
• 9" capacitive touchscreen: Large, smooth 1024x600 display
• 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
• 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
• 13-band EQ with time alignment: Precision audio tuning for your specific vehicle environment

---

Technical Specs

---

Compatible Vehicles

• Hyundai Santa Fe 2013–2018 DM

---

Frequently Asked Questions

Does this kit retain the factory reverse camera?

Yes the factory reverse camera is retained via the dedicated camera retention adaptor included in the kit. Reverse camera retention uses the reverse camera input of the head unit.

Does this kit retain the factory USB input?

Yes the included USB retention adaptor retains the factory USB input. Note that USB input retention uses the rear USB input of the head unit.

Does this kit retain steering wheel controls?

Yes the included steering wheel control interface harness retains factory SWC function.

Does this suit Santa Fe models with a factory amplifier?

No the AMDHY25 does not support factory amplified systems.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
