DNA RVS966HY01 9.66" OEM Style Mirror and Camera Kit Hyundai
DNA RVS966HY01 9.66" OEM Style Replacement Mirror and Camera Kit Hyundai
A premium OEM-style 9.66" replacement mirror and camera kit for Hyundai vehicles, the RVS966HY01 includes a full screen IPS display, a 1080P AHD 120-degree rear camera with butterfly or glass mount options, a 6-metre camera cable with trigger wire, and a Hyundai-specific OEM mirror mount bracket.
Product Overview

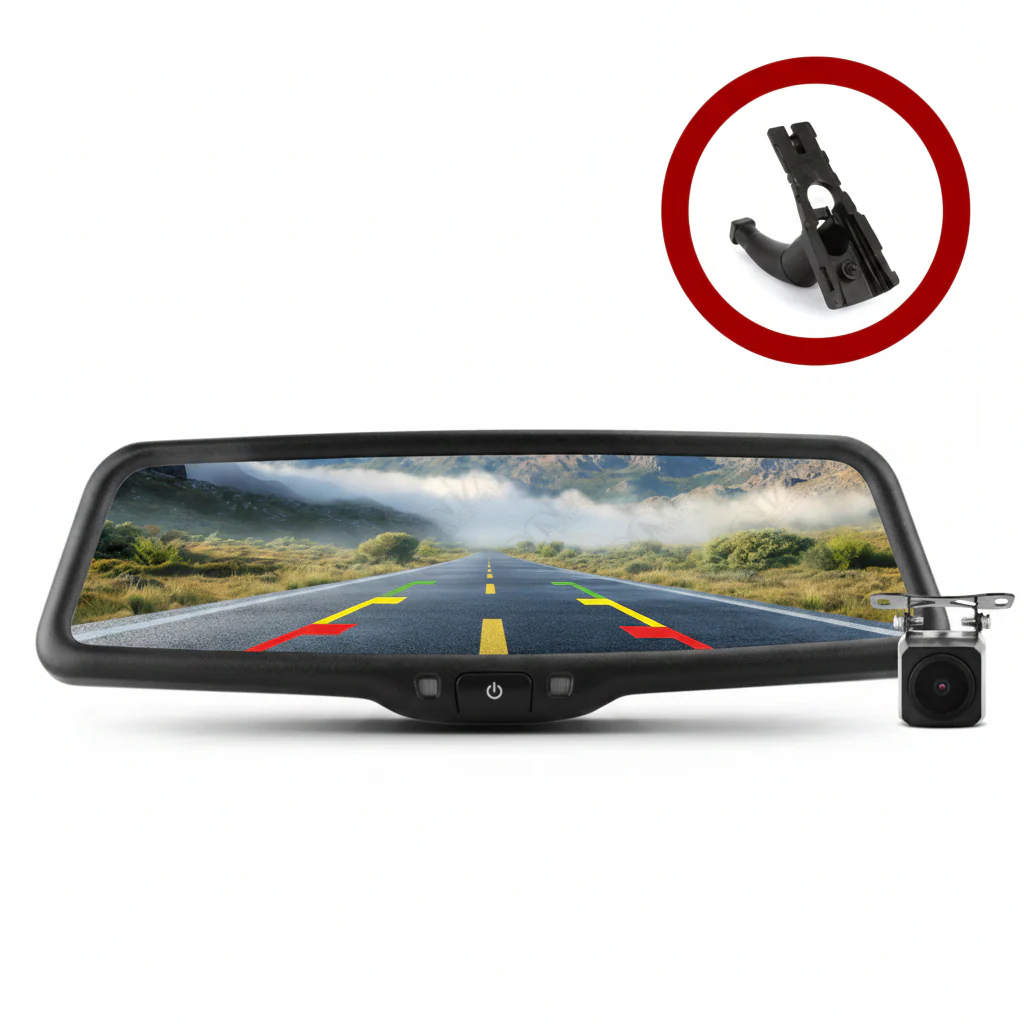

The DNA RVS966HY01 is a complete 9.66" OEM-style replacement mirror and rear camera kit designed for Hyundai vehicles. It replaces the factory mirror using the existing windscreen mirror mount and includes a Hyundai-specific OEM mirror mount bracket. Confirmed compatible models include the Hyundai iX35 LM (February 2010 to December 2015), Hyundai Elantra MD (June 2011 to December 2015), and Hyundai Tucson (August 2015 onwards). The 9.66" MIPI IPS full screen display at 1280x320 resolution activates automatically when reverse is selected and displays the 1080P AHD camera image with parking gridlines. When the vehicle moves out of reverse, the display returns to standard mirror operation.
The kit includes a 1080P AHD 120-degree rear camera with two mounting options: butterfly surface mount or glass mount. The camera connects to the mirror monitor via the included 6-metre camera extension cable with integrated trigger wire. The mirror monitor is powered via a 12/24V accessory power adaptor included in the kit, converting to the 5V 3A input required by the display. A separate bracket option is available and sold separately for alternative mounting configurations. The RVS966HY01 is supplied in a display gift box.
Features & Benefits
Specific Fitment for Hyundai Vehicles: The RVS966HY01 is supplied with a Hyundai-specific OEM mirror mount bracket, providing a factory-look installation using the existing windscreen mirror mounting point. Confirmed compatible models include the Hyundai iX35 LM (February 2010 to December 2015), Hyundai Elantra MD (June 2011 to December 2015), and Hyundai Tucson (August 2015 onwards). Alternative bracket options are available separately.
9.66" MIPI IPS Full Screen Display at 1280x320: The full screen 9.66" MIPI IPS display at 1280x320 resolution covers the entire mirror surface when active, providing a wide, high-quality rearward view from the included 1080P AHD camera.
Automatic Activation in Reverse with Parking Gridlines: The display activates automatically when reverse gear is engaged, displaying the rear camera image with parking gridlines for assisted manoeuvring. The display returns to standard mirror operation when reverse is disengaged.
1080P AHD Rear Camera with 120-Degree Angle: The included 1080P AHD rear camera provides high-definition rearward imaging at a 120-degree field of view. The compact camera body measures 23.5 x 23.5 x 34mm.
Dual Mount Options - Butterfly Surface Mount or Glass Mount: The rear camera is supplied with two mounting options: a butterfly surface mount for panel or body mounting, and a glass mount for rear window installation, providing flexibility for different mounting locations.
6-Metre Camera Cable with Trigger Wire: The included 6-metre camera extension cable with integrated trigger wire connects the rear camera to the mirror monitor and provides the reverse trigger signal required for automatic display activation.
12/24V Power Adaptor Included: The mirror monitor operates at 5V 3A and is powered via the included 12/24V accessory power adaptor, making it compatible with both 12V and 24V vehicle electrical systems without additional components.
4-Pin Camera Connection: The rear camera uses a 4-pin connector for a secure and reliable connection to the mirror monitor via the included extension cable.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | RVS966HY01 |
| Brand | DNA |
| Compatible Vehicles | Hyundai iX35 LM 02/2010-12/2015, Hyundai Elantra MD 06/2011-12/2015, Hyundai Tucson 08/2015-On |
| Monitor Size | 9.66" |
| Monitor Type | MIPI IPS Full Screen |
| Monitor Resolution | 1280 x 320 pixels |
| Monitor Dimensions | 253mm W x 81.6mm H x 48.3mm D |
| Monitor Input Voltage | 5V 3A |
| Power Adaptor | 12/24V to 5V 3A (included) |
| Video Input | 1x (reverse camera) |
| Auto Reverse Activation | Yes |
| Parking Gridlines | Yes |
| Mounting Type | OEM Mirror Mount Bracket (Hyundai specific, included) |
| Alternative Bracket | Available separately |
| Camera Resolution | 1080P AHD |
| Camera Angle | 120 Degrees |
| Camera Input Voltage | 12V |
| Camera Connection | 4 Pin |
| Camera Mount Options | Butterfly Surface Mount or Glass Mount |
| Camera Dimensions | 23.5mm H x 23.5mm W x 34mm D |
| Camera Cable Length | 6 Metres (with trigger wire) |
| Packaging | Display Gift Box |
What's in the Box
- 9.66" Mirror Monitor
- AHD Reverse Camera
- Camera Extension Cable with Trigger Wire
- OEM Mirror Mount Bracket
- 12/24V Power Adaptor
Compatible With
The RVS966HY01 is designed for Hyundai vehicles and uses the existing windscreen mirror mount with the included Hyundai-specific OEM mirror mount bracket. Confirmed compatible models include the Hyundai iX35 LM (February 2010 to December 2015), Hyundai Elantra MD (June 2011 to December 2015), and Hyundai Tucson (August 2015 onwards). An alternative bracket option is available separately for other mounting configurations. Confirm your specific Hyundai model and build date before purchase.
Frequently Asked Questions
Which Hyundai models is the RVS966HY01 compatible with?
The RVS966HY01 is confirmed compatible with the Hyundai iX35 LM from February 2010 to December 2015, the Hyundai Elantra MD from June 2011 to December 2015, and the Hyundai Tucson from August 2015 onwards. Confirm your specific model and build date before purchase.
Does the RVS966HY01 use the existing mirror mount on Hyundai vehicles?
Yes. The RVS966HY01 is designed to use the existing windscreen mirror mount on compatible Hyundai vehicles. The included Hyundai-specific OEM mirror mount bracket connects the monitor to the factory mounting point without drilling or permanent modification to the vehicle. An alternative bracket option is available separately.
What mounting options are available for the rear camera?
The included 1080P AHD rear camera is supplied with two mounting options: a butterfly surface mount for panel or body installation and a glass mount for rear window installation. Choose the mount type that best suits the camera placement on the vehicle.
Does the RVS966HY01 work on 24V vehicles?
Yes. The included power adaptor accepts 12V or 24V input and converts to the 5V 3A required by the mirror monitor, making the RVS966HY01 compatible with both 12V and 24V vehicle electrical systems.
Does the display show parking gridlines when reversing?
Yes. The 9.66" display activates automatically when reverse gear is engaged and overlays parking gridlines on the 1080P AHD camera image to assist with reversing and parking manoeuvres.
