Gator G158V Vehicle Specific Reverse Camera To Suit Isuzu D-Max - Black

Gator G158V Vehicle-Specific Reverse Camera for Isuzu D-Max (2012–2020), Black

A vehicle-specific tailgate handle replacement reverse camera for the Isuzu D-Max 150-degree wide angle, PAL/NTSC switchable, IP68, switchable guidelines and mirror image via loop, 8m extension cable.

Important: Suits models without factory locking tailgate. Covers all D-Max 2012–2015 variants and SX grade only from 2016–2020.

Product Overview

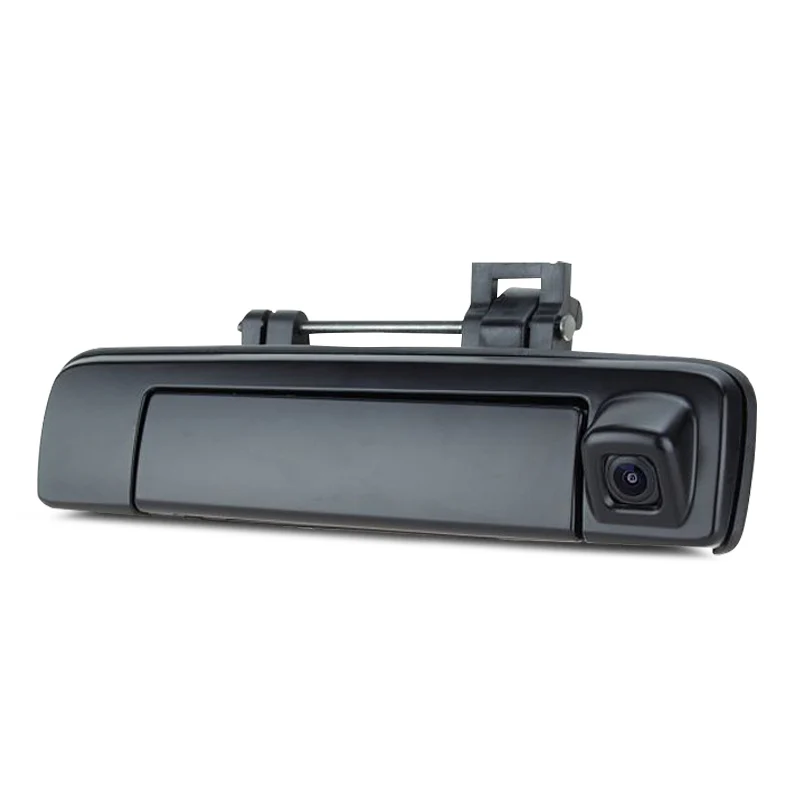

The Gator G158V is a vehicle-specific reverse camera for the Isuzu D-Max. It replaces the factory tailgate handle with a camera housing no drilling required. Unlike the Navara cameras (G156V, G157V), the G158V does not accommodate a factory tailgate lock it is only suitable for D-Max models without a factory locking tailgate.

The loop system configures parking guidelines and mirror image at installation:

• Green loop: Default parking guidelines ON → cut to remove guidelines
• White loop: Default normal (non-mirrored) image → cut to enable mirror image

IP68 rated, –20°C to +70°C. 150-degree field of view. 0.2 lux minimum illumination.

Features & Benefits

• Replaces factory tailgate handle — no drilling, OEM-appearance installation
• Only suitable for D-Max models without factory locking tailgate
• 150-degree wide-angle lens — minimises blind spots
• PAL/NTSC switchable — compatible with all aftermarket monitors
• Switchable parking guidelines — ON by default, cut green loop to remove
• Switchable mirror image — normal by default, cut white loop for mirror
• IP68 rated — waterproof for harsh Australian conditions
• 8m extension cable included
• 0.2 lux minimum illumination
• Operating temperature: –20°C to +70°C

Technical Specs

Compatible With / Goes Well With

Direct Vehicle Fit:

• Isuzu D-Max 2012–2015 (all badges)
• Isuzu D-Max 2016–2020 (SX grade only)

Not compatible with:

• Isuzu D-Max 2016–2020 LS, LS-U, LS-M, X-Runner and other grades with factory locking tailgate

Goes Well With:

• Aftermarket head units with RCA reverse camera input (PAL or NTSC)
• Gator reversing monitors with PAL or NTSC RCA input
• Gator GRCANFLT CANBUS filter (for CANBUS interference)

Frequently Asked Questions

What does "without factory locking tailgate" mean?

Some Isuzu D-Max grades feature a factory locking tailgate — a mechanism that locks the tailgate closed as part of the vehicle's central locking. The G158V tailgate handle housing does not include a lock provision and is incompatible with this system. Only D-Max models with a standard non-locking tailgate handle are suitable. Confirm your D-Max grade before purchasing.

Why is only the SX grade compatible from 2016–2020?

From 2016 onwards, higher-spec D-Max grades (LS, LS-U, LS-M, etc.) were equipped with a factory locking tailgate, making the G158V incompatible. The SX is the base-grade D-Max (2016–2020) which retained the non-locking tailgate handle. Confirm your grade with the F.A.E. team before purchasing.

What loop cuts are required for a standard Australian reverse camera installation?

The G158V defaults to normal (non-mirrored) image with guidelines ON. For a standard Australian PAL installation with mirror image and no guidelines: cut the white loop (mirror image) and the green loop (remove guidelines). If you prefer to keep guidelines, only cut the white loop.

Does installation require drilling?

No. The G158V replaces the factory tailgate handle — no additional drilling is required.

Is this camera available for 2021+ Isuzu D-Max models?

The G158V covers up to 2020. The 2021+ D-Max (fourth generation) uses a completely different body design — contact the F.A.E. team to confirm if a compatible camera is available for this generation.
