Gator G159V Vehicle Specific Reverse Camera To Suit Fiat Ducato

Gator G159V Vehicle-Specific Reverse Camera for Fiat Ducato

A vehicle-specific reverse or rear view camera for the Fiat Ducato fits around the factory high-level brake light surround, no drilling required. 170-degree, IP68, PAL/NTSC switchable, 0 lux, 14m total cable.

Product Overview

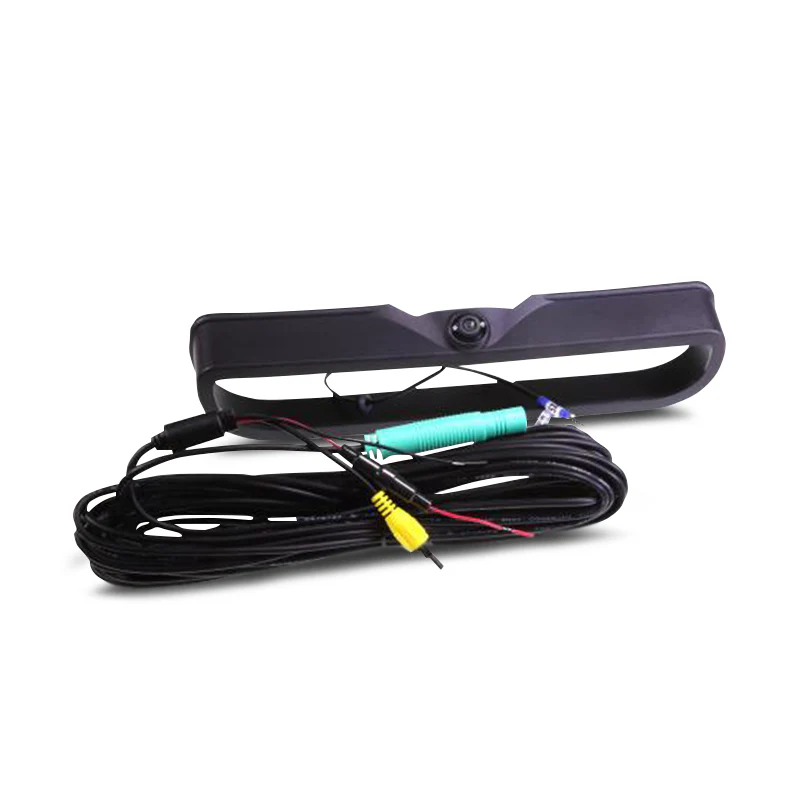

The Gator G159V is a vehicle-specific camera for the Fiat Ducato van. It fits around the factory high-level brake light surround at the rear of the vehicle providing a discreet OEM-style installation without drilling. The mirror image setting can be configured at installation time to operate as either a reverse camera or a permanent rear view camera.

The Aptina ASX340 image sensor with 30fps electronic shutter delivers 0 lux low-light performance. 170-degree wide-angle lens minimises rear blind spots. PAL/NTSC switchable compatible with all aftermarket monitors and head units. 14m total cable length (3m camera cable + 11m extension).

IP68 rated, –30°C to +75°C operating temperature.

Please note: Specific Fiat Ducato year range is not confirmed in the available supplier data. Contact the F.A.E. team to confirm compatibility before purchasing.

Features & Benefits

• Fits around factory high-level brake light surround — no drilling
• 170-degree wide-angle lens — minimises rear blind spots
• Aptina ASX340 image sensor, 30fps electronic shutter — 0 lux low-light
• Switchable mirror image — set as reverse or permanent rear view at installation
• PAL/NTSC switchable — compatible with all aftermarket monitors
• IP68 rated — waterproof for harsh conditions
• 14m total cable (3m + 11m extension with fused power wire and ground)
• Operating temperature: –30°C to +75°C

Technical Specs

Compatible With / Goes Well With

Direct Vehicle Fit:

• Fiat Ducato (year range not confirmed — contact F.A.E.)

Goes Well With:

• Aftermarket head units with PAL or NTSC/PAL auto-switching RCA reverse camera input
• Gator reversing monitors with PAL or NTSC RCA input
• Gator GRCANFLT CANBUS filter (if CANBUS interference is experienced)

Frequently Asked Questions

Does this camera retain the factory brake light function?

The G159V fits around the brake light surround rather than replacing the brake light housing itself — it is designed to be non-invasive. Confirm with the F.A.E. team whether the factory brake light function is fully retained after installation to ensure legal compliance.

What Fiat Ducato years does this camera fit?

Specific year range compatibility is not confirmed in the available supplier data. Contact the F.A.E. team to confirm fitment for your specific Ducato model and year before purchasing.

What is the difference between reverse and rear view mode?

In reverse mode, the camera activates when reverse gear is selected and displays the view in mirror-image orientation. In rear view mode, the camera displays a permanent live feed while driving. The G159V's mirror image setting is adjusted once at installation time — not switchable from the driver's seat.

Is the power wire fused?

Yes. The 11m extension cable includes a fused power wire — providing inline circuit protection on the camera power run.

Is this camera compatible with the Fiat Ducato used as a motorhome base?

Yes — the G159V is compatible with the Fiat Ducato regardless of body type, as it mounts to the rear of the vehicle cab structure. Confirm with the F.A.E. team for motorhome/campervan conversions where the rear structure may differ from the standard van.
