Gator G164V Vehicle Specific Reverse Camera Suit Mercedes Sprinter 2007 - 2018

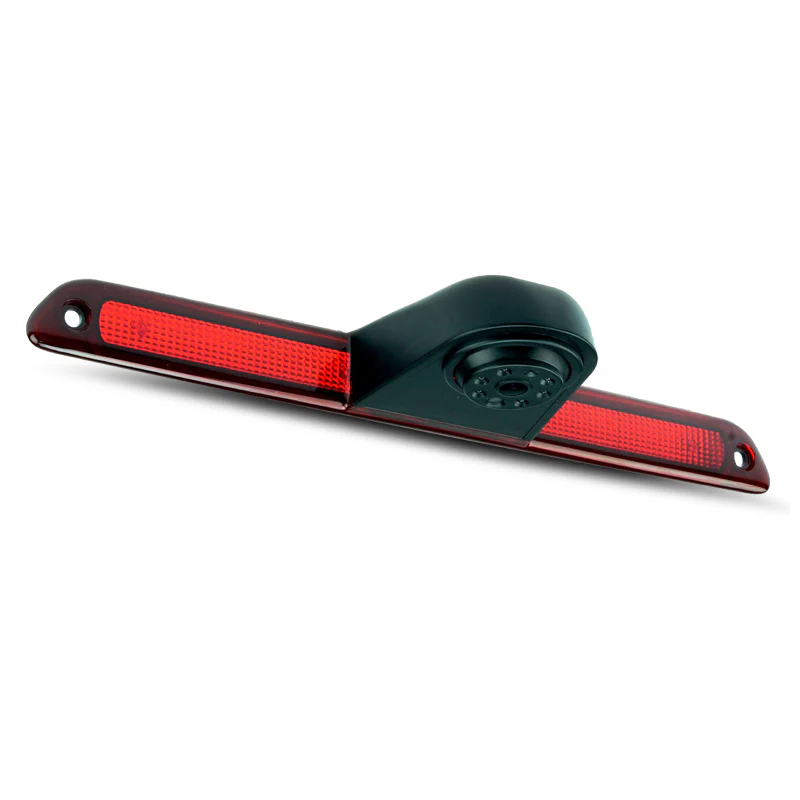

Gator G164V Vehicle-Specific Reverse Camera for Mercedes Sprinter (2007–2018)
A vehicle-specific brake light replacement reverse camera for the Mercedes Sprinter (2007–2018) 170-degree 1/3-inch CCD with infrared LEDs, IP68, PAL, built-in microphone, 10m cable included.
Product Overview
The Gator G164V is a vehicle-specific reverse camera for the Mercedes Sprinter van (2007–2018). It replaces the factory high-level brake light no drilling, discreet OEM-appearance installation.
The 1/3-inch CCD sensor with integrated infrared LEDs delivers 0 lux night vision. 170-degree wide-angle lens. IP68 rated. PAL RCA output. 10m cable kit included.
The built-in microphone outputs audio via the white RCA connector ambient sounds from behind the vehicle can be heard at a compatible display monitor. An adhesive pad is included for cable management.
Features & Benefits
- Replaces factory high-level brake light — no drilling
- Mercedes Sprinter 2007–2018 specific
- 170-degree 1/3-inch CCD lens with infrared LEDs — 0 lux night vision
- IP68 rated — waterproof and weatherproof
- Built-in microphone — audio via white RCA (compatible monitors only)
- PAL output — compatible with PAL aftermarket monitors
- 10m cable kit included
- Adhesive pad included (cable management)
- Operating temperature: –20°C to +70°C
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Number | G164V |
| Brand | Gator |
| Camera Type | Reverse |
| Image Sensor | 1/3" CCD |
| Lens Angle | 170 degrees |
| Video Standard | PAL |
| Monitor Connection | RCA (video) + RCA white (audio) |
| IP Rating | IP68 |
| Minimum Illumination | 0 lux (LEDs on) |
| Built-in Microphone | Yes (white RCA audio output — compatible monitors only) |
| Operating Voltage | 12V |
| Operating Temperature | –20°C to +70°C |
| Includes | Camera (0.7m cable to 4-pin male), 10m extension cable, connection cable (4-pin female to RCA video female + RCA audio female + DC female), male-to-male RCA splice, 1.5m DC power cable, adhesive pad, instructions |
| Vehicle Compatibility | Mercedes Sprinter 2007–2018 |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Mercedes Sprinter 2007–2018
Goes Well With:
- PAL-compatible aftermarket head units and monitors with RCA input
- Monitors with RCA audio input (for microphone feature)
- Gator GRCANFLT CANBUS filter (for CANBUS interference in modern Sprinter models)
Frequently Asked Questions
Does this camera retain the factory brake light function?
The G164V replaces the factory high-level brake light housing. Confirm with the F.A.E. team whether the brake light function is retained — retaining a functional high-level brake light is a legal requirement in Australia.
How does the built-in microphone work?
The G164V includes a built-in microphone that outputs audio via the white RCA connector. Connect the white RCA to the audio input on a compatible display monitor to hear ambient sounds from behind the vehicle. Not all monitors support audio input — confirm your monitor has an RCA audio input before relying on this feature.
Does this camera cover both the NCV3 and W906 Sprinter generations?
The G164V is confirmed for the Mercedes Sprinter 2007–2018. This spans the W906 second generation (2006–2018), covering most of the production run. The T1N first generation (pre-2006) and the VS30 third generation (2018–on) are not covered. Confirm with the F.A.E. team for your specific Sprinter generation.
Is the 10m cable sufficient for the Sprinter?
The 10m cable (0.7m camera lead + 10m extension) is sufficient for standard-wheelbase Sprinter configurations. For long-wheelbase or extra-long-wheelbase Sprinters, measure the routing distance before purchasing.
Does this camera fit the Mercedes Vito or Viano?
The G164V is specified for the Mercedes Sprinter only. Compatibility with the Vito or Viano is not confirmed — contact the F.A.E. team to confirm fitment for other Mercedes van models.
