Gator G165V Vehicle Specific Reverse Camera Suit Peugeot Expert
Gator G165V – Vehicle-Specific Reverse Camera for Peugeot Expert (2016–On)
A vehicle-specific brake light replacement reverse camera for the Peugeot Expert (2016–on) 170-degree CMOS, IP69K, PAL/NTSC switchable, 10m cable included.
Product Overview
The Gator G165V is a vehicle-specific reverse camera for the Peugeot Expert third generation (2016–on). It replaces the factory high-level brake light at the rear of the vehicle no drilling, discreet OEM-appearance installation.
170-degree wide-angle CMOS lens minimises rear blind spots. IP69K rated for high-pressure wash protection. PAL/NTSC switchable RCA output. 10m cable included.
Features & Benefits
- Replaces factory high-level brake light — no drilling
- Peugeot Expert 2016–on specific
- 170-degree CMOS lens — minimises blind spots
- IP69K rated — high-pressure wash resistant
- PAL/NTSC switchable RCA output
- 10m cable included
- Operating temperature: –30°C to +70°C
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Number | G165V |
| Brand | Gator |
| Camera Type | Reverse |
| Image Sensor | CMOS |
| Lens Angle | 170° (spec table) — features state 120° — confirm with F.A.E. |
| Video Standard | PAL/NTSC switchable |
| Monitor Connection | RCA |
| IP Rating | IP69K |
| Minimum Illumination | N/A — confirm with F.A.E. |
| Operating Voltage | 12V |
| Operating Temperature | –30°C to +70°C |

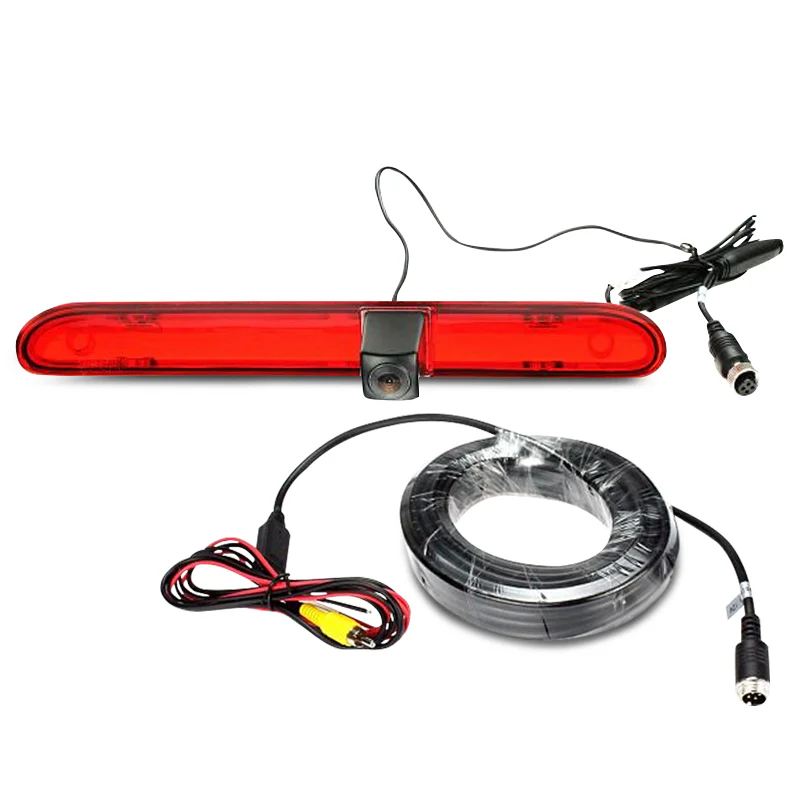

| Includes | Camera (0.35m cable to 4-pin male), 10m extension cable (4-pin female to RCA male, power wire, ground wire), instructions |
| Vehicle Compatibility | Peugeot Expert 2016–on |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Peugeot Expert 2016–on (third generation)
Goes Well With:
- PAL or NTSC-compatible aftermarket head units and monitors with RCA input
- Gator GRCANFLT CANBUS filter (for CANBUS interference)
Frequently Asked Questions
Does this camera retain the factory brake light function?
The G165V replaces the factory high-level brake light housing. Confirm with the F.A.E. team whether the brake light function is retained — this is a legal compliance requirement in Australia.
The supplier data shows both 170° and 120° — which is the correct lens angle?
The description states 170 degrees and the spec table confirms 170 degrees. A single features bullet states 120 degrees. This is a supplier data inconsistency — the listing is built to 170 degrees per the spec table. Confirm the correct lens angle with the F.A.E. team or Gator before purchasing if lens angle is a key requirement.
What is the difference between the G165V and the G166V — both suit the Peugeot Expert?
The G166V covers the Peugeot Expert 2007–2016 (second generation, NTSC only, 120-degree lens, IP69K). The G165V covers the Peugeot Expert 2016–on (third generation, PAL/NTSC switchable, 170-degree lens per spec, IP69K). They are different camera housings for different Expert generations — confirm your production year before purchasing.
Does this camera have infrared LEDs for night vision?
The features reference infrared LEDs, but the spec table lists lux rating as N/A — neither confirmed nor quantified. Contact the F.A.E. team to confirm low-light performance before purchasing if night vision capability is required.
Is the Peugeot Expert 2016–on the same as the Toyota ProAce and Citroën Dispatch?
Yes — the third-generation Peugeot Expert, Toyota ProAce (second generation), and Citroën Dispatch are all based on the same EMP2 platform and may share the same brake light housing. The G165V is confirmed for the Peugeot Expert 2016–on. Confirm with the F.A.E. team whether it also fits the Toyota ProAce or Citroën Dispatch before purchasing.
