Gator G177V Vehicle Specific Reverse Camera to Suit Volkswagen Caddy

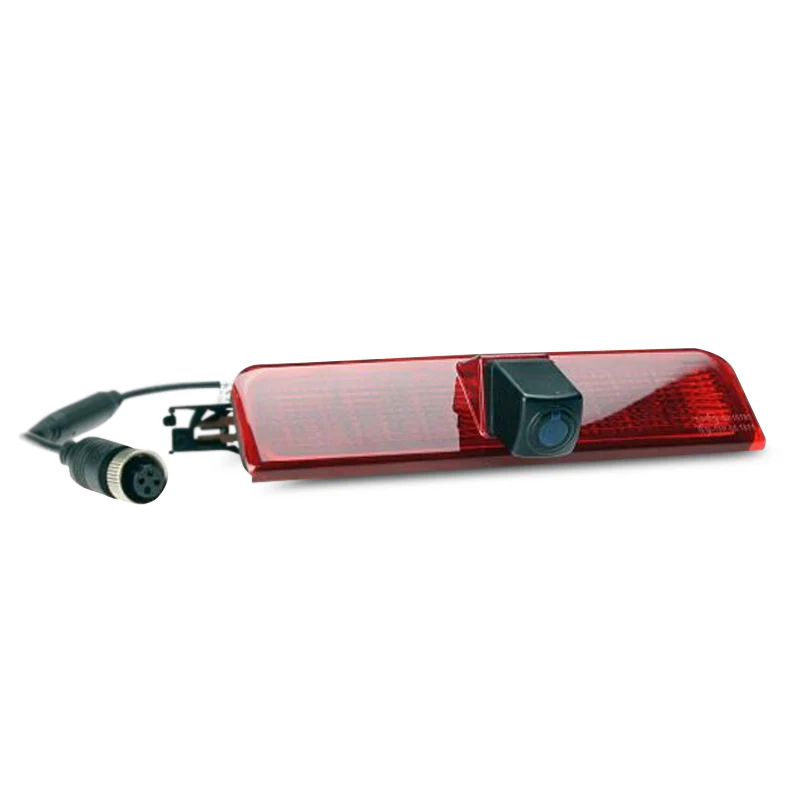

Gator G177V Vehicle-Specific Reverse Camera for Volkswagen Caddy (2005–2015)
A vehicle-specific brake light replacement reverse camera for the Volkswagen Caddy (2005–2015) 170-degree CMOS, IP69K, PAL, 4-pin connection. Extension cable required not included.
Product Overview
The Gator G177V is a vehicle-specific reverse camera for the Volkswagen Caddy van (2005–2015). It replaces the factory high-level brake light at the rear of the vehicle no drilling, discreet installation.
The 170-degree wide-angle CMOS lens minimises rear blind spots. IP69K rated for high-pressure water jet and steam cleaning resistance. PAL output via 4-pin connection.
Extension cable required the kit includes a 1m camera cable (4-pin) and a short adaptor cable only. A 4-pin extension cable must be purchased separately to reach from the camera to the front-mounted display monitor.
Features & Benefits
- Replaces factory high-level brake light — no drilling
- Volkswagen Caddy 2005–2015 specific
- 170-degree wide-angle CMOS lens — minimises blind spots
- IP69K rated — high-pressure wash resistant
- PAL output via 4-pin connection
- Operating temperature: –20°C to +70°C
- Extension cable required (not included)
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Number | G177V |
| Brand | Gator |
| Camera Type | Reverse |
| Image Sensor | CMOS |
| Lens Angle | 170 degrees |
| Video Standard | PAL |
| Connection Type | 4-pin |
| IP Rating | IP69K |
| Minimum Illumination | Not confirmed in supplier data |
| Operating Voltage | 12V |
| Operating Temperature | –20°C to +70°C |
| Includes | Camera (1m cable to 4-pin male connector), camera connection cable (mini female 4-pin to male 4-pin), instructions |
| Extension Cable Included | No — 4-pin extension cable required (sold separately) |
| Vehicle Compatibility | Volkswagen Caddy 2005–2015 |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Volkswagen Caddy 2005–2015
Goes Well With:
- PAL-compatible aftermarket head units and monitors with 4-pin or RCA camera input
- 4-pin camera extension cable (sold separately — required for installation)
- Gator GRCANFLT CANBUS filter (for CANBUS interference)
Frequently Asked Questions
Does this camera retain the factory brake light function?
The G177V replaces the factory high-level brake light housing. Confirm with the F.A.E. team whether the brake light function is retained — retaining a functional high-level brake light is a legal requirement in Australia.
What extension cable is required?
A 4-pin camera extension cable is required to run from the camera at the rear of the Caddy to the monitor in the cab. The length required depends on your specific routing — contact the F.A.E. team for guidance on the correct extension cable.
What Volkswagen Caddy years does this camera fit?
The G177V is confirmed for the Volkswagen Caddy 2005–2015 (Mk2). The 2015+ Caddy (Mk3 facelift) may have a different brake light housing — confirm with the F.A.E. team if your Caddy is a 2015 or later model.
Is this the same camera as the G176V for the Transporter?
Both the G177V and G176V are Volkswagen-specific 4-pin brake light cameras with identical specifications (170-degree, IP69K, PAL, CMOS). The difference is the brake light housing shape — the G176V fits the Transporter T5/T6/T6.1 twin rear door; the G177V fits the Caddy (2005–2015). They are not interchangeable.
Does this camera have night vision LEDs?
The supplier data does not confirm infrared LED inclusion for the G177V. Minimum lux rating is listed as N/A. Contact the F.A.E. team to confirm low-light performance before purchasing if this is a critical requirement.
