Gator G40V Universal Brake Light 5-In-1 Camera With Wireless Controller

Gator G40V Universal Brake Light 5-In-1 Camera with Wireless Controller

A universal 5-in-1 brake light housing camera for commercial vans five switchable viewing modes via wireless controller, dynamic parking guidelines, IP67, NTSC, 15m cable. Some modifications may be required. Blind spot mode requires CANBUS wiring.

Safety note: The wireless controller contains a coin/button cell battery. Keep out of reach of children.

Product Overview

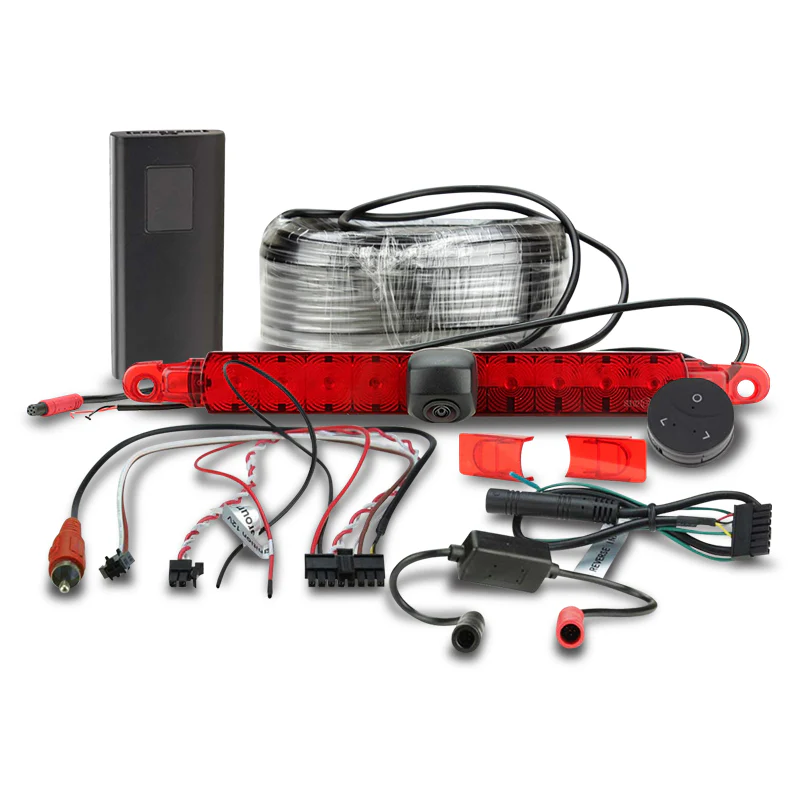

The Gator G40V is a universal 5-in-1 camera in a brake light housing, designed for the top rear of commercial vans. Five viewing modes are switchable via the included wireless controller from the driver's seat:

1. Birds-eye: Overhead perspective for tight manoeuvres.
2. Wide angle (180°): Broad rear view for reversing and loading.
3. Reverse mode (150°): Standard reversing view with optional dynamic guidelines.
4. Left/right blind spot: Side view triggered by vehicle indicators.
5. Driving mode: Mimics a rear view mirror while driving forward.

Important — blind spot mode: The blind spot viewing mode requires CANBUS wiring from the vehicle to the camera module. When activated via the vehicle's indicators at speeds over 40km/h, the display switches to the blind spot view. Without CANBUS connection, blind spot mode is not functional.

As a universal product, some modifications to the vehicle may be required for installation. For vehicle-specific fit on Fiat Ducato, see the G162V.

NTSC output only confirm your head unit or monitor accepts NTSC camera input before purchasing.

Features & Benefits

• 5 switchable viewing modes via wireless controller
• Dynamic parking guidelines in reverse mode
• Blind spot mode via indicators — requires CANBUS wiring
• 210°(H) × 140°(V) maximum lens coverage
• IP67 rated — waterproof and weather resistant
• Universal brake light housing mount
• NTSC RCA output — 15m Mini-DIN cable with reverse trigger
• Some vehicle modification may be required

Technical Specs

Compatible With / Goes Well With

Direct Vehicle Fit:

• Universal — commercial vans with OEM top-rear brake light. Some modifications may be required.

Goes Well With:

• NTSC-compatible or PAL/NTSC auto-switching aftermarket head units and monitors with RCA input
• CANBUS wiring connection (required for blind spot mode)
• Gator GT700SD, GT704SD monitors (PAL/NTSC auto-switching)

Frequently Asked Questions

What makes the G40V different from the G42V?

Both are 5-in-1 cameras with wireless controllers, the same 210°×140° lens, NTSC output, IP67 rating, and 15m cable. The G42V uses a universal flush surface mount; the G40V uses a universal brake light housing mount. The G40V also has CANBUS-triggered blind spot mode (speed and indicator activated); the G42V's blind spot mode is manually switched via the wireless controller.

Does the blind spot mode require CANBUS wiring?

Yes. The blind spot viewing mode only functions when the camera module is connected to the vehicle's CANBUS system. When the vehicle's indicator is activated at speeds over 40km/h, the display switches to the blind spot camera view. Without CANBUS connection, all other modes still function but blind spot mode is unavailable.

This camera is NTSC — will it work with my head unit?

The G40V outputs NTSC only. Most modern aftermarket head units auto-switch between PAL and NTSC. Confirm your specific head unit or monitor accepts NTSC input before purchasing.

Does this camera retain the factory brake light function?

The G40V replaces the OEM brake light housing. Confirm with the F.A.E. team whether the brake light function is retained — retaining a functional brake light is a legal requirement in Australia.

What modifications might be required for a universal product?

As a universal product, the G40V may not drop directly into every van's brake light location without some trimming or bracket adjustment. Contact the F.A.E. team before purchasing to confirm whether modifications are needed for your specific van.

Weight

0.79 kg
