Gator GHWCUSB2 USB Hard Wire Kit Suit Various Gator Dashcams
Gator GHWCUSB2 USB Dashcam Hard Wire Kit with Parking Mode & Low Voltage Protection
Enables parking mode on compatible Gator dashcams hard wires directly to the vehicle fuse box, 12/24V, voltage cut-off at 11.9V, 3 fuse taps (Standard, Mini, Micro). USB cable not included.
Product Overview

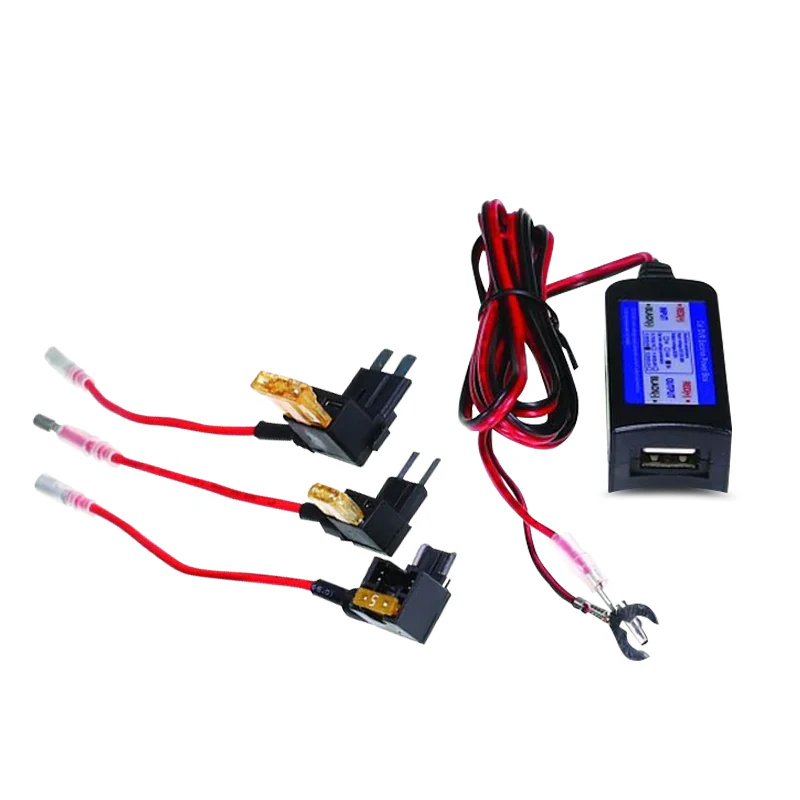

The Gator GHWCUSB2 is a dashcam hard wire kit that connects compatible Gator dashcams directly to the vehicle fuse box for a permanent, discreet installation. It provides a powered USB socket (5V/1.5A) with both constant and accessory power connections, enabling the dashcam's parking surveillance mode while protecting the vehicle battery via low voltage cut-off.
The micro USB power cable is not included it is the cable supplied with the compatible dashcam. The GHWCUSB2 provides the powered USB socket; the dashcam's own cable connects to it.
Also enables: The GPS7282W external GPS antenna to be connected to compatible dashcams.
Compatible dashcam models: GHDVR72W, GHDVR82W, GHDVR85W, GHDVR92W, GHDVR95W, GHDVR98W, G4KDVR30, G4KDVR40.
Features & Benefits
- Enables parking surveillance mode on compatible Gator dashcams
- Low voltage cut-off — 11.9V (12V vehicles) / 23.9V (24V vehicles)
- 12V/24V compatible — cars and trucks
- Includes 3 fuse taps: Standard, Mini, and Micro
- Simple 2-wire fuse box installation
- Discreet routing — dashcam cable hidden behind trim panels
- Frees up vehicle accessory socket
- Compatible with Gator GPS7282W GPS antenna accessory
- USB cable not included — use the cable supplied with your dashcam
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Number | GHWCUSB2 |
| Brand | Gator |
| Input Voltage | 12–30V DC |
| Output Voltage | 5V / 1.5A |
| Low Voltage Cut-Off (12V) | 11.9V |
| Low Voltage Cut-Off (24V) | 23.9V |
| Connection Type | Micro USB socket (cable not included) |
| Fuse Tap Types Included | Standard, Mini, Micro |
| Installation | 2-wire — constant and accessory fuse box connection |
| USB Cable Included | No — use the cable supplied with your dashcam |
| GPS7282W Compatible | Yes |
| Compatible Dashcams | GHDVR72W, GHDVR82W, GHDVR85W, GHDVR92W, GHDVR95W, GHDVR98W, G4KDVR30, G4KDVR40 |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Universal — compatible with any 12V or 24V vehicle with fuse box access
Goes Well With:
- Gator GHDVR72W, GHDVR82W, GHDVR85W, GHDVR92W, GHDVR95W, GHDVR98W, G4KDVR30, G4KDVR40 dashcams
- Gator GPS7282W external GPS antenna (this kit enables GPS7282W compatibility on supported models)
Frequently Asked Questions
Why is the USB cable not included?
The GHWCUSB2 provides a powered USB socket. The micro USB cable that connects the dashcam to this socket is the same cable supplied with the dashcam — it is not duplicated in this kit. Locate the micro USB power cable that came with your Gator dashcam before installing.
Does this kit enable parking mode on all Gator dashcams?
No. Parking mode is only supported on the compatible models listed (GHDVR72W, GHDVR82W, GHDVR85W, GHDVR92W, GHDVR95W, GHDVR98W, G4KDVR30, G4KDVR40). Confirm your dashcam model is on this list before purchasing.
What is the voltage cut-off and why does it matter?
The voltage cut-off automatically disconnects power to the dashcam when the battery voltage drops to 11.9V (12V system) or 23.9V (24V system) — protecting the battery from draining to a level that would prevent the vehicle from starting while parked.
What is the difference between the GHWCUSB2 and the GUNIHWC?
The GHWCUSB2 is a model-specific kit for the listed Gator dashcam models with micro USB connections. It provides a USB socket (cable not included) and has a fixed low voltage cut-off (11.9V/23.9V). The GUNIHWC is a universal kit that includes three dashcam connectors (Mini, Micro, Type-C USB), five fuse tap types, and a selectable voltage cut-off — suited to a wider range of dashcam models and brands.
Does this kit work with the GPS7282W GPS antenna?
Yes. The GHWCUSB2 enables the GPS7282W antenna to be used with compatible dashcam models. The GPS7282W is the accessory referenced in the kit specifications as confirmed compatible.
