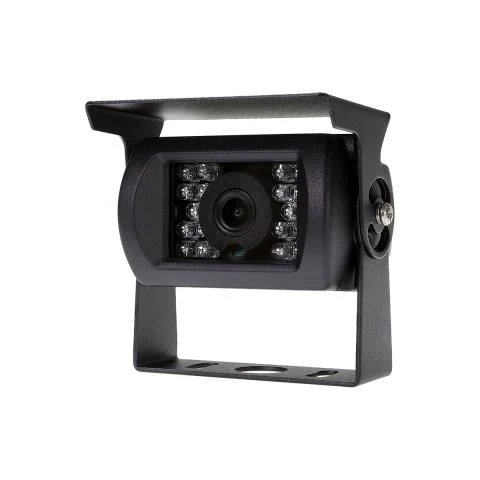

Gator GT16SD Surface Mount Heavy Duty Camera
Gator GT16SD Heavy Duty Surface Mount Camera, IP69K, 18 IR LEDs
A premium heavy duty surface mount camera for trucks, mining loaders, and industrial vehicles IP69K rated (high-pressure wash resistant), 120-degree CMOS, 18 infrared LEDs for 0 lux night vision, PROLINK II connector, PAL.
Product Overview
The Gator GT16SD is a high-specification heavy duty surface mount camera from the Gator GT range, designed for heavy trucks, mining equipment, and industrial or construction vehicles. It upgrades over the GT14SD with IP69K rating for high-pressure water jet and steam cleaning resistance, and 18 infrared LEDs (vs 10 on the GT14SD) for superior extended-range night vision.
U-shaped bracket allows flexible angle positioning. Adjustable sunshade included. PROLINK II connector for Gator GT monitor systems.
Features & Benefits
- IP69K rated — high-pressure water jet and steam cleaning protection (highest IP rating)
- 18 infrared LEDs — 0 lux extended-range night vision
- 120-degree wide-angle CMOS lens — eliminates blind spots
- Heavy duty U-shaped surface mount bracket
- Adjustable sunshade included
- PROLINK II connector
- PAL video standard
- Compact aluminium case
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Number | GT16SD |
| Brand | Gator |
| Series | Gator GT |
| Application | Heavy vehicles — trucks, mining, industrial, construction |
| Mount Type | Surface mount — U-shaped bracket |
| Image Sensor | CMOS |
| AHD | No |
| Lens Angle | 120 degrees |
| Video Standard | PAL |
| Parking Gridlines | No |
| IP Rating | IP69K |
| Voltage | 12V |
| Minimum Illumination | 0 lux (infrared) |
| LEDs | 18 × infrared |
| Camera Connector | PROLINK II |
| Cable Length | 400mm |
| Reverse Trigger | N/A |
| Camera Dimensions | 43mm (H) × 70mm (W) × 58mm (L) |
| Camera & Bracket | 80mm (H) × 78mm (W) × 58mm (L) |
| Connection Type | Wired |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Universal — heavy trucks, mining loaders, construction and industrial vehicles
Goes Well With:
- Gator GT700SD, GT704SD, GT904SD, GT704DVR PROLINK II monitors
- Gator PLC10, PLC15, PLC20 PROLINK II extension cables
- Gator PLAC42 / PLC26 adaptors (to connect to non-PROLINK RCA monitors)
- Gator GT14SD (IP68, 10 IR LEDs — lower-spec comparison)
Frequently Asked Questions
What is the difference between the GT16SD and the GT14SD?
Both are Gator GT heavy duty PROLINK II cameras with 120-degree CMOS lenses, 0 lux night vision, U-shaped brackets, and 400mm pigtail cables. The GT16SD has IP69K rating (vs IP68 on GT14SD) and 18 infrared LEDs (vs 10 on GT14SD) — providing higher water protection and superior night vision range. The GT14SD has a 3-year warranty; the GT16SD warranty is not confirmed in supplier data.
What is IP69K and why does it matter for heavy vehicles?
IP69K is the highest standard for water ingress protection — it certifies resistance against high-pressure, high-temperature water jets (typically 80°C at 100 bar pressure). This is critical for cameras on heavy vehicles and mining equipment that are regularly pressure-washed or steam-cleaned. IP67 and IP68 protect against submersion but not high-pressure jets.
Does this camera have parking gridlines?
No. The GT16SD does not include built-in parking gridlines.
Can this camera be used with a standard RCA monitor?
Yes — with an adaptor. The GT16SD connects to Gator PROLINK II monitors directly. For standard RCA monitors, the Gator PLC26 (PROLINK II plug to dual RCA socket) provides the necessary conversion.
Does this camera need an extension cable?
Yes. The native cable is 400mm from the camera to the PROLINK II connector — a short pigtail. A PROLINK II extension cable (PLC3, PLC5, PLC10 etc.) is required for virtually all installations.
