Gator GT700SD 7" Commercial Grade Dash Mount Display Reverse Camera Kit
Gator GT700SD 7" Commercial Grade Dash Mount Reverse Camera Kit
A complete commercial grade reverse camera kit for heavy trucks, 4WDs, and industrial vehicles 7-inch 350cd adjustable metal bracket monitor with image flip, PROLINK II screw connections, 10 IR LED IP68 camera, 3 video inputs, 12/24V compatible.
Product Overview

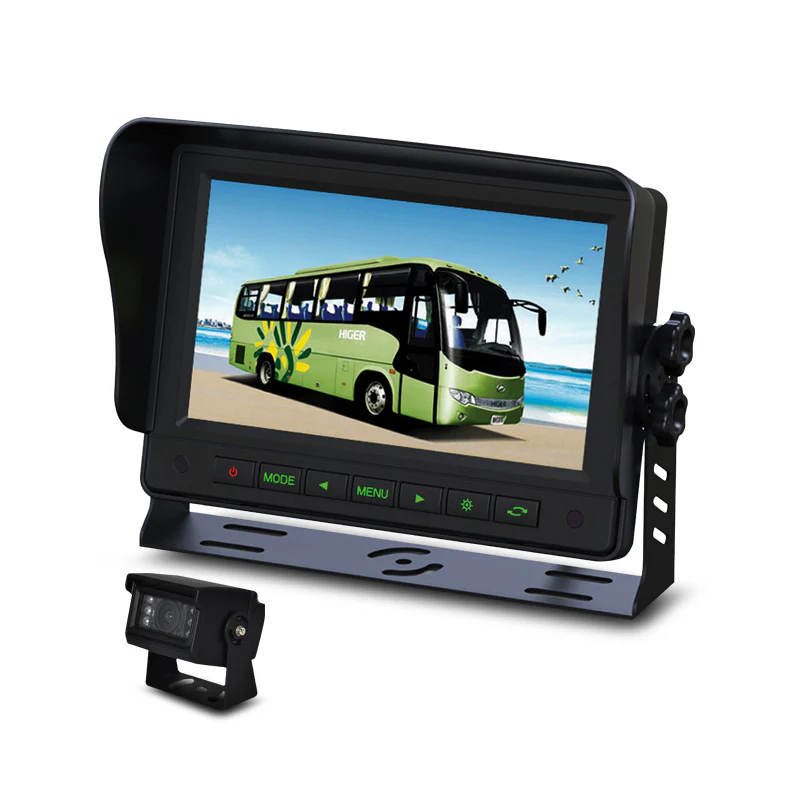

The Gator GT700SD is a complete heavy duty reverse camera kit designed for commercial vehicles, trucks, 4WDs, and industrial equipment. The kit includes a 7-inch commercial grade display with an adjustable metal U-bracket, high/low voltage cut-off, and circuit protection paired with the GT14SD compact heavy duty camera with 10 infrared LEDs for 0 lux night vision.
The PROLINK II screw connection cable system provides dust and waterproof connections throughout a step above the push-fit connectors used in standard car audio-grade kits. Three video inputs allow up to two additional cameras to be added for comprehensive all-round coverage.
Unlike most Gator monitors in this range, the GT700SD monitor supports both image flip and reverse (mirror) image allowing the display to be configured for the driver's preferred orientation.
Battery safety note: The IR remote includes a CR2025 coin cell battery. Keep button/coin cell batteries out of reach of children.
Features & Benefits
- 7-inch 800×480 commercial grade display, 350cd brightness
- Image flip and reverse (mirror) image supported
- Triple video input — up to two additional cameras
- PROLINK II screw connection for dustproof and waterproof cabling
- High/low voltage cut-off and built-in circuit protection
- 10 infrared LEDs — 0 lux night vision
- 120-degree CMOS camera lens
- Adjustable metal U-bracket for monitor and camera
- Removable display sunshade
- IR remote control included
- 12V/24V compatible — cars, 4WDs, trucks, commercial vehicles
- Optional windscreen suction mount (GTSM1, sold separately)
Technical Specs
Monitor:
| Specification | Detail |
|---|---|
| Monitor Size | 7.0 inch |
| Mount Type | Adjustable metal U-bracket |
| Resolution | 800(H) × 480(V) |
| Brightness | 350 candela |
| AHD | No |
| Input Voltage | 12V/24V |
| Video Inputs | 3 (PROLINK II) |
| Display Configuration | Single |
| Image Flip | Yes — selectable |
| Reverse Mirror Image | Yes |
| Video Standard | PAL/NTSC |
| Image Adjustment | Brightness, contrast, saturation |
| Connection Type | PROLINK II |
| Monitor Dimensions | 129mm (H) × 195mm (W) × 30mm (D) |
| Monitor & Bracket | 156mm (H) × 215mm (W) × 73mm (D) |
Camera (GT14SD):
| Specification | Detail |
|---|---|
| Mount Type | Surface mount — U-shaped bracket |
| Camera Type | Rear view |
| AHD | No |
| Lens Angle | 120 degrees |
| Image Sensor | CMOS |
| Parking Gridlines | No |
| Video Standard | NTSC |
| IP Rating | IP68 (features list says IP69K — confirm with F.A.E.) |
| Input Voltage | 12V |
| Minimum Illumination | 0 lux (infrared) |
| LEDs | 10 × infrared |
| Camera Connector | PROLINK II |
| Cable Length | 400mm |
| Camera Dimensions | 42mm (H) × 52mm (W) × 55mm (L) |
Kit:
| Specification | Detail |
|---|---|
| Connection Type | Wired (PROLINK II) |
| Weight | 2.00 kg |
| Packaging | Giftbox |
| Includes | 7" monitor, GT14SD camera, 6m input harness, removable sunshade, IR remote (CR2025 battery), adjustable metal U-bracket, 4× U-bracket screws, user manual |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Universal — commercial vehicles, 4WDs, trucks, industrial and construction equipment (12V/24V)
Goes Well With:
- Gator GT50L or GT18AHD additional cameras (for 2nd and 3rd video inputs)
- Gator GTSM1 windscreen suction mount (sold separately)
- Gator GRCANFLT CANBUS filter (if installing in a CANBUS vehicle)
Frequently Asked Questions
Does this kit include image flip and mirror image?
Yes — the GT700SD is one of the few Gator monitors in this range that supports both image flip (selectable) and reverse mirror image. This makes it more versatile than the GRV43KT, GRV50KT, and GT43OEM monitors which do not have this feature.
Can I add more cameras to this system?
Yes. The GT700SD monitor has three video inputs — the included camera uses one, leaving two free for additional cameras such as a second rear camera, side cameras, or a front camera.
Is this kit suitable for 24V commercial trucks?
Yes. Both the monitor and kit are 12V/24V compatible, making the GT700SD suitable for large commercial vehicles, buses, and heavy equipment alongside standard 12V cars and 4WDs.
What does high/low voltage cut-off mean?
The monitor includes built-in voltage protection that automatically cuts off if the input voltage exceeds the maximum threshold (high cut-off) or drops below the minimum threshold (low cut-off) — protecting the monitor and connected cameras from damage caused by voltage spikes or battery drain.
The features say IP69K but the spec says IP68 — which is correct?
There is a conflict in the supplier data. The specification table confirms IP68. Contact the F.A.E. team to confirm the camera's IP rating before purchasing if this is a critical requirement for your application.
