Gator GT70SDTK 7" Commercial Grade Dash Mount Display Dual Reverse Camera Trailer Kit
Gator GT70SDTK 7" Commercial Grade Dual Reverse Camera Kit for Towing

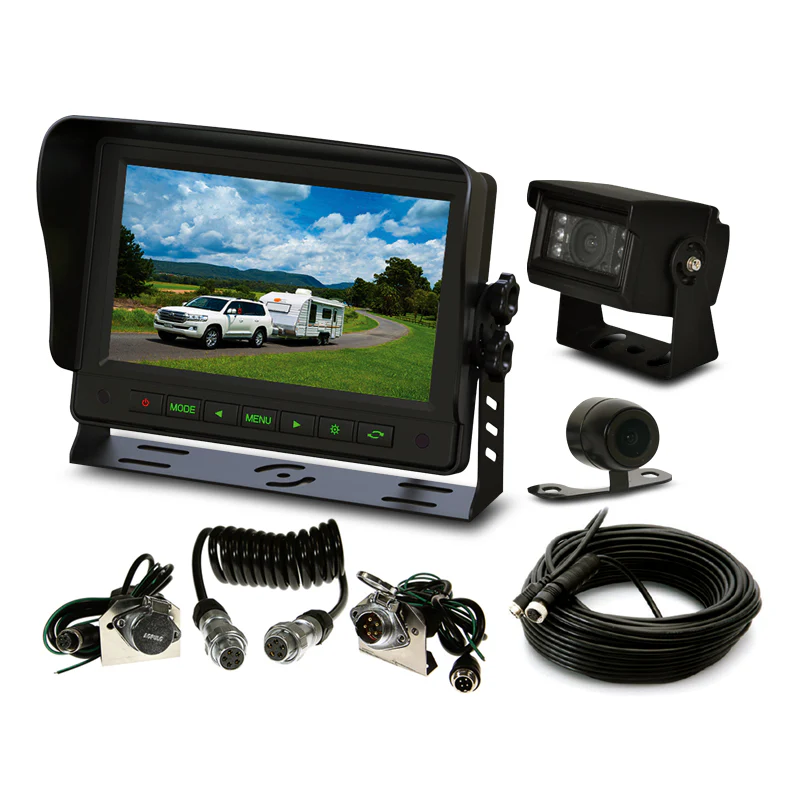

A complete towing-specific reverse camera kit 7-inch commercial monitor, vehicle registration plate camera, heavy duty trailer camera, curly trailer cable, and easy connect/disconnect trailer connectors. Suits caravans, trailers, and horse floats. 12/24V.
Product Overview
The Gator GT70SDTK is a complete commercial grade reverse camera kit specifically designed for towing it includes two cameras, a 7-inch commercial display, trailer connection cables, and a curly cable for the trailer, making it a purpose-built solution for vehicles towing caravans, trailers, and horse floats.
Camera 1 (vehicle): The G354C compact butterfly mount camera mounts on the rear of the towing vehicle via a flexible bracket IP67 rated, 120-degree CMOS, PAL, 0.2 lux minimum illumination. No IR LEDs.
Camera 2 (trailer): The GT14SD compact heavy duty camera mounts on the rear of the trailer via a U-shaped bracket IP68 rated, 120-degree CMOS, PAL, 0 lux minimum illumination, 10 infrared LEDs for night vision.
The trailer camera connects to the vehicle via easy connect/disconnect trailer connectors and a curly cable, allowing the trailer to be disconnected and reconnected quickly. Three video inputs on the monitor allow a third camera to be added if needed.
Battery safety note: The IR remote includes a CR2025 coin cell battery. Keep out of reach of children.
Features & Benefits
- Purpose-built for towing — two cameras (vehicle + trailer)
- Easy connect/disconnect trailer cable connectors for quick attachment
- Curly cable — expands and contracts with towing flexibility
- 7-inch commercial grade monitor, 800×480, 350cd
- Image flip and reverse (mirror) image supported
- Triple video input — add a third camera
- PROLINK II dustproof and waterproof connections throughout
- IP67 vehicle camera, IP68 trailer camera
- 10 IR LEDs on trailer camera for 0 lux night vision
- 12V/24V compatible — 4WDs, light commercial vehicles, cars
Technical Specs
Monitor:
| Specification | Detail |
|---|---|
| Monitor Size | 7.0 inch |
| Mount Type | Adjustable metal bracket |
| Resolution | 800(H) × 480(V) |
| Brightness | 350 candela |
| AHD | No |
| Input Voltage | 12V/24V |
| Video Inputs | 3 (PROLINK II) |
| Display Modes | Single |
| Image Flip | Yes |
| Reverse Mirror Image | Yes |
| Video Standard | PAL/NTSC |
| Image Adjustment | Brightness, contrast, saturation |
| Connection Type | PROLINK II |
| Monitor Dimensions | 129mm (H) × 195mm (W) × 30mm (D) |
| Monitor & Bracket | 156mm (H) × 215mm (W) × 73mm (D) |
Camera 1 — Vehicle (G354C):
| Specification | Detail |
|---|---|
| Mount Type | Surface mount with flexible bracket |
| Lens Angle | 120 degrees |
| Image Sensor | CMOS |
| Video Standard | PAL |
| IP Rating | IP67 |
| Input Voltage | 12V |
| Minimum Illumination | 0.2 lux |
| LEDs | None |
| Camera Connector | PROLINK II (via 1.5m Micro DIN to PROLINK II adapter) |
| Cable Length | 500mm (camera only, without adapter) |
| Camera Dimensions | 43mm (H) × 70mm (W) × 58mm (L) |
Camera 2 — Trailer (GT14SD):
| Specification | Detail |
|---|---|
| Mount Type | Surface mount — U-shaped bracket |
| Lens Angle | 120 degrees |
| Image Sensor | CMOS |
| Video Standard | PAL |
| IP Rating | IP68 |
| Input Voltage | 12V |
| Minimum Illumination | 0 lux (infrared) |
| LEDs | 10 × infrared |
| Camera Connector | PROLINK II |
| Cable Length | 400mm |
| Camera Dimensions | 42mm (H) × 52mm (W) × 55mm (L) |
Kit:
| Specification | Detail |
|---|---|
| Connection Type | Wired (PROLINK II) |
| Includes | 7" monitor, GT14SD trailer camera, G354C vehicle camera, 1.5m Micro DIN to PROLINK II adapter, 6m input harness, 2× trailer cable connectors with brackets, curly cable, 10m PROLINK II extension cable, adjustable metal bracket, 4× thumbscrews, removable sunshade, IR remote (CR2025), user manual |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Universal — suitable for any 12V/24V towing vehicle with a caravan, trailer, or horse float
Goes Well With:
- Gator GTSM1 windscreen suction mount (sold separately)
- Third camera (for the spare third PROLINK II input)
- Gator GRCANFLT CANBUS filter (for CANBUS towing vehicles)
Frequently Asked Questions
How does the trailer camera connect to the vehicle monitor?
The trailer camera connects via a curly cable and two easy connect/disconnect trailer connectors — one at the vehicle end and one at the trailer. This allows the trailer to be unhitched and reconnected quickly without re-wiring, and the curly cable expands and contracts with the movement between vehicle and trailer.
Does the vehicle camera have night vision?
No. The G354C vehicle camera does not include IR LEDs and has a minimum illumination of 0.2 lux — it requires some ambient light for clear vision. The GT14SD trailer camera has 10 infrared LEDs and operates at 0 lux for full night vision — which is more important for the trailer rear view.
Can a third camera be added to this kit?
Yes. The 7-inch monitor has three PROLINK II video inputs — two are used by the vehicle and trailer cameras, leaving one spare for an additional camera such as a side camera.
What is the difference between the GT70SDTK and the GT700SD?
Both use the same 7-inch monitor (800×480, 350cd, PROLINK II). The GT700SD is a standard single-camera kit. The GT70SDTK is a towing-specific dual-camera kit that adds the trailer camera, curly cable, trailer connectors, and a second harness — a purpose-built complete towing solution.
Is this kit suitable for 24V trucks?
Yes. The monitor is 12V/24V compatible, making the GT70SDTK suitable for larger commercial towing vehicles. The cameras are 12V — confirm 12V availability at the trailer connection points in 24V vehicle applications.
