Gator GX5HDKT High-Res 5" Monitor with Stealth Mount Reversing Camera
Gator GX5HDKT 5" 800cd Super-Bright Monitor with Stealth Plate Mount Camera Kit

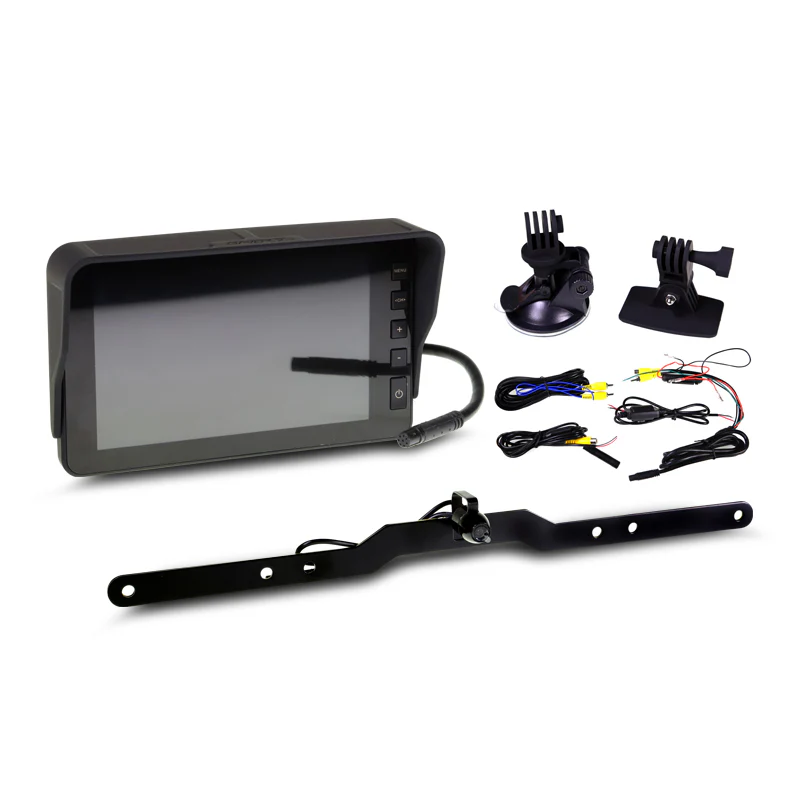

A premium passenger car reverse camera kit featuring an 800cd super-bright 5-inch widescreen monitor and stealth registration plate mount camera CANBUS noise filter, windscreen suction and adhesive dash mounts included.
Product Overview
The Gator GX5HDKT is a complete reverse camera kit from the GX Series, designed for cars, 4WDs, and small vans. The standout feature is the 800cd display brightness significantly brighter than most reversing monitors, providing a clearly visible image even in direct sunlight.
The kit includes a stealth registration plate mount camera that hides entirely behind any standard Australian registration plate no drilling required, no visible hardware. The kit also includes a CANBUS noise filter to address interference in modern CANBUS vehicles.
Two mounting options are provided for the monitor a windscreen suction mount and a flexible adhesive surface mount for flexible installation in any vehicle. Two guideline modes are selectable on the monitor.
Note on mirror image: The GX5HDKT monitor does not support reverse (mirror) image the camera outputs in standard (non-mirrored) rear view orientation.
Features & Benefits
- 800cd super-bright 5-inch widescreen monitor — clearly visible in direct sunlight
- Stealth registration plate mount camera — no drilling, invisible mounting hardware
- CANBUS noise filter included
- Two monitor mounting options: windscreen suction and flexible adhesive surface mount
- Two guideline modes
- Two video inputs
- PAL/NTSC auto-switching
- Reverse trigger wire on camera cable
- Removable sunshade (pre-installed on monitor)
- Complete cable kit included
Technical Specs
Monitor:
| Specification | Detail |
|---|---|
| Display Size | 5 inch (diagonal) |
| Mounting Options | Windscreen suction mount and adhesive surface mount (both included) |
| Resolution | 800(H) × 480(V) |
| Brightness | 800 candela |
| Aspect Ratio | 16:9 |
| Input Voltage | 12V |
| Video Inputs | 2 (RCA) |
| Video Triggers | 1 |
| Video Standard | PAL/NTSC auto-switching |
| Guideline Modes | 2 |
| Reverse Mirror Image | No |
| Image Adjustment | Brightness, contrast, saturation |
| Monitor Dimensions | 85mm (H) × 140mm (W) × 15mm (D) |
Camera:
| Specification | Detail |
|---|---|
| Mount Type | Stealth numberplate bracket |
| Camera Type | Rear view |
| Lens Angle | 120° horizontal / 60° vertical |
| Image Sensor | CMOS |
| Parking Gridlines | No (guideline modes on monitor) |
| Video Standard | PAL |
| IP Rating | IP67 |
| Input Voltage | 12V |
| Minimum Illumination | 0.2 lux |
| LEDs | None |
| Camera Connector | Micro DIN |
| Video Cable Length | 5.5m |
| Reverse Trigger on Cable | Yes |
| Camera Dimensions | 15mm (H) × 15mm (W) × 21mm (L) |
| Camera & Bracket | 85mm (H) × 365mm (W) × 35mm (L) |
Kit:
| Specification | Detail |
|---|---|
| Includes | 5" monitor, stealth plate camera, windscreen suction mount, flexi adhesive surface mount, thumbscrew, removable sunshade (pre-installed), 1.6m main input harness, 5.5m RCA video harness, 1.8m camera power harness with Micro DIN to RCA adaptor, 1m CANBUS filter harness, user manual |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Universal — suitable for cars, 4WDs, and small trucks and vans with centrally mounted registration plates
Goes Well With:
- Second camera (for the spare second RCA video input)
- Gator GRCANFLT standalone CANBUS filter (if additional filtering is needed)
Frequently Asked Questions
Why is 800cd brightness significant for a reversing monitor?
Most aftermarket reversing monitors are rated at 300–500cd. At 800cd, the GX5HDKT's display is significantly brighter — making it clearly readable in direct sunlight conditions where lower-brightness monitors appear washed out. This is particularly useful for utes and 4WDs that operate in bright outdoor environments.
Does the camera require drilling for installation?
No. The stealth registration plate mount hides behind any standard Australian registration plate — all hardware is behind the plate and invisible from outside. No additional holes are required.
Does the monitor support a mirrored reverse image?
No. The GX5HDKT monitor does not support a reverse (mirror) image. The camera outputs in standard rear view orientation. This is consistent with other Gator passenger car monitors in this range.
Does the kit include a CANBUS filter?
Yes. A 1m CANBUS noise filter harness is included in the kit — installed inline in the camera circuit to reduce or eliminate interference experienced in CANBUS-equipped vehicles.
Can a second camera be added to this system?
Yes. The GX5HDKT monitor has two RCA video inputs — a second camera (such as a front view camera) can be added and used via the second input.
