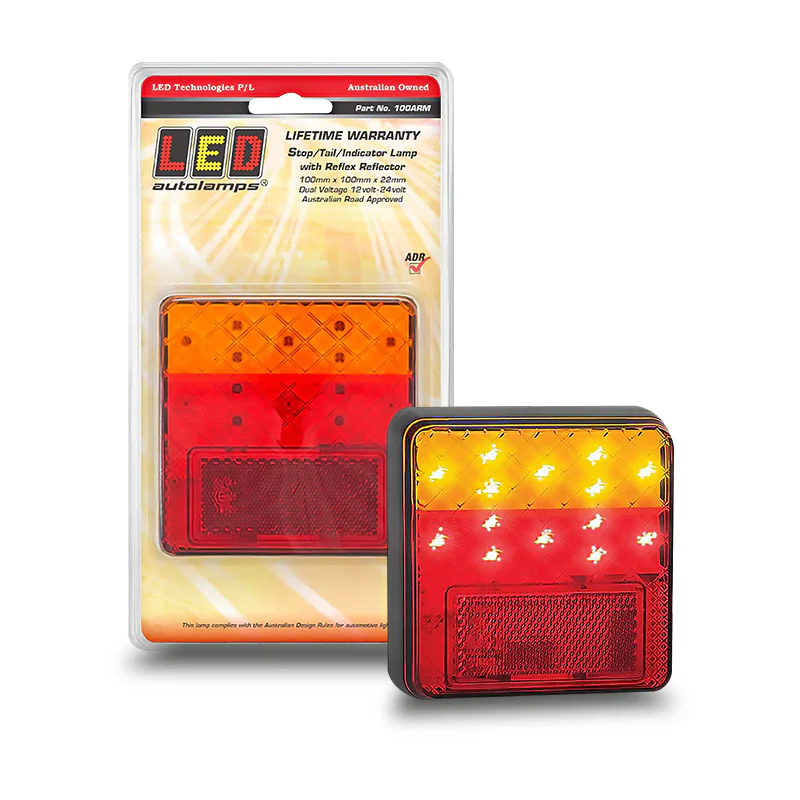

LED Autolamps 100ARM Multi Volt Stop/Tail/Indicator Lamp With Reflex Reflectors Grey Base Blister
ADR Approved 3-in-1 LED Trailer Lamp with Diamond Lens and Built-In Reflex Reflectors 5-Year Warranty
Product Overview
The LED Autolamps 100ARM is a multi-voltage stop, tail, and indicator lamp built around the compact 100 series square form factor, combining all three functions with built-in reflex reflectors in a single low-profile unit. Measuring 100mm x 100mm x 22mm with a 70mm centre-to-centre mount, it's designed for surface mounting on trailers, caravans, and light commercial vehicles.
The diamond pattern lens adds a premium finish while enhancing light output, and the grey base suits a wide range of trailer body finishes. Pre-wired and ADR approved across all three functions with individual CRN certifications for stop/tail, indicator, and reflector the 100ARM is a thoroughly compliant, ready-to-install trailer lamp backed by a 5-year warranty.
Features & Benefits
- Stop, tail, and indicator in one lamp — combines three rear lighting functions in a single compact unit, reducing wiring complexity and installation time
- Built-in reflex reflectors — passive reflective element integrated into the lamp for additional rear visibility compliance
- Diamond pattern lens — enhances LED output and gives the lamp a premium appearance on trailer and caravan bodies
- Low profile design — 22mm depth keeps the lamp sitting flush for a clean, integrated finish
- ADR approved across all functions — individually certified: stop/tail CRN37986, indicator CRN37985, reflector CRN38102
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- 12–24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- Pre-wired, surface mount — ready to install straight out of the pack with 70mm centre-to-centre bracket spacing
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 100ARM |
| Lamp Type | Stop / Tail / Indicator |
| Voltage Range | 12V – 24V |
| Dimensions | 100mm x 100mm x 22mm |
| Mount Centre-to-Centre | 70mm |
| Stop Current Draw | 0.13A @ 13.8V |
| Tail Current Draw | 0.04A @ 13.8V |
| Indicator Current Draw | 0.12A @ 13.8V |
| Mounting | Surface mount |
| Connector | Pre-wired |
| Base Colour | Grey |
| Lens | Diamond pattern |
| Protection Rating | IP67 |
| Stop/Tail Compliance | ADR — CRN37986 |
| Indicator Compliance | ADR — CRN37985 |
| Reflector Compliance | ADR — CRN38102 |
| Warranty | 5 years |
| Weight | 0.2 kg |
Compatible With / Goes Well With
- Trailers, caravans, and light commercial vehicles
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ADR-approved stop/tail/indicator lighting
- LED Autolamps 100AM indicator lamp and 100RM stop/tail lamp (same 100 series form factor)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 100ARM approved for road use in Australia?
Yes. The 100ARM holds individual ADR certifications across all three functions — stop/tail (CRN37986), indicator (CRN37985), and reflector (CRN38102) — meeting Australian Design Rules for legal on-road use.
What functions does the 100ARM cover?
It combines stop, tail, and indicator functions along with built-in reflex reflectors, making it a complete rear lighting solution for trailers and caravans in a single lamp.
What is the IP rating on the 100ARM?
The 100ARM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and caravan mounting.
What is the centre-to-centre mounting distance?
The 100ARM has a 70mm centre-to-centre mount spacing. Confirm this measurement against your panel or bracket before installation.
What warranty does the 100ARM carry?
The 100ARM is backed by a 5-year warranty from LED Autolamps, reflecting the quality and durability of the premium 100 series design.
Weight
0.2 kg
Original: $47.10
-65%$47.10
$16.48Product Information
