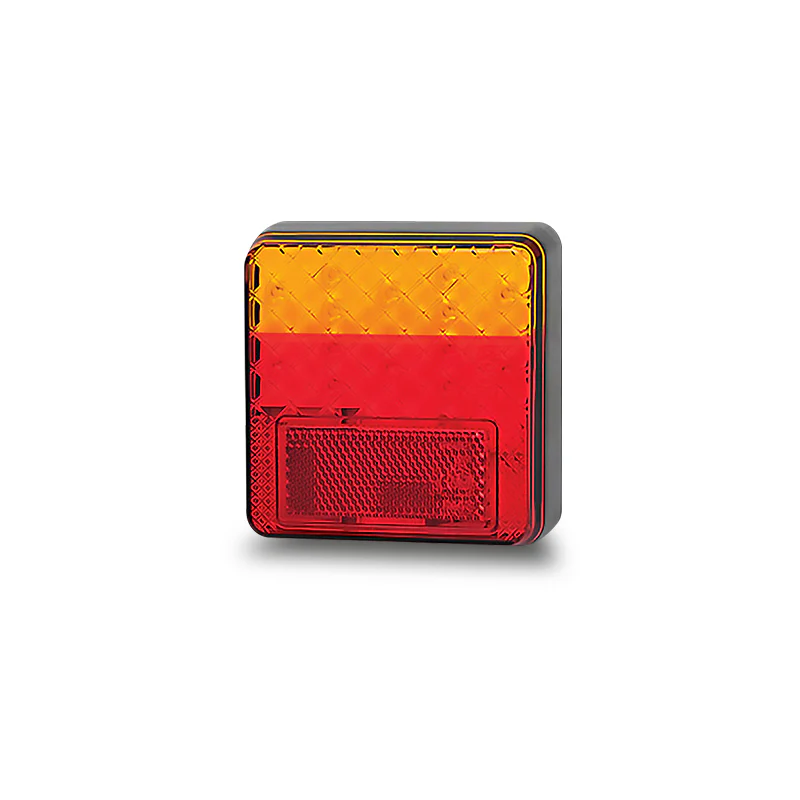

LED Autolamps 100BAR 12V Stop/Tail/Indicator Lamp With Reflex Reflector
12V ADR Approved Stop/Tail/Indicator LED Lamp with Diamond Lens and Built-In Reflex Reflector
Product Overview
The LED Autolamps 100BAR is a 12V stop, tail, and indicator lamp with built-in reflex reflectors, built around the compact 100 series square form factor. Measuring 100mm x 100mm x 22mm with a 70mm centre-to-centre surface mount, it suits trailers, caravans, and light vehicles where a clean, low-profile rear combination lamp is required.
The diamond lens pattern enhances LED output while giving the lamp a sharp, premium finish. Pre-wired and ADR approved with individual CRN certifications across stop/tail, indicator, and reflector functions, the 100BAR is a fully compliant, ready-to-install lamp backed by a 5-year warranty.
Features & Benefits
- Stop, tail, and indicator in one lamp — combines three rear lighting functions in a single compact unit, simplifying wiring and installation
- Built-in reflex reflectors — passive reflective element integrated into the lamp for additional compliance and rear visibility
- Diamond pattern lens — enhances LED output and delivers a premium appearance on trailer and caravan bodies
- Low-profile design — 22mm depth sits flush for a clean, integrated finish on trailer panels
- ADR approved across all functions — individually certified: stop/tail CRN37986, indicator CRN37985, reflector CRN38102
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- Pre-wired, surface mount — ready to install straight out of the pack with 70mm centre-to-centre bracket spacing
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 100BAR |
| Lamp Type | Stop / Tail / Indicator |
| Voltage | 12V |
| Dimensions | 100mm x 100mm x 22mm |
| Mount Centre-to-Centre | 70mm |
| Stop Current Draw | 0.13A @ 13.8V |
| Tail Current Draw | 0.04A @ 13.8V |
| Indicator Current Draw | 0.12A @ 13.8V |
| Mounting | Surface mount |
| Connector | Pre-wired |
| Lens | Diamond pattern |
| Protection Rating | IP67 |
| Stop/Tail Compliance | ADR — CRN37986 |
| Indicator Compliance | ADR — CRN37985 |
| Reflector Compliance | ADR — CRN38102 |
| Warranty | 5 years |
| Weight | 0.2 kg |
Compatible With / Goes Well With
- 12V trailers, caravans, and light vehicles
- Trailer builds requiring ADR-approved stop/tail/indicator lighting
- LED Autolamps 100AM indicator lamp and 100RM stop/tail lamp (same 100 series form factor)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 100BAR approved for road use in Australia?
Yes. The 100BAR holds individual ADR certifications across all three functions — stop/tail (CRN37986), indicator (CRN37985), and reflector (CRN38102) — meeting Australian Design Rules for legal on-road use.
What functions does the 100BAR cover?
It combines stop, tail, and indicator functions with built-in reflex reflectors, delivering a complete rear lighting solution for trailers and caravans in a single compact lamp.
What is the IP rating on the 100BAR?
The 100BAR is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and caravan mounting.
What is the centre-to-centre mounting distance?
The 100BAR has a 70mm centre-to-centre mount spacing. Confirm this measurement against your panel or bracket before installation.
What warranty does the 100BAR carry?
The 100BAR is backed by a 5-year warranty from LED Autolamps, reflecting the quality and durability of the 100 series design.
Weight
0.2 kg
