LED Autolamps 113RMG 12/24V LED Stop/Tail Lamp Red Lens Round Grommet/Plug
ECE Approved 12/24V Round Stop/Tail Lamp with Red Lens, Grommet and Plug IP67, 5-Year Warranty
Product Overview

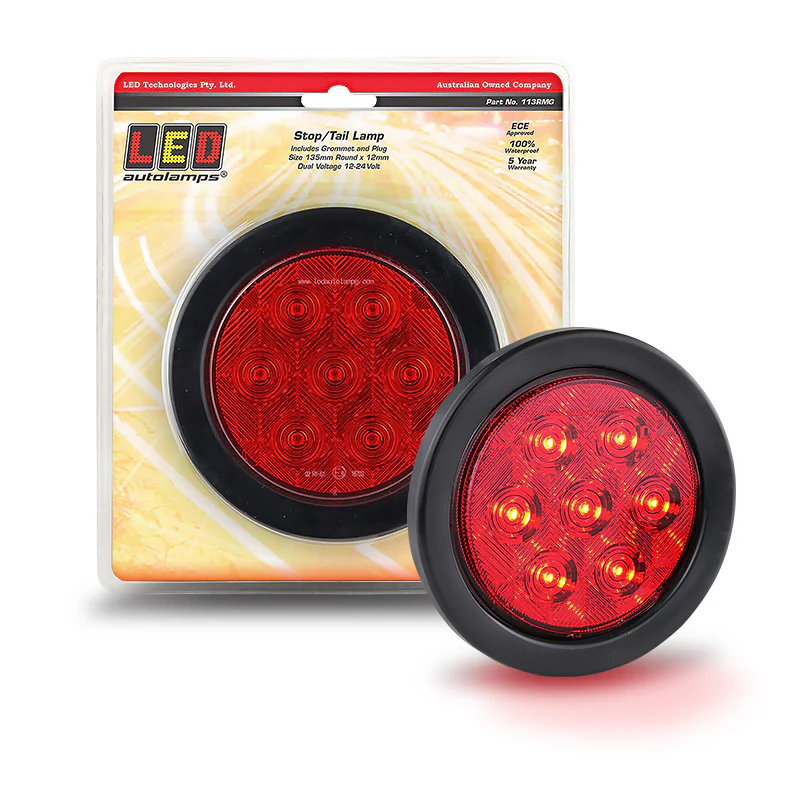

The LED Autolamps 113RMG is a 12/24V round stop/tail lamp with a red acrylic lens, designed for flush recessed mounting on trailers, trucks, and commercial vehicles. At 113mm in diameter with a 135mm x 12mm grommet mount, it delivers a clean, sealed fit with a grommet and 3-pin plug and cable included in the blister pack ready to install straight out of the box.
ECE approved under ECE R1-S1-E9-02 16703 and rated IP67, the 113RMG draws 0.23A on stop and 0.08A on tail at 13.8V. Backed by a 5-year warranty and also available in bulk pack, it's a natural stop/tail companion to the 113AMG indicator lamp.
Features & Benefits
- Red acrylic lens — delivers correct red stop/tail output with a durable, impact-resistant lens material
- Grommet and 3-pin plug with cable included — complete sealed installation kit supplied in the blister pack; no additional hardware required
- Flush recessed mount — low-profile design sits flush with the panel for a clean, integrated finish
- ECE approved — certified under ECE R1-S1-E9-02 16703 for compliance with international road approval standards
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- 5-year warranty — backed by LED Autolamps' full warranty programme
- Bulk pack available — for installers fitting multiple vehicles or trailer builds
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 113RMG |
| Lamp Type | Stop / Tail |
| Lens Colour | Red |
| Lens Material | Acrylic |
| Voltage Range | 12V – 24V |
| Lamp Diameter | 113mm |
| Grommet Size | 135mm x 12mm |
| Stop Current Draw | 0.23A @ 13.8V |
| Tail Current Draw | 0.08A @ 13.8V |
| Mounting | Flush recessed |
| Connector | 3-pin plug and cable |
| Included Accessories | Grommet, plug |
| Protection Rating | IP67 |
| Compliance | ECE R1-S1-E9-02 16703 |
| Warranty | 5 years |
Compatible With / Goes Well With
- Trailers, trucks, and commercial vehicles requiring flush-mount stop/tail lamps
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ECE-approved stop/tail lighting
- LED Autolamps 113AMG indicator lamp (same 113mm round recessed form factor and grommet size)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 113RMG approved for road use in Australia?
Yes. The 113RMG is ECE approved under certification ECE R1-S1-E9-02 16703, meeting international road approval standards accepted for on-road use in Australia.
What accessories are included with the 113RMG?
The blister pack includes a grommet and 3-pin plug with cable, providing everything needed for a complete, sealed flush recessed installation.
What is the IP rating on the 113RMG?
The 113RMG is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
Does the 113RMG work on both 12V and 24V systems?
Yes. It operates across 12V to 24V, making it compatible with light vehicles as well as 24V heavy transport applications without any modification.
What warranty does the 113RMG carry?
The 113RMG is backed by a 5-year warranty from LED Autolamps.
