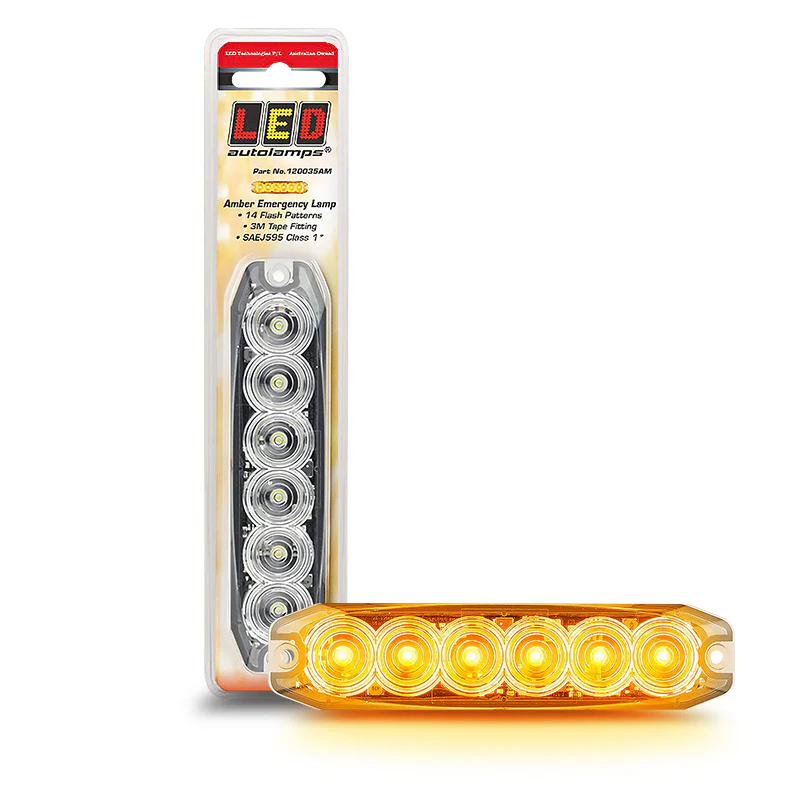

LED Autolamps 120035AM 12/24V LED Amber Emergency Light Flash Patterns With Sync Wire Blister Pack
SAE J595 Class 1 Amber Emergency Lamp 6x3W LEDs, 14 Flash Patterns, Sync Up to 20 Lamps
Product Overview
The LED Autolamps 120035AM is a 12/24V amber emergency warning lamp powered by 6 x 3W LEDs a significant step up in output over standard SMD emergency lamps. Measuring 131mm x 30mm x 8mm with a clear lens, it delivers 120 flashes per minute in single, double, and quad flash configurations across 14 selectable patterns.
The synchronising wire allows up to 20 lamps to be linked and flash in unison, making it ideal for large vehicle setups, convoys, and professional emergency lighting rigs. SAE J595 Class 1 certified, IP67 rated, and supplied in blister pack with 3M tape and screw mounting options. Backed by a 3-year warranty.
Features & Benefits
- 6 x 3W high-power LEDs — delivers substantially greater output than standard SMD emergency lamps for maximum warning visibility
- 14 selectable flash patterns — more pattern options than the 120033/120034 series, including single, double, and quad flash at 120 FPM
- Synchronise up to 20 lamps — the synchronising wire links up to 20 units to flash in unison — suited to large vehicle builds and convoy applications
- SAE J595 Class 1 certified — meets the highest SAE classification for vehicle warning lamps
- IP67 rated — fully sealed against dust and water immersion, built for exposed vehicle-mounted applications
- Clear lens with amber LEDs — clean appearance when inactive; amber warning output when energised
- 3M tape and screw fitting — dual mounting options for adhesive or screw-fixed installation
- Ultra-slim 8mm profile — 131mm x 30mm footprint suits tight installation spaces on vehicle bodies and panels
- 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- 3-year warranty — backed by LED Autolamps' warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 120035AM |
| Lamp Type | Emergency Warning |
| LED Configuration | 6 x 3W |
| LED Colour | Amber |
| Lens Colour | Clear |
| Voltage Range | 12V / 24V |
| Dimensions | 131mm x 30mm x 8mm |
| Current Draw | 0.29A @ 13.8V |
| Flash Patterns | 14 selectable |
| Flash Rate | 120 FPM (single / double / quad) |
| Sync Capacity | Up to 20 lamps |
| Synchronising Wire | Included |
| Mounting | 3M tape / screw |
| Compliance | SAE J595 Class 1 |
| Protection Rating | IP67 |
| Packaging | Blister pack |
| Warranty | 3 years |
Compatible With / Goes Well With
- Emergency, warning, and service vehicles requiring SAE J595 Class 1 high-power amber warning lighting
- 12V light commercial and passenger vehicles
- 24V trucks, plant equipment, and heavy transport
- Multi-lamp synchronised emergency lighting setups of up to 20 units
- LED Autolamps 120033AM and 120034AM amber emergency lamps (same series family)
- LED Autolamps wiring harnesses and emergency lighting accessories
Frequently Asked Questions
How does the 120035AM differ from the 120033AM and 120034AM?
The 120035AM uses 6 x 3W high-power LEDs rather than SMD LEDs, is physically larger at 131mm vs 89mm, offers 14 flash patterns vs 11, and can synchronise up to 20 lamps — making it a higher-output option for more demanding applications.
How many lamps can be synchronised with the 120035AM?
Up to 20 lamps can be linked via the synchronising wire to flash in the same pattern simultaneously — suited to large vehicle builds, convoy lighting, and professional emergency rigs.
What flash patterns and rates does the 120035AM support?
It offers 14 selectable flash patterns at 120 flashes per minute, covering single, double, and quad flash configurations.
What is the IP rating on the 120035AM?
The 120035AM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed vehicle-mounted applications.
What warranty does the 120035AM carry?
The 120035AM is backed by a 3-year warranty from LED Autolamps.
