LED Autolamps 125BARML 12-24V Stop Tail Indicator Assy LH
ADR Approved 128 LED Left-Hand Rear Combination Assembly for Medium Trucks IP67, 5-Year Warranty
Product Overview

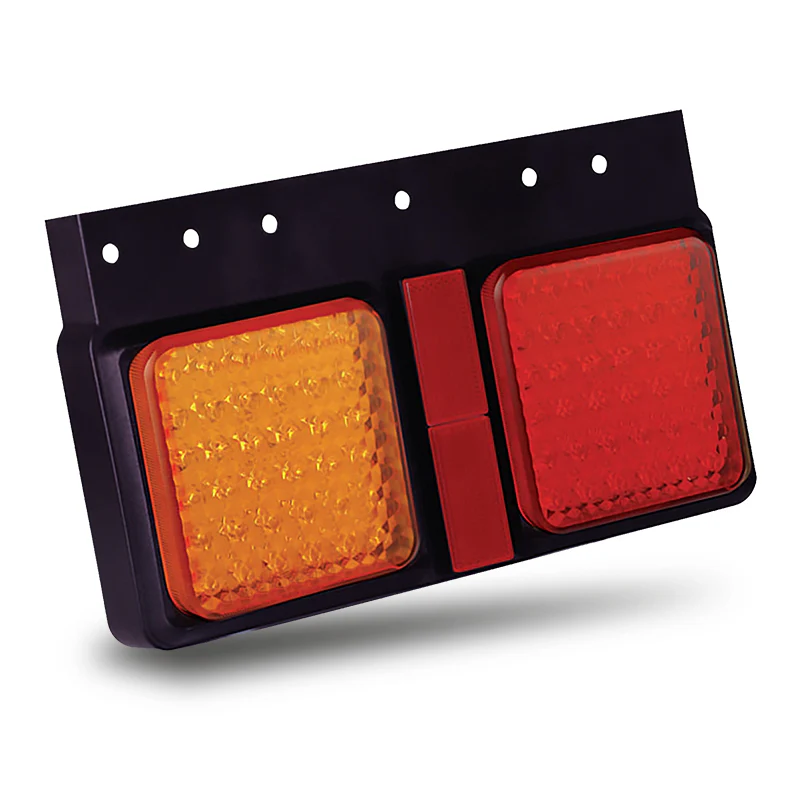

The LED Autolamps 125BARML is a 12/24V left-hand rear combination lamp assembly delivering stop, tail, indicator, and reflector functions across 128 LEDs purpose-built for medium trucks requiring a robust, road-legal rear lighting solution. Measuring 340mm x 200mm x 60mm, it mounts horizontally using top or back mounting holes with wiring routed through the rear, and comes with a 40cm cable lead.
Carrying a comprehensive set of ADR and CTA approvals across all functions including CRN certifications for stop/tail (ADR 49/00 CRN33403), indicator (ADR 6/00 2A CRN33165), and reflector (ADR 47/00 CRN38102) the 125BARML is one of the most thoroughly compliant rear combination lamps in the LED Autolamps range. Backed by a 5-year warranty.
Features & Benefits
- Left-hand specific — designed for the left side of the vehicle; pair with the 125BARMR right-hand assembly for a complete rear lighting install
- 128 LEDs across four functions — high LED count delivers strong, consistent output across stop, tail, indicator, and integrated reflector
- Designed for medium trucks — 340mm x 200mm form factor and mounting system engineered specifically for medium truck body applications
- Comprehensive ADR and CTA approvals — individually certified across stop/tail, indicator, and reflector functions with full CRN and CTA reference numbers
- IP67 rated — fully sealed against dust and water immersion, built for demanding transport environments
- 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- 40cm pre-wired cable — ready to connect; wiring routes through the rear of the assembly for a clean installation
- Top or back mounting — refer to ADR 13/00 for correct mounting instructions
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 125BARML |
| Side | Left Hand |
| Lamp Type | Stop / Tail / Indicator / Reflector |
| LED Quantity | 128 |
| Voltage Range | 12V – 24V |
| Dimensions | 340mm x 200mm x 60mm |
| Cable Length | 400mm |
| Stop Current Draw | 0.42A @ 13.8V / 0.26A @ 28V |
| Tail Current Draw | 0.04A @ 13.8V / 0.06A @ 28V |
| Indicator Current Draw | 0.43A @ 13.8V / 0.26A @ 28V |
| Mounting | Top or back mount (refer ADR 13/00) |
| Protection Rating | IP67 |
| Stop/Tail Approval | ADR 49/00 — CRN33403 |
| Indicator Approval | ADR 6/00 Cat 2A — CRN33165 |
| Reflector Approval | ADR 47/00 — CRN38102 |
| CTA Approval (Stop/Tail/Ind) | ADR 49/00, 6/00 Cat 2A — CTA-060220 |
| CTA Approval (Reflector) | ADR 47/00 — CTA-060056 |
| Warranty | 5 years |
Compatible With / Goes Well With
- Medium trucks requiring ADR-approved rear combination lighting
- 12V light commercial vehicles and 24V heavy transport
- LED Autolamps 125BARMR right-hand assembly (matching right-hand pair)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 125BARML approved for road use in Australia?
Yes. The 125BARML holds full ADR and CTA approvals across all functions — stop/tail (ADR 49/00 CRN33403), indicator (ADR 6/00 Cat 2A CRN33165), and reflector (ADR 47/00 CRN38102) — meeting Australian Design Rules for legal on-road use.
What is the right-hand pair for the 125BARML?
The matching right-hand assembly is the LED Autolamps 125BARMR. Both should be fitted together for a complete and compliant rear lighting installation.
How is the 125BARML mounted?
It mounts horizontally using top or back mounting holes, with wiring routed through the rear of the assembly. Refer to ADR 13/00 for correct mounting instructions and compliance requirements.
What functions does the 125BARML cover?
It combines stop, tail, indicator, and reflector functions in a single assembly — providing a complete rear lighting solution for medium trucks in a single unit per side.
What warranty does the 125BARML carry?
The 125BARML is backed by a 5-year warranty from LED Autolamps.
