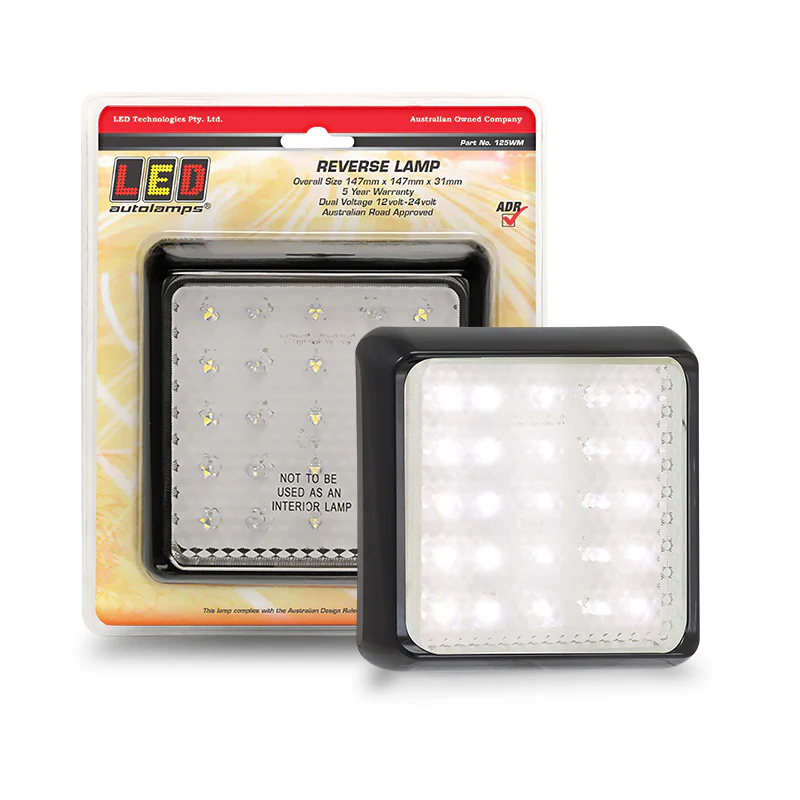

LED Autolamps 125WM 12/24V Reversing Lamp with 25 White LEDs
ADR Approved 25 LED Square Reversing Lamp with Clip-In Replaceable Lens 5-Year Warranty
Product Overview
The LED Autolamps 125WM is a 12/24V square reversing lamp fitted with 25 white LEDs, surface mounted and pre-wired in the same 147mm x 147mm x 31mm 125 series form factor as the 125RM stop/tail and 125AM indicator lamps. Designed to complete a full matched rear lighting set across trailers, trucks, caravans, and tray bodies.
The clip-in replaceable lens allows for quick lens swaps without replacing the full housing. ADR road approved and rated IP67, the 125WM is backed by a 5-year warranty.
Features & Benefits
- 25 white LEDs — delivers clear, bright reverse light output for improved visibility when reversing
- 147mm square form factor — matches the 125AM and 125RM for a fully uniform rear lighting set across all functions
- Clip-in replaceable lens — lens swaps independently from the housing, reducing replacement costs and minimising downtime when a lens is damaged
- ADR road approved — meets Australian Design Rules for legal on-road use as a reversing lamp
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- Surface mount — straightforward installation on trailer and truck body panels
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 125WM |
| Lamp Type | Reverse |
| LED Quantity | 25 white |
| Voltage Range | 12V – 24V |
| Dimensions | 147mm x 147mm x 31mm |
| Mounting | Surface mount |
| Lens | Clip-in replaceable |
| Protection Rating | IP67 |
| Compliance | ADR |
| Warranty | 5 years |
Compatible With / Goes Well With
- Trailers, caravans, trucks, and tray body applications requiring a larger-format reversing lamp
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ADR-approved reversing lighting
- LED Autolamps 125AM indicator lamp (same 125 series form factor)
- LED Autolamps 125RM stop/tail lamp (same 125 series form factor)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 125WM approved for road use in Australia?
Yes. The LED Autolamps 125WM is ADR road approved, meeting Australian Design Rules requirements for legal on-road use as a reversing lamp.
How does the 125WM fit with other 125 series lamps?
The 125WM shares the same 147mm x 147mm x 31mm form factor as the 125AM indicator and 125RM stop/tail lamps, making it a natural match for a uniform full-function rear lighting set across all three.
What does the clip-in replaceable lens mean for maintenance?
The lens clips out independently from the housing and can be replaced without swapping the entire lamp unit — saving cost and reducing installation time in the field.
What is the IP rating on the 125WM?
The 125WM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
What warranty does the 125WM carry?
The 125WM is backed by a 5-year warranty from LED Autolamps.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ADR Approved 25 LED Square Reversing Lamp with Clip-In Replaceable Lens 5-Year Warranty
Product Overview
The LED Autolamps 125WM is a 12/24V square reversing lamp fitted with 25 white LEDs, surface mounted and pre-wired in the same 147mm x 147mm x 31mm 125 series form factor as the 125RM stop/tail and 125AM indicator lamps. Designed to complete a full matched rear lighting set across trailers, trucks, caravans, and tray bodies.
The clip-in replaceable lens allows for quick lens swaps without replacing the full housing. ADR road approved and rated IP67, the 125WM is backed by a 5-year warranty.
Features & Benefits
- 25 white LEDs — delivers clear, bright reverse light output for improved visibility when reversing
- 147mm square form factor — matches the 125AM and 125RM for a fully uniform rear lighting set across all functions
- Clip-in replaceable lens — lens swaps independently from the housing, reducing replacement costs and minimising downtime when a lens is damaged
- ADR road approved — meets Australian Design Rules for legal on-road use as a reversing lamp
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- Surface mount — straightforward installation on trailer and truck body panels
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 125WM |
| Lamp Type | Reverse |
| LED Quantity | 25 white |
| Voltage Range | 12V – 24V |
| Dimensions | 147mm x 147mm x 31mm |
| Mounting | Surface mount |
| Lens | Clip-in replaceable |
| Protection Rating | IP67 |
| Compliance | ADR |
| Warranty | 5 years |
Compatible With / Goes Well With
- Trailers, caravans, trucks, and tray body applications requiring a larger-format reversing lamp
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ADR-approved reversing lighting
- LED Autolamps 125AM indicator lamp (same 125 series form factor)
- LED Autolamps 125RM stop/tail lamp (same 125 series form factor)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 125WM approved for road use in Australia?
Yes. The LED Autolamps 125WM is ADR road approved, meeting Australian Design Rules requirements for legal on-road use as a reversing lamp.
How does the 125WM fit with other 125 series lamps?
The 125WM shares the same 147mm x 147mm x 31mm form factor as the 125AM indicator and 125RM stop/tail lamps, making it a natural match for a uniform full-function rear lighting set across all three.
What does the clip-in replaceable lens mean for maintenance?
The lens clips out independently from the housing and can be replaced without swapping the entire lamp unit — saving cost and reducing installation time in the field.
What is the IP rating on the 125WM?
The 125WM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
What warranty does the 125WM carry?
The 125WM is backed by a 5-year warranty from LED Autolamps.
