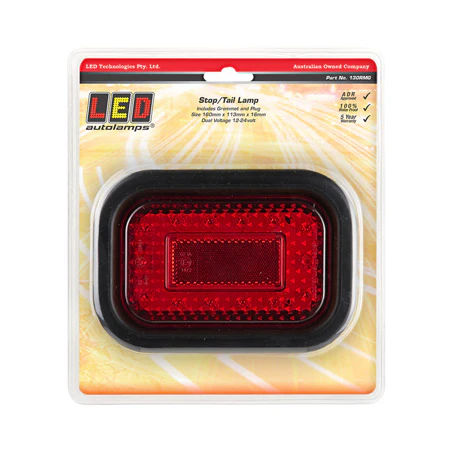

LED Autolamps 130RMG 12/24V Stop/Tail Lamp With Reflector 14 LEDs Blister Package
ADR 49/00 Approved 12/24V Stop/Tail Lamp with Reflector, Grommet and Plug 14 LEDs, IP67
Product Overview
The LED Autolamps 130RMG is a 12/24V LED stop/tail lamp with built-in reflector, supplied with a rubber grommet and plug for a complete sealed recessed installation. Fitted with 14 LEDs and measuring 109mm x 157mm x 12mm, it delivers ADR 49/00 compliant stop/tail output through a plastic base housing with the grommet ensuring a weatherproof fit in the panel cutout.
Note that the 3-pin connector is not included and must be sourced separately. Rated IP67, drawing 0.31A at 13.8V, and backed by a 5-year warranty.
Features & Benefits
- 14 LEDs — delivers bright, consistent red stop/tail output for strong rear visibility
- Built-in reflector — integrated passive reflective element for additional rear compliance and visibility
- Grommet and plug included — complete sealed installation kit for a weatherproof recessed fit straight out of the blister pack
- Flush recessed mount — sits flush with the panel for a clean, integrated finish on trailer and truck body panels
- ADR 49/00 approved — meets Australian Design Rules for legal on-road use as a stop/tail lamp
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- 3-pin plug and cable — note: 3-pin connector not supplied; must be sourced separately
- 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 130RMG |
| Lamp Type | Stop / Tail |
| LED Quantity | 14 |
| Voltage Range | 12V / 24V |
| Dimensions (Lamp) | 109mm x 157mm x 12mm |
| Current Draw | 0.31A @ 13.8V |
| Mounting | Flush recessed |
| Connector | 3-pin plug and cable (connector not supplied) |
| Included Accessories | Rubber grommet, plug |
| Base Material | Plastic |
| Protection Rating | IP67 |
| Compliance | ADR 49/00 |
| Warranty | 5 years |
| Weight | 0.5 kg |
Compatible With / Goes Well With
- Trailers, trucks, and commercial vehicles requiring flush-mount stop/tail lamps with grommet
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ADR 49/00 approved stop/tail lighting
- LED Autolamps 130AMG indicator lamp (same 130 series with grommet)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 130RMG approved for road use in Australia?
Yes. The 130RMG is ADR 49/00 approved, meeting Australian Design Rules requirements for legal on-road use as a stop/tail lamp.
What accessories are included with the 130RMG?
The blister pack includes a rubber grommet and plug for a complete, sealed recessed installation. Note that the 3-pin connector is not included and must be sourced separately.
What is the built-in reflector on the 130RMG?
The 130RMG has a passive reflector integrated into the lamp housing, adding a compliant reflective element for additional rear visibility without requiring a separate reflector unit.
What is the IP rating on the 130RMG?
The 130RMG is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
What warranty does the 130RMG carry?
The 130RMG is backed by a 5-year warranty from LED Autolamps.
Weight
0.5 kg
