LED Autolamps 130WMG LED Reverse Light With Grommet & Plug 12-24V

ADR Approved 12/24V Reverse Lamp with Grommet and Plug Recessed Mount, IP67

Product Overview

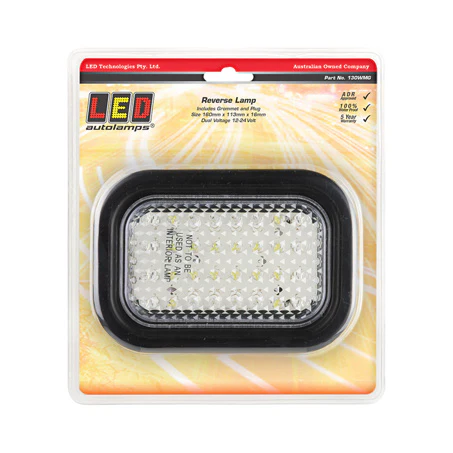

The LED Autolamps 130WMG is a 12/24V LED reverse lamp supplied with a grommet and plug for a complete, sealed recessed installation. Mounted via two screws and rated IP67, it delivers ADR-approved reverse light output for trailers, trucks, and commercial vehicles — completing the 130 series alongside the 130AMG indicator and 130RMG stop/tail lamps for a fully matched grommet-mount rear lighting set.

Drawing just 0.15A at 13.8V and backed by a 5-year warranty.

Features & Benefits

• Grommet and plug included — complete sealed installation kit for a weatherproof recessed fit straight out of the blister pack
• Recessed mount — sits flush with the panel for a clean, integrated finish on trailer and truck body panels
• 2-screw mount — secure, stable installation using two screws through the mounting panel
• ADR road approved — meets Australian Design Rules for legal on-road use as a reverse lamp
• IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
• Low current draw — 0.15A at 13.8V for efficient operation across multi-lamp trailer builds
• 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
• 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Compatible With / Goes Well With

• Trailers, trucks, and commercial vehicles requiring recessed reverse lamps with grommet
• 12V light vehicles and 24V heavy transport applications
• Trailer builds requiring ADR-approved reverse lighting
• LED Autolamps 130AMG indicator lamp (same 130 series with grommet)
• LED Autolamps 130RMG stop/tail lamp (same 130 series with grommet)
• LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 130WMG approved for road use in Australia?

Yes. The LED Autolamps 130WMG is ADR road approved, meeting Australian Design Rules requirements for legal on-road use as a reverse lamp.

What accessories are included with the 130WMG?

The pack includes a grommet and plug, providing everything needed for a complete, sealed recessed installation straight out of the pack.

How does the 130WMG complete the 130 series?

The 130WMG is the reverse lamp in the 130 grommet-mount series, pairing with the 130AMG indicator and 130RMG stop/tail lamps for a fully matched rear lighting set across all three functions.

What is the IP rating on the 130WMG?

The 130WMG is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 130WMG carry?

The 130WMG is backed by a 5-year warranty from LED Autolamps.
