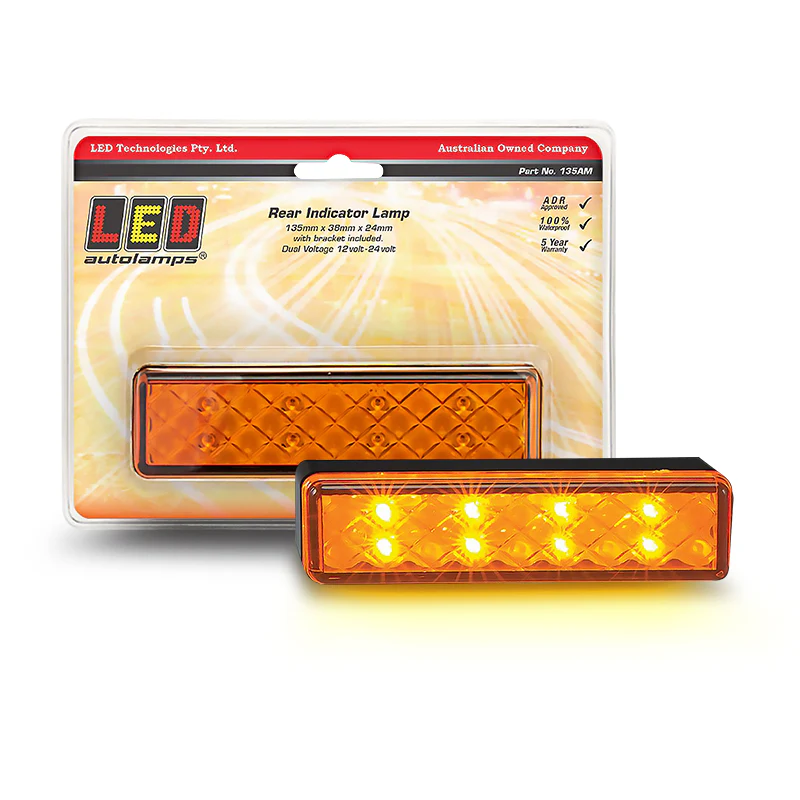

LED Autolamps 135AM MultiVolt Rear Indicator Lamp 8Square LED Blister Black Base
ADR Approved 8 Square LED Rear Indicator Lamp Black Base, Pre-Wired, IP67, 5-Year Warranty
Product Overview
The LED Autolamps 135AM is a 12/24V rear indicator lamp fitted with 8 square LEDs in a black base housing, pre-wired for surface mounting on trailers, trucks, and commercial vehicles. Sharing the same 135 series rectangular form factor as the 135RM stop/tail and 135WM reverse lamps, it delivers ADR-approved rear indicator output certified under CRN39845 and ADR CTA060176.
Drawing 0.2A and rated IP67, backed by a 5-year warranty.
Features & Benefits
- 8 square LEDs — distinctive square LED array delivers consistent amber rear indicator output matching the 135RM's visual style
- Pre-wired surface mount — ready to connect and mount straight out of the blister pack
- ADR road approved — certified under CRN39845 and ADR CTA060176 for legal on-road use as a rear indicator lamp
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- Black base — matches the 135RM and 135WM for a uniform rear lighting appearance
- Low current draw — 0.2A for efficient operation in multi-lamp trailer builds
- 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 135AM |
| Lamp Type | Rear Indicator |
| LED Configuration | 8 square LEDs |
| Voltage Range | 12V / 24V |
| Current Draw | 0.2A |
| Housing Colour | Black |
| Mounting | Surface mount |
| Connector | Pre-wired |
| Protection Rating | IP67 |
| Compliance | ADR — CRN39845 / CTA060176 |
| Packaging | Blister pack |
| Warranty | 5 years |
| Weight | 0.2 kg |
Compatible With / Goes Well With
- Trailers, trucks, and commercial vehicles requiring rectangular surface-mount rear indicator lamps
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ADR-approved rear indicator lighting
- LED Autolamps 135RM stop/tail lamp (same 135 series form factor)
- LED Autolamps 135WM reverse lamp (same 135 series form factor)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 135AM approved for road use in Australia?
Yes. The 135AM is ADR approved under CRN39845 and CTA060176, meeting Australian Design Rules requirements for legal on-road use as a rear indicator lamp.
How does the 135AM complete the 135 series rear lighting set?
The 135AM is the rear indicator lamp in the 135 series, complementing the 135RM stop/tail and 135WM reverse lamps — all sharing the same rectangular black base form factor for a consistent rear lighting appearance.
What makes the square LED array distinctive?
The 8 square LEDs produce a distinctive, evenly spaced pattern across the lamp face that visually matches the 135RM stop/tail, giving the rear lighting set a cohesive, uniform look.
What is the IP rating on the 135AM?
The 135AM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
What warranty does the 135AM carry?
The 135AM is backed by a 5-year warranty from LED Autolamps.
