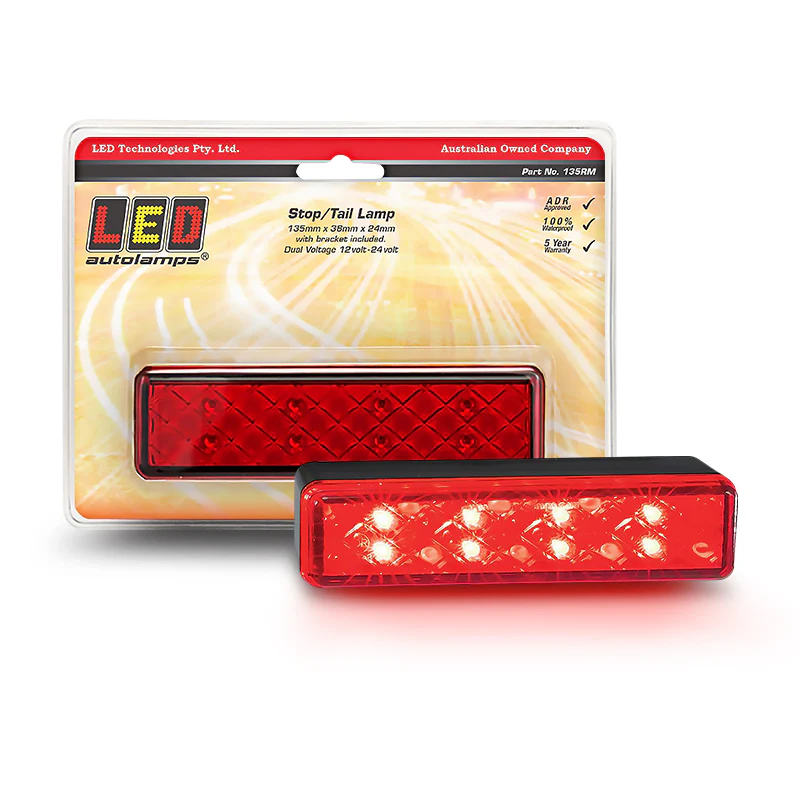

LED Autolamps 135RM Multi Volt Stop/Tail Lamp 8 Square LEDs With Black Base
ADR Approved 8 Square LED Stop/Tail Lamp Surface Mount, Black Base, IP67, 5-Year Warranty
Product Overview
The LED Autolamps 135RM is a 12/24V stop/tail lamp fitted with 8 square LEDs in a rectangular black base housing, designed for surface mounting on trailers, trucks, and commercial vehicles. Measuring 135mm x 38mm x 24mm, it shares the same compact rectangular form factor as the 135WM reverse lamp suited to builds where a matched, low-profile rear lighting set is required.
ADR road approved and rated IP67, backed by a 5-year warranty.
Features & Benefits
- 8 square LEDs — distinctive square LED array delivers strong, consistent red stop/tail output across the rectangular lamp face
- Surface mount — straightforward installation on trailer and truck body rear panels
- ADR road approved — meets Australian Design Rules for legal on-road use as a stop/tail lamp
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- Black base — clean, professional finish suits a wide range of trailer and vehicle body aesthetics
- 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 135RM |
| Lamp Type | Stop / Tail |
| LED Configuration | 8 square LEDs |
| Voltage Range | 12V / 24V |
| Dimensions | 135mm x 38mm x 24mm |
| Housing Colour | Black |
| Mounting | Surface mount |
| Protection Rating | IP67 |
| Compliance | ADR |
| Packaging | Blister pack |
| Warranty | 5 years |
| Weight | 0.2 kg |
Compatible With / Goes Well With
- Trailers, trucks, and commercial vehicles requiring rectangular surface-mount stop/tail lamps
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ADR-approved stop/tail lighting
- LED Autolamps 135WM reverse lamp (same 135mm x 38mm rectangular form factor)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 135RM approved for road use in Australia?
Yes. The LED Autolamps 135RM is ADR road approved, meeting Australian Design Rules requirements for legal on-road use as a stop/tail lamp.
What makes the square LED array different from standard LEDs?
The 8 square LEDs produce a distinctive, evenly distributed pattern across the lamp face, giving the 135RM a recognisable appearance compared to round LED arrays in standard trailer lamps.
How does the 135RM match with the 135WM reverse lamp?
Both share the same 135mm x 38mm x 24mm black housing form factor, making them a natural matched pair for stop/tail and reverse functions on the same trailer or truck body.
What is the IP rating on the 135RM?
The 135RM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
What warranty does the 135RM carry?
The 135RM is backed by a 5-year warranty from LED Autolamps.
Weight
0.2 kg
