LED Autolamps 135WM Multi Volt Reverse Lamp With 35 SMDS Blister Pack Black Base
ADR 1/00 Approved 35 SMD Reverse Lamp Surface or Recessed Mount, Black Base, IP67
Product Overview

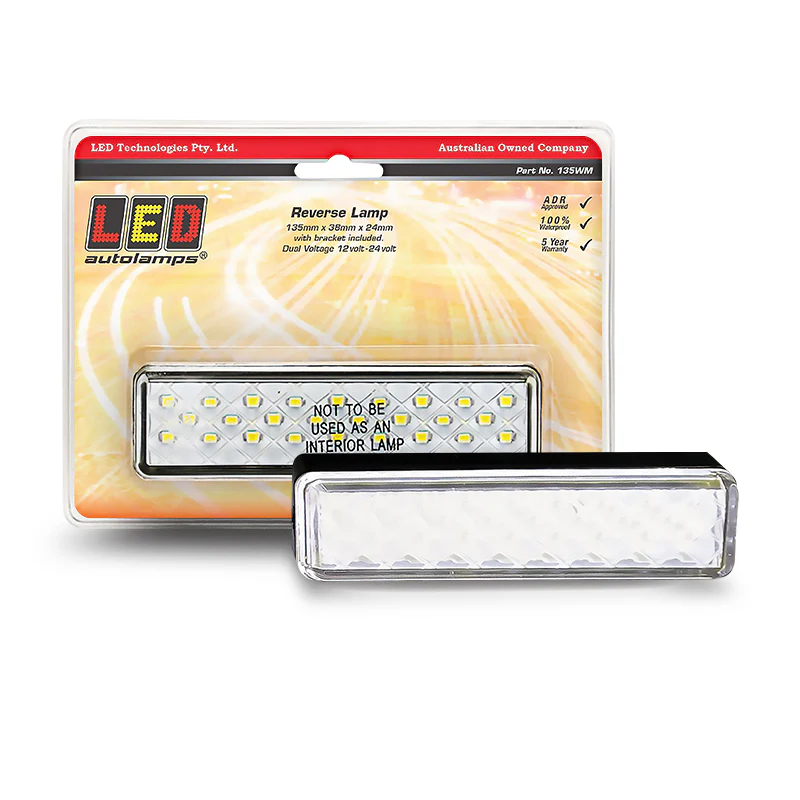

The LED Autolamps 135WM is a 12/24V reverse lamp fitted with 35 SMD LEDs in a rectangular black base housing, offering both surface mount and recessed mount installation options. Measuring 135mm x 38mm (lamp) or 145mm x 48mm (overall with bracket), it draws just 0.16A at 13.8V and is pre-wired with a 0.4m cable lead.
ADR 1/00 approved and rated IP67, supplied in blister packaging and backed by a 5-year warranty.
Features & Benefits
- 35 SMD LEDs — delivers bright, consistent white reverse output across the full rectangular lamp face
- Surface or recessed mount — flexible installation suits a wide range of trailer and truck body panel configurations
- ADR 1/00 approved — meets Australian Design Rules for legal on-road use as a reverse lamp
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- Black base — clean, professional finish suits a wide range of trailer and vehicle body aesthetics
- Low current draw — 0.16A at 13.8V for efficient operation in multi-lamp trailer builds
- 0.4m pre-wired cable — ready to connect straight out of the blister pack
- 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 135WM |
| Lamp Type | Reverse |
| LED Configuration | 35 SMD |
| Voltage Range | 12V / 24V |
| Lamp Dimensions | 135mm x 38mm x 24mm |
| Overall Dimensions | 145mm x 48mm x 10mm |
| Current Draw | 0.16A @ 13.8V |
| Cable Length | 0.4m |
| Housing Colour | Black |
| Mounting | Surface or recessed |
| Protection Rating | IP67 |
| Compliance | ADR 1/00 |
| Packaging | Blister pack |
| Warranty | 5 years |
| Weight | 0.2 kg |
Compatible With / Goes Well With
- Trailers, trucks, and commercial vehicles requiring surface or recessed reverse lamps
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ADR-approved reverse lighting
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 135WM approved for road use in Australia?
Yes. The LED Autolamps 135WM is ADR 1/00 approved, meeting Australian Design Rules requirements for legal on-road use as a reverse lamp.
What mounting options does the 135WM support?
The 135WM can be installed as either a surface mount or recessed mount, offering flexibility to suit different trailer and truck body panel configurations.
What is the current draw of the 135WM?
The 135WM draws 0.16A at 13.8V, making it one of the more efficient reverse lamp options in the LED Autolamps range — useful for multi-lamp builds where total current draw is a consideration.
What is the IP rating on the 135WM?
The 135WM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
What warranty does the 135WM carry?
The 135WM is backed by a 5-year warranty from LED Autolamps.
Weight
0.2 kg
