LED Autolamps 144AMF LED Amber Strobe Beacon Class 1
SAE Class 1 Amber Strobe Beacon 6 x 3W LEDs, 87 FPM, IP67, 12–32V
Product Overview

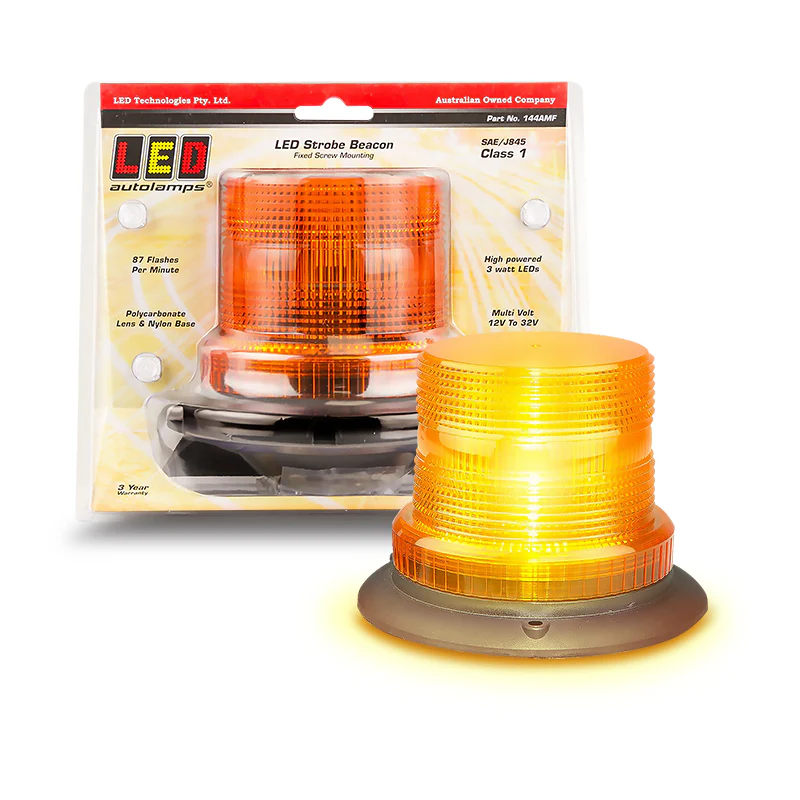

The LED Autolamps 144AMF is a heavy-duty amber LED strobe beacon designed for permanent mounting on trucks, plant equipment, and commercial vehicles. Powered by 6 x 3W LEDs through an amber polycarbonate lens, it delivers 87 flashes per minute at SAE J845 Class 1 compliance the highest SAE classification for vehicle warning lamps.
Measuring 130mm round x 97mm high with a nylon base, the 144AMF draws 0.71A at 13.8V and comes with a 19cm sheathed cable lead for connection to the vehicle's electrical system. Rated IP67 across a 12–32V operating range, backed by a 3-year warranty.
Features & Benefits
- SAE J845 Class 1 compliant — the highest SAE classification for vehicle warning lamps; amber only
- 6 x 3W high-brightness LEDs — 18W total LED output for strong, attention-grabbing amber strobe visibility
- 87 FPM flash rate — consistent, regulated flash rate meeting SAE Class 1 requirements
- Heavy-duty construction — nylon base with polycarbonate lens built for demanding outdoor and transport environments
- 19cm sheathed cable — pre-wired lead for straightforward connection to the vehicle electrical system
- IP67 rated — fully sealed against dust and water immersion
- Wide voltage range 12–32V — compatible with 12V and 24V vehicle and equipment electrical systems
- Permanent mount — engineered for stable, long-term installation on vehicle bodies and structures
- 3-year warranty — backed by LED Autolamps' warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 144AMF |
| Lamp Type | Strobe Beacon |
| LED Configuration | 6 x 3W |
| LED Colour | Amber |
| Lens Colour | Amber |
| Lens Material | Polycarbonate |
| Base Material | Nylon |
| Voltage Range | 12V – 32V |
| Current Draw | 0.71A @ 13.8V |
| Flash Rate | 87 FPM |
| Dimensions | 130mm round x 97mm |
| Cable | 19cm sheathed |
| Mounting | Permanent |
| Compliance | SAE J845 Class 1 (Amber only) |
| Protection Rating | IP67 |
| Warranty | 3 years |
Compatible With / Goes Well With
- Trucks, plant equipment, and commercial vehicles requiring SAE Class 1 amber warning beacons
- 12V and 24V vehicle and equipment electrical systems
- Emergency, warning, and hazard lighting applications
- LED Autolamps 128AMF amber strobe beacon (same class, different form factor)
- LED Autolamps wiring harnesses and emergency lighting accessories
Frequently Asked Questions
What compliance standard does the 144AMF meet?
The 144AMF is SAE J845 Class 1 compliant for amber output — the highest SAE classification for vehicle warning lamps, meeting the most stringent intensity and flash rate requirements.
What is the flash rate of the 144AMF?
The 144AMF operates at 87 flashes per minute — a fixed flash rate meeting SAE J845 Class 1 requirements for vehicle warning beacons.
What voltage systems is the 144AMF compatible with?
It operates across 12V to 32V, making it compatible with 12V light vehicles and 24V heavy transport and plant equipment electrical systems.
What is the IP rating on the 144AMF?
The 144AMF is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed outdoor, industrial, and transport applications.
What warranty does the 144AMF carry?
The 144AMF is backed by a 3-year warranty from LED Autolamps.
