LED Autolamps 151BAR2 12V LED Stop/Tail/Indicator Lamp With Reflex Reflector 2 Pack
ECE Approved 12V Stop/Tail/Indicator Lamp with Reflex Reflector Twin Pack, IP67
Product Overview

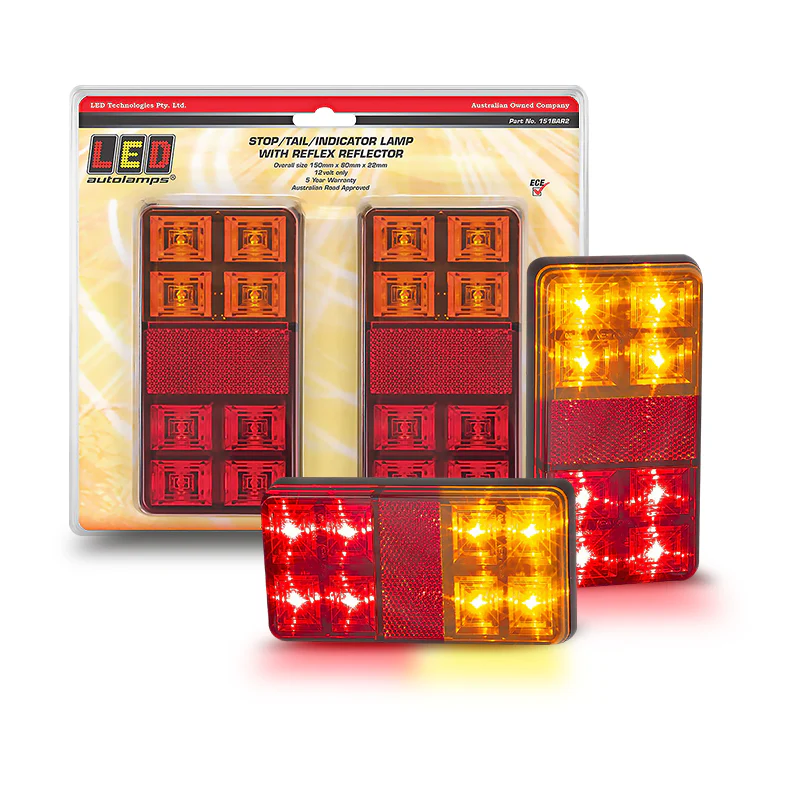

The LED Autolamps 151BAR2 is a 12V stop, tail, and indicator lamp with built-in reflex reflector, supplied as a 2-pack for a complete left and right rear installation. Measuring 150mm x 80mm x 22mm in a low-profile black housing, it delivers three rear lighting functions plus passive reflector compliance in a single surface-mount unit a cost-effective trailer lamp solution carrying full ECE and ADR CTA060147 approval.
Drawing 0.13A on stop, 0.04A on tail, and 0.12A on indicator at 13.8V. Rated IP67, backed by a 5-year warranty.
Features & Benefits
- 2-pack — both lamps supplied for a complete left and right rear installation in a single purchase
- Stop, tail, and indicator in one lamp — three functions plus built-in reflex reflector in a single compact unit
- Built-in reflex reflector — integrated passive reflective element for additional rear visibility and compliance
- Low-profile 22mm depth — slim form factor sits close to the panel surface for a clean finish on trailer bodies
- ECE road approved — certified for stop/tail (ECE 02R1-S1), indicator (ECE 01 2A), and reflector (ECE 02 1A)
- ADR CTA060147 — Australian manufacturer approval for road-legal use
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- 12V only — designed for 12V trailer and vehicle electrical systems
- Low current draw — 0.13A stop / 0.04A tail / 0.12A indicator at 13.8V
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 151BAR2 |
| Pack Contents | 2 lamps |
| Lamp Type | Stop / Tail / Indicator / Reflector |
| Voltage | 12V |
| Dimensions | 150mm x 80mm x 22mm |
| Stop Current Draw | 0.13A @ 13.8V |
| Tail Current Draw | 0.04A @ 13.8V |
| Indicator Current Draw | 0.12A @ 13.8V |
| Housing Colour | Black |
| Mounting | Surface mount |
| Protection Rating | IP67 |
| Stop/Tail Compliance | ECE 02R1-S1 |
| Indicator Compliance | ECE 01 2A |
| Reflector Compliance | ECE 02 1A |
| Manufacturer Approval | ADR — CTA060147 |
| Packaging | Blister pack |
| Weight | 0.36 kg |
Compatible With / Goes Well With
- Trailers and light commercial vehicles requiring a cost-effective 12V rear combination lamp
- Trailer builds requiring ECE and ADR-approved stop/tail/indicator lighting
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 151BAR2 approved for road use in Australia?
Yes. The 151BAR2 holds ECE certifications for stop/tail (ECE 02R1-S1), indicator (ECE 01 2A), and reflector (ECE 02 1A), plus ADR manufacturer approval CTA060147 — meeting requirements for legal on-road use in Australia.
What is included in the 151BAR2 2-pack?
The pack contains two lamps, providing a complete left and right rear installation in a single purchase.
What is the built-in reflex reflector?
The reflex reflector is a passive element integrated into the lamp housing, adding a compliant reflective surface for additional rear visibility without requiring a separate reflector unit.
What is the IP rating on the 151BAR2?
The 151BAR2 is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
Is the 151BAR2 compatible with 24V systems?
No. The 151BAR2 is a 12V-only lamp and is not rated for 24V applications.
Weight
0.36 kg per lampÂ
