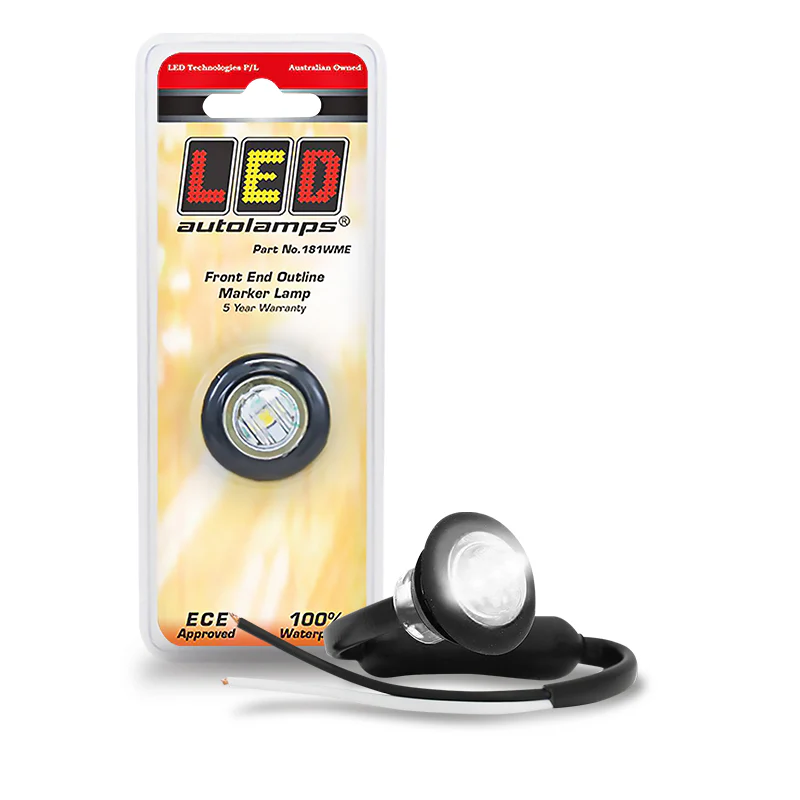

LED Autolamps 181WME 12/24V White LED Front End Outline Marker Lamp

Discreet 28mm Round White LED Front End Outline Marker Recessed Eagle Eye, Rubber Grommet, ADR/ECE, IP67.

Product Overview

The LED Autolamps 181WME is a miniature 28mm round white LED front end outline (FEO) marker lamp from the 181 series commonly known as an "eagle eye" marker for its distinctive small, circular recessed appearance. Designed for discreet, low-profile front marker applications on trailers, caravans, trucks, and commercial vehicles, the 181WME recesses flush into the mounting surface via a 20mm cutout hole, with a rubber mounting grommet included for a weatherproof seal.

The lamp has an overall diameter of 28mm and a depth of 25mm, with approximately 200mm of cable for wiring. The recess mounted lamp features a curved lens and discreet design, and includes a rubber mounting grommet. Current draw is just 0.03A at both 13.8V and 28V making it one of the most power-efficient marker lamps in the LED Autolamps range.

Key Specifications

• Function: White front end outline (FEO) marker eagle eye style
• LED colour: White
• Lens: Clear with internal white LEDs
• Diameter: 28mm
• Depth: 25mm
• Overall cable: Approx. 200mm
• Mount type: Recess mount 20mm hole cutout required
• Rubber mounting grommet: Included
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Current draw: 0.03A @ 13.8V / 0.03A @ 28V
• Compliance: ADR and ECE approved
• Warranty: 5 years
• GTIN: 9335962007943
• Packaging: Blister pack single unit
• Brand: LED Autolamps
• SKU: 181WME

Features & Benefits

• Mini recessed eagle eye design: The 28mm round recess mount gives a clean, flush, factory-like appearance with no visible external housing the lamp sits invisibly within the mounting surface
• Rubber mounting grommet included: Provides a weatherproof seal between the lamp and mounting surface without additional hardware
• 20mm cutout installation: Simple drill-and-push installation drill a 20mm hole and push the lamp with rubber housing into place
• Ultra-low 0.03A current draw: One of the most power-efficient marker lamps available virtually no load on the vehicle's electrical system
• Clear lens with white LEDs: Modern design maintains colour accuracy without UV fading
• ADR and ECE approved: Legal for Australian road use as a white front end outline marker
• IP67 waterproof: Fully sealed against dust and temporary water immersion
• 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring discreet white ADR-compliant front end outline markers including:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks
• Tankers and agricultural trailers

Frequently Asked Questions

What size hole does this lamp require?

A 20mm diameter cutout hole is required in the mounting surface. Push the lamp with the rubber grommet into the hole no screws or adhesive required.

Is the rubber mounting grommet included?

Yes a rubber mounting grommet is included to provide a weatherproof seal between the lamp and the mounting surface.

Is this lamp ADR approved for Australian road use?

Yes the 181WME is ADR and ECE approved for white front end outline marker use on Australian road vehicles and trailers.

How does the 181WME differ from the EU38WMHD and EU38WMHDB?

The 181WME is a 28mm round recess-mounted "eagle eye" style lamp requiring a 20mm cutout hole. The EU38WMHD and EU38WMHDB are rectangular 100mm x 38mm lamps using 3M adhesive tape mounting. Choose based on the mounting style and form factor that suits your application.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm mounting cutout dimensions before purchasing. Contact the seller if you're unsure prior to purchase.
