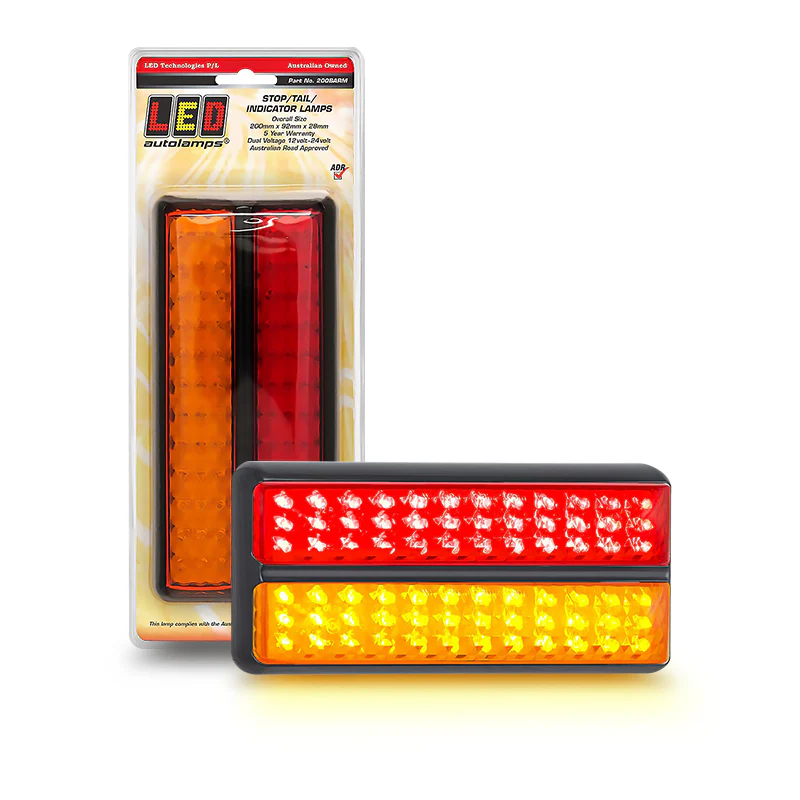

LED Autolamps 200BARM Multi Volt Stop/Tail/Indicator Assembly 72 LEDs With Black Bracket
ADR Approved 72 LED Rectangular Stop/Tail/Indicator Assembly Black Bracket, IP67, 5-Year Warranty
Product Overview
The LED Autolamps 200BARM is a 12/24V rectangular rear combination lamp covering stop, tail, and indicator functions across 72 LEDs in the wider 200 series form factor. Measuring 200mm x 92mm x 28mm with a black bracket, it delivers three rear lighting functions in a single surface-mount unit a three-function counterpart to the 200BARWM which adds reverse.
The clip-in replaceable lens allows for quick, cost-effective lens swaps without replacing the full housing. ADR road approved, IP67 rated, and backed by a 5-year warranty.
Features & Benefits
- 72 LEDs across three functions — delivers strong, consistent stop, tail, and indicator output across a wide rectangular face
- Stop, tail, and indicator in one lamp — three rear lighting functions in a single 200mm unit, simplifying wiring and installation
- Original rectangular 200 series design — the proven rectangular form factor suits trailers, trucks, and tray body rear panels
- Clip-in replaceable lens — lens swaps independently from the housing, reducing replacement costs and minimising downtime
- Black bracket — clean, professional finish suits a wide range of trailer and vehicle body aesthetics
- ADR road approved — meets Australian Design Rules for legal on-road use across all three functions
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 200BARM |
| Lamp Type | Stop / Tail / Indicator |
| LED Quantity | 72 |
| Voltage Range | 12V / 24V |
| Dimensions | 200mm x 92mm x 28mm |
| Housing Colour | Black |
| Lens | Clip-in replaceable |
| Mounting | Surface mount (bracket included) |
| Protection Rating | IP67 |
| Compliance | ADR |
| Packaging | Blister |
| Warranty | 5 years |
Compatible With / Goes Well With
- Trailers, tray bodies, trucks, and light commercial vehicles requiring a wide-format three-function rear lamp
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ADR-approved rear combination lighting
- LED Autolamps 200BARWM stop/tail/indicator/reverse lamp (same form factor, adds reverse)
- LED Autolamps 200BRM stop/tail lamp (same 200 series, standard width)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 200BARM approved for road use in Australia?
Yes. The LED Autolamps 200BARM is ADR road approved, meeting Australian Design Rules requirements for legal on-road use across stop, tail, and indicator functions.
What is the difference between the 200BARM and the 200BARWM?
The 200BARWM adds a reverse function and 97 LEDs vs 72 LEDs on the 200BARM. Both share the same 200mm x 92mm x 28mm black bracket form factor — choose the 200BARWM if reverse is required.
What does the clip-in replaceable lens mean for maintenance?
The lens clips out independently from the housing and can be replaced without swapping the entire lamp unit — saving cost and reducing installation time in the field.
What is the IP rating on the 200BARM?
The 200BARM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
What warranty does the 200BARM carry?
The 200BARM is backed by a 5-year warranty from LED Autolamps.
