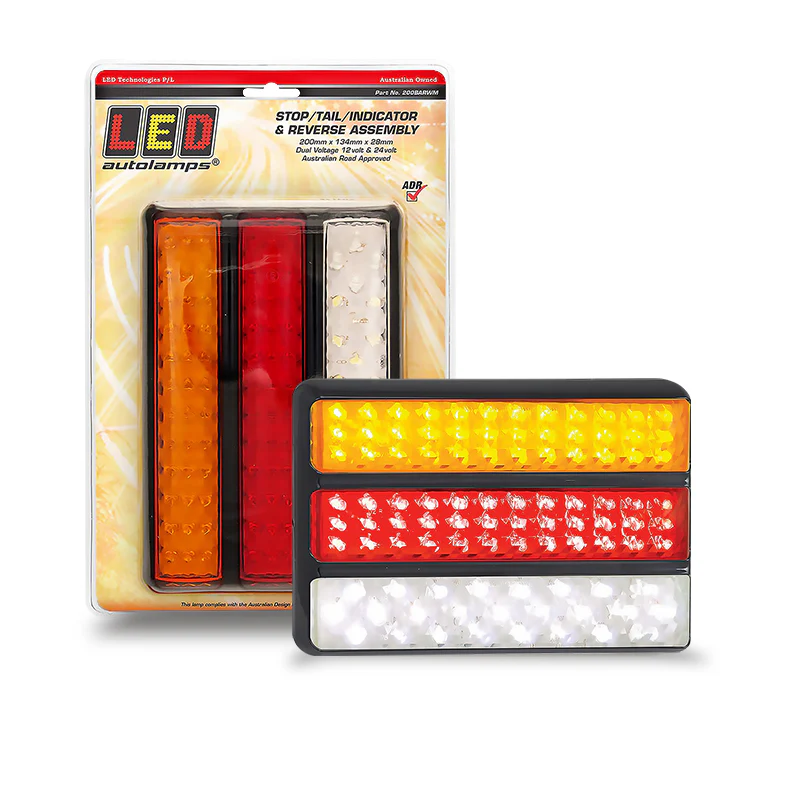

LED Autolamps 200BARWM Multi Volt Stop/Tail/Indicator/Reverse Lamp 97 LEDs With Black Bracket
ADR Approved 97 LED Rectangular Rear Combination Lamp with Clip-In Lens Black Bracket, IP67
Product Overview
The LED Autolamps 200BARWM is a 12/24V rectangular rear combination lamp covering stop, tail, indicator, and reverse functions across 97 LEDs in the 200 series form factor. Measuring 200mm x 92mm x 28mm with a black bracket, it's a wider-format step up from the standard 200 series delivering all four rear lighting functions in a single surface-mount unit for trailers, trucks, and tray bodies.
The clip-in replaceable lens allows for quick, cost-effective lens swaps without replacing the full housing. ADR road approved and rated IP67, backed by a 5-year warranty.
Features & Benefits
- 97 LEDs across four functions — high LED count delivers strong, consistent output across stop, tail, indicator, and reverse for maximum rear visibility
- Stop, tail, indicator, and reverse in one lamp — complete four-function rear lighting in a single 200mm unit, reducing wiring complexity
- Original rectangular 200 series design — the proven rectangular form factor suits trailers, trucks, and tray body rear panels
- Clip-in replaceable lens — lens swaps independently from the housing, reducing replacement costs and minimising downtime
- Black bracket — clean, professional finish suits a wide range of trailer and vehicle body aesthetics
- ADR road approved — meets Australian Design Rules for legal on-road use across all functions
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 200BARWM |
| Lamp Type | Stop / Tail / Indicator / Reverse |
| LED Quantity | 97 |
| Voltage Range | 12V / 24V |
| Dimensions | 200mm x 92mm x 28mm |
| Housing Colour | Black |
| Lens | Clip-in replaceable |
| Mounting | Surface mount (bracket included) |
| Protection Rating | IP67 |
| Compliance | ADR |
| Packaging | Blister |
| Warranty | 5 years |
Compatible With / Goes Well With
- Trailers, tray bodies, trucks, and light commercial vehicles requiring a wide-format four-function rear lamp
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ADR-approved rear combination lighting
- LED Autolamps 200BRM stop/tail lamp (same 200 series rectangular form factor)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 200BARWM approved for road use in Australia?
Yes. The LED Autolamps 200BARWM is ADR road approved, meeting Australian Design Rules requirements for legal on-road use across all four functions.
What functions does the 200BARWM cover?
It combines stop, tail, indicator, and reverse into a single assembly, providing a complete rear lighting solution for trailers, trucks, and tray bodies.
What does the clip-in replaceable lens mean for maintenance?
The lens clips out independently from the housing and can be replaced without swapping the entire lamp unit — saving cost and reducing installation time in the field.
How does the 200BARWM differ from the standard 200 series lamps?
The 200BARWM measures 200mm x 92mm — wider than the standard 200mm x 50mm 200 series lamps — and covers all four rear lighting functions across 97 LEDs in a single unit.
What warranty does the 200BARWM carry?
The 200BARWM is backed by a 5-year warranty from LED Autolamps.
