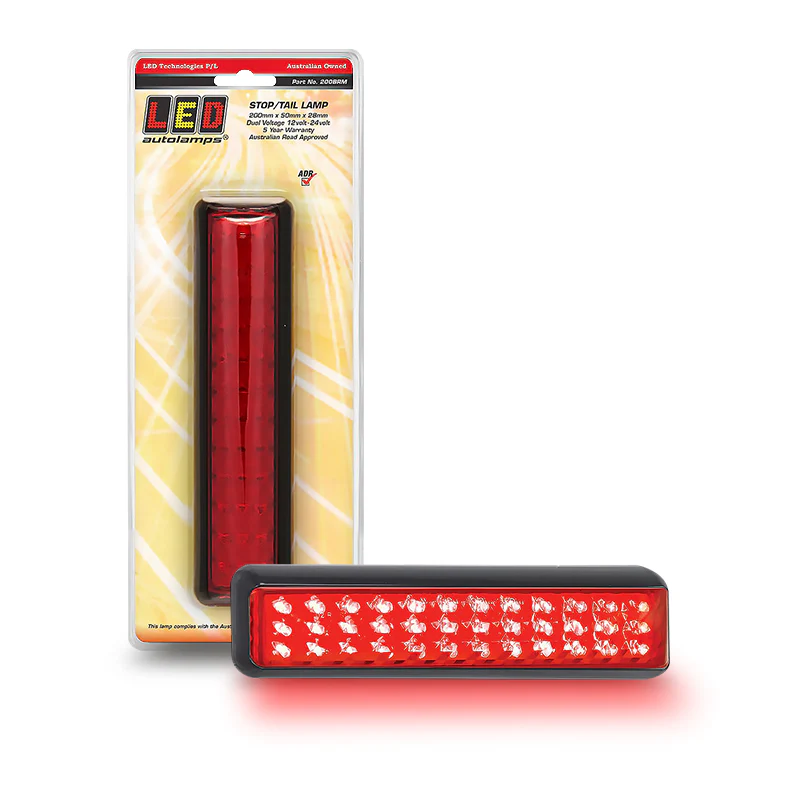

LED Autolamps 200BRM 12/24V Stop Tail Light With Black Bracket 200x50mm
ADR 49/00 Approved Rectangular Stop/Tail Lamp with Black Bracket and Clip-In Lens IP67
Product Overview
The LED Autolamps 200BRM is a 12/24V rectangular stop/tail lamp in the classic 200 series form factor, measuring 200mm x 50mm x 28mm with a black surface mount bracket. Pre-wired and ADR 49/00 compliant, it fits a wide range of trailers, trucks, and commercial vehicles with a 160mm centre-to-centre mount spacing.
The clip-in replaceable lens allows for quick, cost-effective lens swaps without replacing the full housing. Drawing 0.32A at 13.8V and rated IP67, backed by a 5-year warranty.
Features & Benefits
- Original rectangular 200 series design — the proven 200mm x 50mm form factor suits a wide range of trailer, truck, and tray body applications
- Clip-in replaceable lens — lens swaps independently from the housing, reducing replacement costs and minimising downtime when a lens is damaged
- Black housing — suits a wide range of trailer and truck body finishes with a clean, professional look
- ADR 49/00 compliant — meets Australian Design Rules for legal on-road use as a stop/tail lamp
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- Pre-wired, surface mount — 160mm centre-to-centre spacing; ready to connect and mount straight out of the pack
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 200BRM |
| Lamp Type | Stop / Tail |
| Voltage Range | 12V – 24V |
| Dimensions | 200mm x 50mm x 28mm |
| Mount Centre-to-Centre | 160mm |
| Current Draw | 0.32A @ 13.8V |
| Mounting | Surface mount |
| Connector | Pre-wired |
| Housing Colour | Black |
| Lens | Clip-in replaceable |
| Protection Rating | IP67 |
| Compliance | ADR 49/00 |
| Warranty | 5 years |
Compatible With / Goes Well With
- Trailers, tray bodies, trucks, and light commercial vehicles
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ADR 49/00 approved stop/tail lighting
- LED Autolamps 200 series indicator and reverse lamps (same rectangular form factor)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 200BRM approved for road use in Australia?
Yes. The 200BRM is ADR 49/00 compliant, meeting Australian Design Rules requirements for legal on-road use as a stop/tail lamp.
What does the clip-in replaceable lens mean for maintenance?
The lens clips out independently from the housing and can be replaced without swapping the entire lamp unit — saving cost and reducing installation time in the field.
What is the centre-to-centre mounting distance on the 200BRM?
The 200BRM has a 160mm centre-to-centre mount spacing. Confirm this measurement against your panel or bracket before installation.
What is the IP rating on the 200BRM?
The 200BRM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
What warranty does the 200BRM carry?
The 200BRM is backed by a 5-year warranty from LED Autolamps.
