LED Autolamps 200BSTIRMB 12/24V LED Stop/Tail/Indicator/Reverse Black Bracket
ADR Approved Stop/Tail/Indicator/Reverse Lamp Black Bracket, 200x50mm, IP67, 12/24V
Product Overview

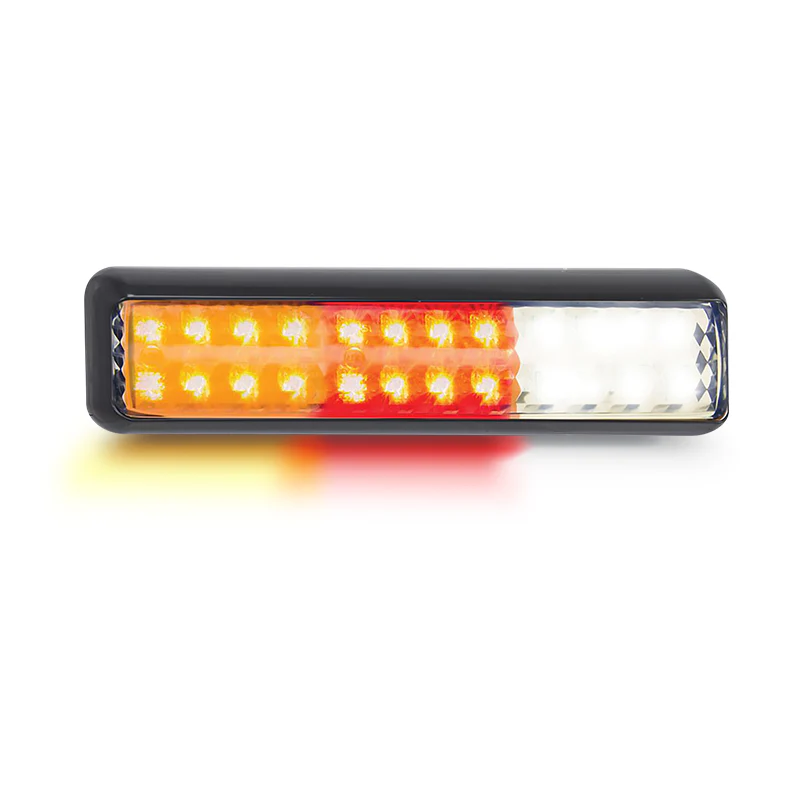

The LED Autolamps 200BSTIRMB is a 12/24V rear combination lamp covering stop, tail, indicator, and reverse functions in a single 200mm x 50mm x 28mm black bracket unit. Pre-wired with a 160mm centre-to-centre mount, it delivers all four rear lighting functions in the classic 200 series rectangular form factor reducing wiring complexity and fitting count on trailer and truck body builds.
ADR road approved and rated IP67, backed by a 1-year warranty.
Features & Benefits
- Stop, tail, indicator, and reverse in one lamp — four functions in the compact 200 series rectangular form factor, reducing wiring and installation complexity
- Black bracket — clean, professional finish suits a wide range of trailer and vehicle body aesthetics
- Original rectangular 200 series design — the proven 200mm x 50mm form factor suits trailers, trucks, and tray body rear panels
- Pre-wired surface mount — 160mm centre-to-centre spacing; ready to connect and mount straight out of the pack
- ADR road approved — meets Australian Design Rules for legal on-road use across all four functions
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 200BSTIRMB |
| Lamp Type | Stop / Tail / Indicator / Reverse |
| Voltage Range | 12V / 24V |
| Dimensions | 200mm x 50mm x 28mm |
| Mount Centre-to-Centre | 160mm |
| Stop Current Draw | 0.29A @ 13.8V |
| Tail Current Draw | 0.09A @ 13.8V |
| Indicator Current Draw | 0.19A @ 13.8V |
| Housing Colour | Black |
| Mounting | Surface mount |
| Connector | Pre-wired |
| Protection Rating | IP67 |
| Compliance | ADR |
| Warranty | 1 year |
| Weight | 0.2 kg |
Compatible With / Goes Well With
- Trailers, tray bodies, trucks, and light commercial vehicles requiring a four-function rear combination lamp
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ADR-approved rear combination lighting
- LED Autolamps 200BRM stop/tail lamp (same 200 series black rectangular form factor)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 200BSTIRMB approved for road use in Australia?
Yes. The LED Autolamps 200BSTIRMB is ADR road approved, meeting Australian Design Rules requirements for legal on-road use across all four functions.
How does the 200BSTIRMB differ from having separate 200 series lamps?
The 200BSTIRMB combines stop, tail, indicator, and reverse into a single lamp, reducing the number of fittings and wiring connections required compared to fitting four separate 200 series lamps.
What is the current draw of the 200BSTIRMB?
Stop draws 0.29A, tail 0.09A, and indicator 0.19A at 13.8V. Reverse current draw was not specified in supplier data — confirm with LED Autolamps.
What is the IP rating on the 200BSTIRMB?
The 200BSTIRMB is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
What warranty does the 200BSTIRMB carry?
The 200BSTIRMB is backed by a 1-year warranty from LED Autolamps — confirm warranty terms with F.A.E. before purchasing.
