LED Autolamps 207BARL4P 12V Stop/Tail/Indicator Light Licence Plate 14 Square
ADR Approved 12V Stop/Tail/Indicator/Licence Plate Lamp 14 Square LEDs, Fully Submersible, IP67
Product Overview

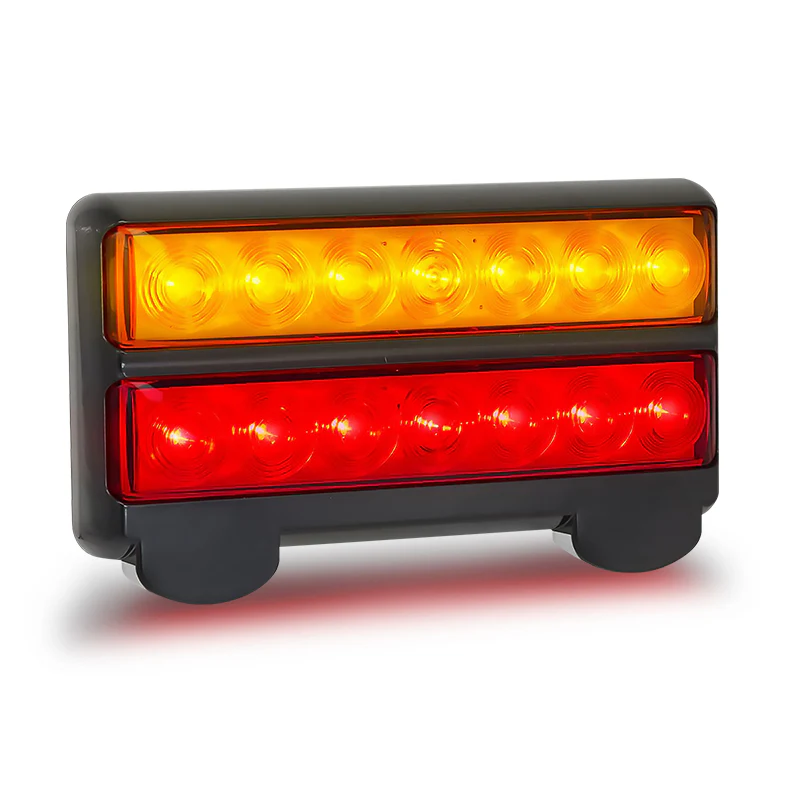

The LED Autolamps 207BARL4P is a 12V rear combination lamp covering stop, tail, indicator, and licence plate functions in a single 200mm x 92mm x 28mm surface-mount unit. Fitted with 14 square LEDs and specified as fully submersible, it goes beyond standard IP67 waterproofing suited to trailer and vehicle applications where full water submersion is a real possibility.
The integrated licence plate lamp eliminates the need for a separate fitting. Compatible with LED Autolamps' plug-in cable kit system, and ADR road approved. Backed by a 5-year warranty.
Features & Benefits
- Integrated licence plate lamp — eliminates the need for a separate licence plate light, reducing components and simplifying wiring
- 14 square LEDs — distinctive square LED array delivering stop, tail, and indicator output across the 200mm lamp face
- Fully submersible — exceeds standard IP67 requirements; engineered for applications where full water submersion may occur
- Plug-in cable kit compatible — compatible with LED Autolamps' plug-in cable kit system for cleaner, faster installation
- ADR road approved — meets Australian Design Rules for legal on-road use across all functions
- IP67 rated — fully sealed against dust and water immersion
- 12V only — designed for 12V trailer and vehicle electrical systems
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 207BARL4P |
| Lamp Type | Stop / Tail / Indicator / Licence Plate |
| LED Configuration | 14 square LEDs |
| Voltage | 12V |
| Dimensions | 200mm x 92mm x 28mm |
| Mounting | Surface mount |
| Protection Rating | IP67 (fully submersible) |
| Compliance | ADR |
| Warranty | 5 years |
| Weight | 0.4 kg |
Compatible With / Goes Well With
- Trailers and light vehicles requiring a wide-format 12V rear combination lamp with integrated licence plate
- LED Autolamps plug-in cable kit system (confirm compatible cable kit with F.A.E.)
- Trailer builds requiring ADR-approved stop/tail/indicator/licence plate lighting
- LED Autolamps 149BARLP2 (same licence plate integration concept, different form factor)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 207BARL4P approved for road use in Australia?
Yes. The LED Autolamps 207BARL4P is ADR road approved, meeting Australian Design Rules requirements for legal on-road use across all four functions.
What does fully submersible mean beyond IP67?
IP67 covers water immersion up to 1 metre for 30 minutes. The 207BARL4P is specified as fully submersible, indicating it is engineered to handle more demanding water exposure — suited to boat trailers, agricultural equipment, and other applications where submersion is likely.
What is the integrated licence plate lamp?
The 207BARL4P has a licence plate light built into the lamp housing, illuminating the rear number plate without requiring a separate lamp fitting or additional wiring.
What is the plug-in cable kit?
The 207BARL4P is compatible with LED Autolamps' plug-in cable kit system, which allows the lamp to connect to the trailer wiring without cutting or splicing. Contact F.A.E. to confirm the compatible cable kit part number.
Is the 207BARL4P compatible with 24V systems?
No. The 207BARL4P is a 12V-only lamp and is not rated for 24V applications.
Weight
0.4 kg
