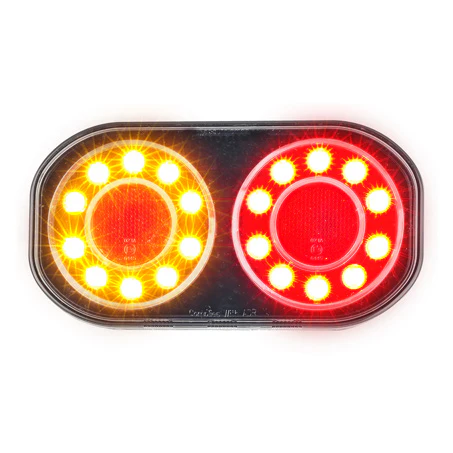

LED Autolamps 209GARL4P 12V Stop/Tail/Indicator/Lamp Reflector Number Plate Light

ADR Approved 12V Stop/Tail/Indicator/Licence Plate Lamp Fully Submersible, 8m Kit Available

Product Overview

The LED Autolamps 209GARL4P is the licence plate variant of the 209GAR4P adding an integrated number plate light to the stop, tail, indicator, and reflector functions in the same 210mm x 110mm x 28mm fully submersible housing. The built-in licence plate lamp eliminates a separate fitting, making it a practical all-in-one solution for boat trailers, agricultural trailers, and any application requiring both rear combination lighting and number plate illumination.

Compatible with LED Autolamps' plug-in cable kit system with an 8-metre kit available for longer trailer runs. ADR approved and backed by a 5-year warranty.

Features & Benefits

• Integrated number plate lamp — built-in licence plate illumination eliminates the need for a separate lamp, reducing components and wiring
• Fully submersible — engineered for full water submersion beyond standard IP67; suited to boat trailers, agricultural, and wash-down applications
• Plug-in cable kit compatible — compatible with LED Autolamps' plug-in cable kit for faster, tool-free wiring connections
• 8-metre cable kit available — optional long cable kit for larger or stretched trailer installations
• Stop, tail, indicator, reflector, and licence plate in one lamp — five functions in a single unit
• ADR approved — meets Australian Design Rules for legal on-road use across all functions
• IP67 rated — fully sealed against dust and water immersion
• 12V only — designed for 12V trailer and vehicle electrical systems
• 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Compatible With / Goes Well With

• Boat trailers, agricultural trailers, and equipment requiring fully submersible rear combination lighting with licence plate
• Trailers requiring longer cable runs — 8m kit available
• LED Autolamps plug-in cable kit system (confirm compatible cable kit with F.A.E.)
• LED Autolamps 209GAR4P (same form factor, without licence plate lamp)
• LED Autolamps 207BARLP2 and 207BARL4P (same licence plate integration, different form factor)
• LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 209GARL4P approved for road use in Australia?

Yes. The LED Autolamps 209GARL4P is ADR approved, meeting Australian Design Rules requirements for legal on-road use across all five functions including the licence plate lamp.

How does the 209GARL4P differ from the 209GAR4P?

The 209GARL4P adds an integrated number plate lamp to the same fully submersible 210mm x 110mm stop/tail/indicator/reflector form factor as the 209GAR4P. Choose the 209GARL4P where licence plate illumination is required from the same unit.

What does fully submersible mean beyond IP67?

IP67 covers water immersion up to 1 metre for 30 minutes. The 209GARL4P is specified as fully submersible, meaning it is engineered for extended submersion — suited to boat trailer launching, agricultural, and wash-down environments.

What is the 8-metre cable kit?

An optional 8-metre plug-in cable kit is available for trailer installations where standard cable lengths are insufficient. Contact F.A.E. to confirm the compatible cable kit part number.

Is the 209GARL4P compatible with 24V systems?

No. The 209GARL4P is a 12V-only lamp and is not rated for 24V applications.
