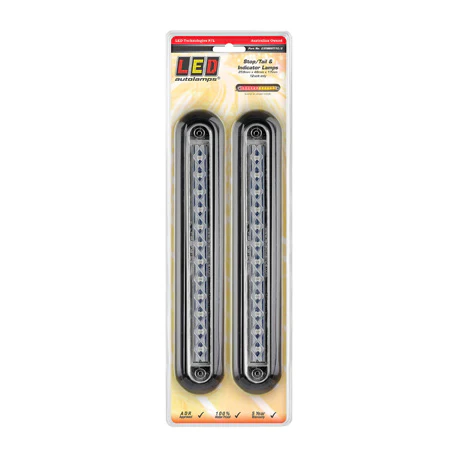

LED Autolamps 235BBSTI12/2 12V Stop/Tail/Indicator Black PCB Bracket Twin Blister

Ultra-Slimline 12V Stop/Tail/Indicator Twin Pack 18 LED Black PCB, Black Bracket, ADR Approved, IP67.

---

Product Overview

The LED Autolamps 235BBSTI12/2 is a twin blister pack of 235 series ultra-slimline stop/tail/indicator combination lamps one of the most popular tray ute and trailer lighting upgrades in the LED Autolamps range. The 235BBSTI12/2 suits new tray utes and 4WDs, with each lamp measuring just 259mm x 46mm x 17mm in a surface mount black bracket configuration.

The 235 series features 18 LEDs with a 40cm cable and high-impact PMMA lens over a black PCB. The clear lens with amber and red LEDs delivers a modern, clean look. ADR approved, IP67 rated, and 12V only supplied as a matched left and right pair in a twin blister pack. Backed by LED Autolamps' 5-year warranty.

---

Key Specifications

• Functions: Stop, tail, indicator
• LED count: 18 LEDs
• Lens: Clear amber and red internal LEDs
• PCB: Black
• Bracket: Black
• Dimensions: 259mm x 46mm x 17mm
• Cable length: 40cm
• Mount type: Surface mount 2 bolt, flat surface
• IP rating: IP67
• Input voltage: 12V only
• Compliance: ADR approved
• Warranty: 5 years
• Pack quantity: 2 lamps (twin blister)
• Brand: LED Autolamps
• SKU: 235BBSTI12/2

---

Features & Benefits

• Ultra-slim 17mm depth: One of the slimmest combination lamps available at just 17mm deep ideal for tray utes, trailers, and low-clearance mounting applications
• Black PCB and black bracket: Stealth black aesthetic suits modern tray ute and 4WD builds where a discreet, dark lamp appearance is preferred
• 18 LEDs clear lens: Clear lens with amber and red internal LEDs delivers a modern, clean appearance without coloured plastic lenses
• 40cm cable: Generous pre-wired lead for flexible routing in tray and trailer installations
• ADR approved: Legally compliant for Australian road use across all three functions
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 12V only: Direct 12V compatibility for tray utes, caravans, and light trailers
• Twin blister pack: Two lamps per pack for complete left and right rear fitment
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

---

Technical Specs

---

Compatible With

Ideal for:

• New generation tray utes (Hilux, Ranger, BT-50, Navara, Amarok, etc.)
• 4WD tray and canopy builds
• Box trailers and light commercial trailers
• Caravans requiring slimline 12V stop/tail/indicator lamps

Pairs well with:

• LED Autolamps 42WM white front position marker
• LED Autolamps 42AM amber side direction indicator
• LED Autolamps 5025AM2 amber side marker twin pack
• LED Autolamps 7030R red self-adhesive reflectors

---

Frequently Asked Questions

Is this lamp 12V or 24V?

The 235BBSTI12/2 is 12V only. For a 24V version, refer to the LED Autolamps 235BSTI24.

How many lamps are in the twin blister pack?

Two lamps are included one for each side of the vehicle or trailer rear.

What is the depth of this lamp?

Just 17mm one of the slimmest combination lamps available, making it ideal for low-clearance tray ute and trailer mounting applications.

Does this lamp suit tray utes?

Yes the 235BBSTI12/2 is specifically noted as suitable for new tray ute and 4WD applications.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm 12V compatibility before purchasing. Contact the seller if you're unsure prior to purchase.
