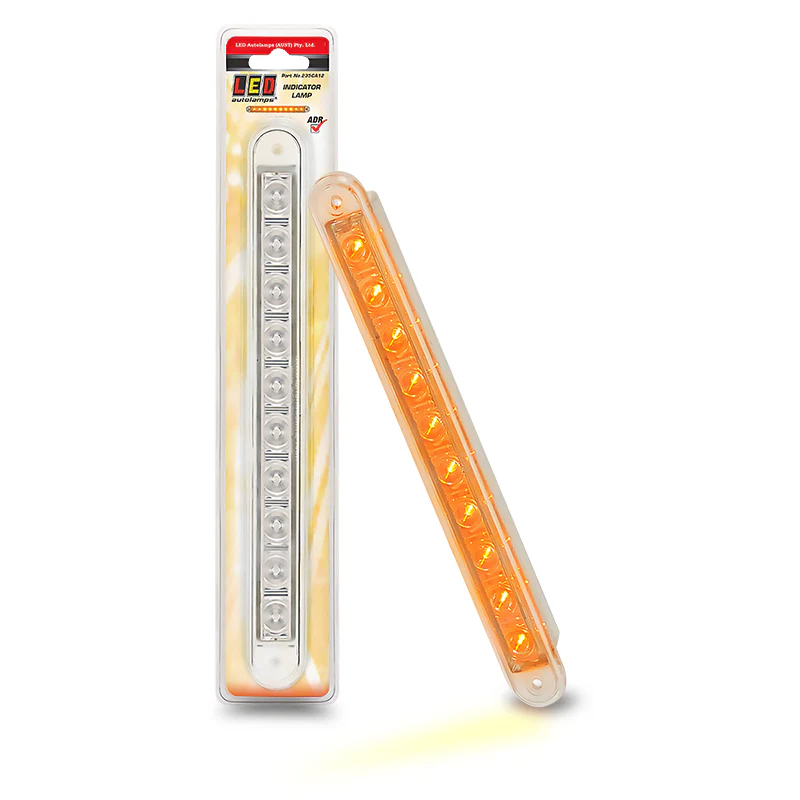

LED Autolamps 235CA12 LED Recessed Amber 235Mm

12V Recessed Amber Indicator Strip Lamp Clear Lens, 0.14A, ADR Approved, IP67, 237mm.

---

Product Overview

The LED Autolamps 235CA12 is a 12V amber indicator lamp from the 235 Series the clear lens amber indicator variant for 12V rear indicator applications. The "CA" in the SKU denotes Clear lens with Amber LEDs and "12" confirms 12V. Drawing just 0.14A at 13.8V, the 235CA12 provides a slimline, flush-mount amber indicator solution in the proven 237mm x 25mm x 3mm 235 Series recessed format.

Recesses into a 203mm x 19mm cutout for a clean, professional installation. ADR approved, IP67 rated, and supplied with a 40cm pre-wired cable. Surface mount brackets are available separately for non-recessed applications. Backed by LED Autolamps' 5-year warranty and supplied as a single unit.

---

Key Specifications

• Function: Amber indicator
• Lens: Clear with internal amber LEDs
• Current draw: 0.14A @ 13.8V
• Dimensions: 237mm x 25mm x 3mm
• Cutout required: 203mm x 19mm
• Cable: 40cm
• Mount type: Recessed flush mount. Surface mount brackets available separately
• IP rating: IP67
• Input voltage: 12V only
• Compliance: ADR approved
• Warranty: 5 years
• Brand: LED Autolamps
• SKU: 235CA12

---

Features & Benefits

• Clear lens with amber LEDs: Modern clean lens appearance with internal amber LEDs maintains colour accuracy over time without UV fading from tinted lenses
• 0.14A current draw: Low electrical load at 12V for efficient indicator circuit operation
• Slimline recessed 3mm depth: Flush installation for a professional appearance within the mounting surface
• ADR approved: Legal for amber indicator use on Australian road vehicles and trailers
• 12V only: Direct 12V compatibility for trailers, caravans, and light commercial vehicles
• Surface mount brackets available: Optional brackets for applications where recessed installation is not practical
• 40cm cable: Pre-wired for standard installation configurations
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

---

Technical Specs

---

Compatible With

Suits 12V trailers, caravans, and vehicles requiring slimline recessed amber indicator lighting:

• 12V trailer rear panels
• Caravans and camper trailers
• Light commercial vehicle rear lighting
• Tray vehicle and ute builds in the 235 Series format

---

Frequently Asked Questions

What is the current draw of this lamp?

The 235CA12 draws 0.14A at 13.8V a low electrical load suited to standard 12V indicator circuits.

Is this lamp 12V or 24V?

The 235CA12 is 12V only confirmed by the "12" in the SKU and supplier specs. For a 24V amber indicator in the 235 Series, refer to the 235CA24.

What cutout size does this lamp require?

The 235CA12 requires a 203mm x 19mm cutout for recessed installation.

Can this lamp be surface mounted?

Yes surface mount brackets are available separately for applications where a recessed cutout is not practical.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm 12V compatibility before purchasing. Contact the seller if you're unsure.
