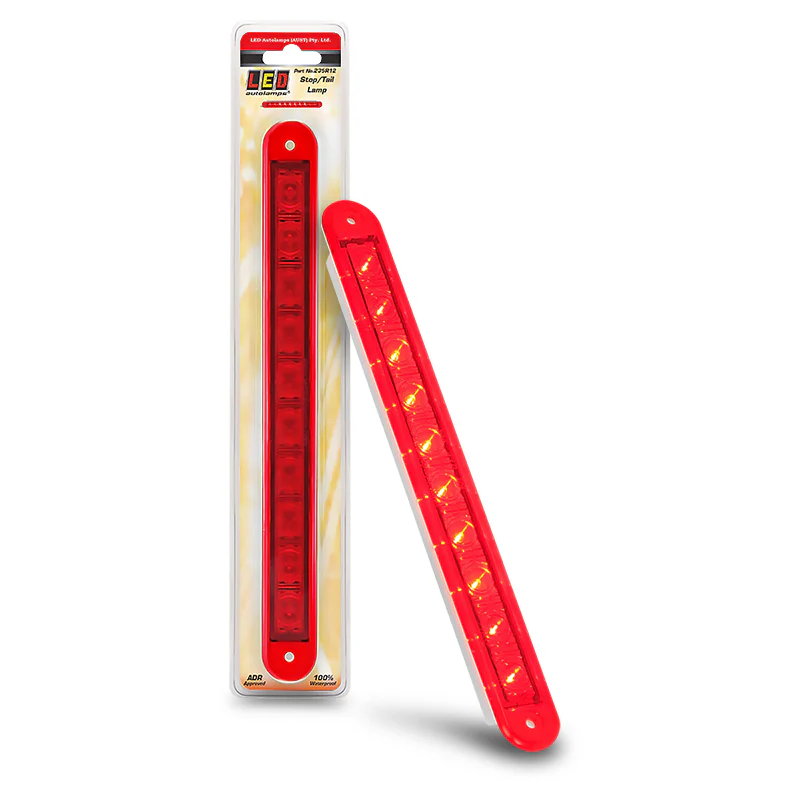

LED Autolamps 235R24 LED Rear Stop Tail Light Red 24V

24V Slimline Recessed Stop/Tail Light 235 Series, Red Lens, ADR Approved, IP67.

---

Product Overview

The LED Autolamps 235R24 is a 24V stop/tail light from the 235 Series the red lens, 24V version of the popular slimline recessed strip lamp. Measuring 237mm x 25mm x 3mm (lamp module), the 235R24 recesses into a 203mm x 19mm cutout for a clean flush installation on truck and trailer rear panels. Surface mount brackets are available separately for non-recessed applications.

ADR approved, IP67 rated, and supplied with a 40cm cable. The 235R24 is the companion lamp to the 235W24E (reverse, 24V) for complete 24V rear lighting in the 235 Series slimline recessed format. Backed by LED Autolamps' 5-year warranty and supplied as a single unit.

---

Key Specifications

• Function: Stop and tail
• Lens: Red
• Dimensions: 237mm x 25mm x 3mm (lamp module)
• Cutout required: 203mm x 19mm
• Cable: 40cm
• Mount type: Recessed push into cutout with grommet, screw fix. Surface mount brackets available separately
• IP rating: IP67
• Input voltage: 24V only
• Compliance: ADR approved
• Warranty: 5 years
• Brand: LED Autolamps
• SKU: 235R24

---

Features & Benefits

• 24V only: Designed for 24V truck, bus, and commercial trailer applications
• Slimline recessed design: At just 3mm deep (lamp module), the 235R24 mounts flush within the panel for a clean, professional appearance
• Red lens stop/tail: Dedicated red lens stop and tail function the standard 235 Series red lamp for 24V rear lighting
• ADR approved: Certified for stop and tail use on Australian road vehicles and trailers
• Surface mount brackets available: Optional brackets allow surface mounting without a cutout
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 40cm cable: Pre-wired with a 40cm cable
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

---

Technical Specs

---

Compatible With

Suits all 24V trucks, trailers, and commercial vehicles requiring a slimline recessed stop/tail lamp:

• 24V rigid truck and semi-trailer rear panels
• Bus and coach rear lighting systems
• Commercial trailer builders using the 235 Series modular format

---

Frequently Asked Questions

Is this lamp 12V or 24V?

The 235R24 is 24V only confirmed by the supplier features and the "24" in the SKU. For the 12V equivalent, refer to the 235R12.

What cutout size does this lamp require?

The 235R24 requires a 203mm x 19mm cutout in the mounting surface for recessed installation.

What is the actual depth of this lamp?

The lamp module is 3mm deep. The overall installed depth including the mounting grommet is approximately 16–18mm.

Can this lamp be surface mounted?

Yes surface mount brackets are available separately for applications where a recessed cutout is not practical.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm 24V compatibility before purchasing. Contact the seller if you're unsure.
