LED Autolamps 25W12 Vehicle Light LED Reverse Light Recessed Strip Series
12V Supplementary Reverse Light Recessed Strip, 3mm Depth, ADR Approved, IP67.
Product Overview

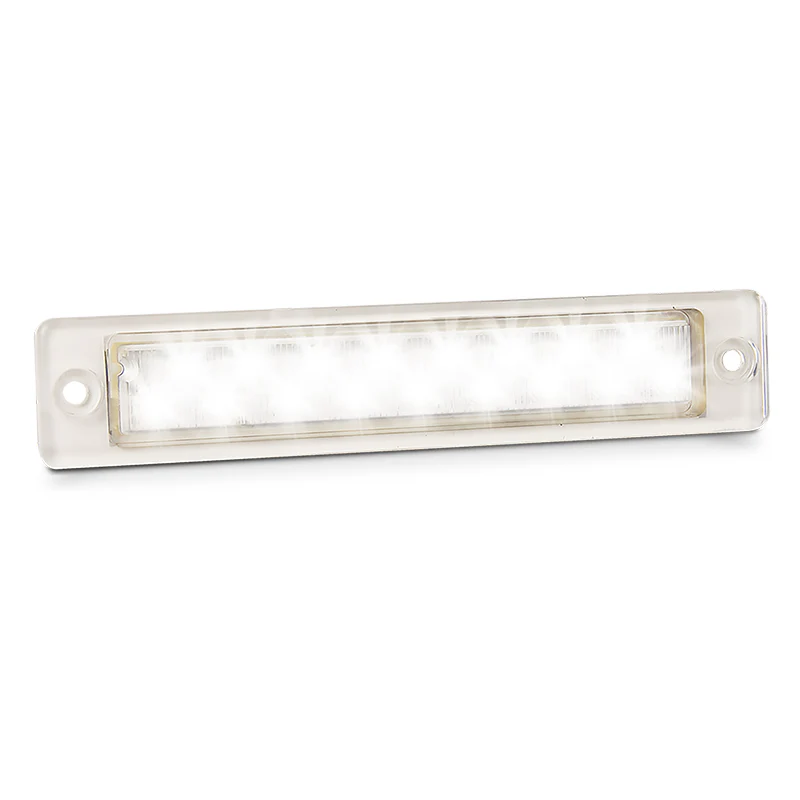

The LED Autolamps 25W12 is a 12V supplementary reverse light from the 25 Series one of the slimmest LED reverse lamps available at just 3mm deep. Featuring a clear lens with white LEDs and a slimline recessed design, the 25W12 mounts flush into a 106mm x 19mm cutout in the mounting surface, providing an extremely low-profile reverse light solution for caravans, trailers, and commercial vehicles where depth clearance is critical.
Mount onto a flat surface horizontally, run wires through the back, push the lamp into the cutout (106mm x 19mm) in the mounting surface, and fix with screws supplied at both ends. At 0.16A current draw, the 25W12 is a minimal-load reverse lamp suited to supplementary applications. ADR approved, IP67 rated, and backed by LED Autolamps' 5-year warranty. Supplied as a single unit.
Key Specifications
- Function: Supplementary reverse light (white LED)
- Lens: Clear
- Dimensions: 130mm x 25mm x 3mm
- Cutout required: 106mm x 19mm
- Cable: 40cm
- Current draw: 0.16A @ 12V
- Mount type: Recessed push into cutout, screw fix at both ends
- IP rating: IP67
- Input voltage: 12V only
- Compliance: ADR approved (reverse not ECE approved see note)
- Warranty: 5 years
- Brand: LED Autolamps
- SKU: 25W12
Features & Benefits
- Ultra-slim 3mm depth: At just 3mm, the 25W12 is one of the thinnest LED reverse lamps available ideal for installations with minimal depth clearance
- Supplementary reverse light: Designed as an additional or supplementary reverse lamp to supplement the primary reverse lamp on the vehicle or trailer
- Clear lens with white LEDs: Clean, modern clear lens appearance with internal white LEDs
- Recessed mount: Pushes into 106mm x 19mm cutout and fixes with screws at both ends for a flush, clean appearance with no protruding housing
- ADR approved: Certified for use as a supplementary reverse light on Australian road vehicles and trailers
- IP67 waterproof: Completely sealed against dust and temporary water immersion
- 0.16A current draw: Minimal electrical load on the vehicle's reverse circuit
- 5-year warranty: Backed by LED Autolamps' 5-year warranty
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 25W12 |
| Brand | LED Autolamps |
| Series | 25 Series |
| Function | Supplementary Reverse Light |
| Lens | Clear |
| LED Colour | White |
| Dimensions | 130mm x 25mm x 3mm |
| Cutout Required | 106mm x 19mm |
| Cable Length | 40cm |
| Current Draw | 0.16A @ 12V |
| Mount Type | Recessed push into cutout, screw fix |
| IP Rating | IP67 |
| Input Voltage | 12V only |
| ADR Compliance | ADR approved |
| ECE Compliance | Not ECE approved for reverse function |
| Warranty | 5 Years |
Compatible With
Suits 12V trailers, caravans, and vehicles requiring an ultra-slim supplementary reverse light:
- Caravans and motorhomes with limited depth clearance at the rear panel
- Trailer rear panels where a flush, low-profile reverse lamp is required
- Applications where the primary reverse lamp is in the combination lamp and a supplementary lamp is desired
Frequently Asked Questions
Is this lamp ECE approved for the reverse function?
No the 25 Series is ECE approved for most functions, but the reverse function is not ECE approved. The 25W12 is ADR approved for supplementary reverse light use. If ECE approval is required for your application, refer to another reverse lamp in the LED Autolamps range.
What cutout size does this lamp require?
The 25W12 requires a 106mm x 19mm cutout in the mounting surface.
What does "supplementary" reverse light mean?
A supplementary reverse light is an additional reverse lamp installed alongside the primary reverse lamp it enhances reverse visibility rather than replacing the main reverse function lamp.
Is this lamp 12V or 24V?
The 25W12 is 12V only. Do not connect to 24V systems.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
