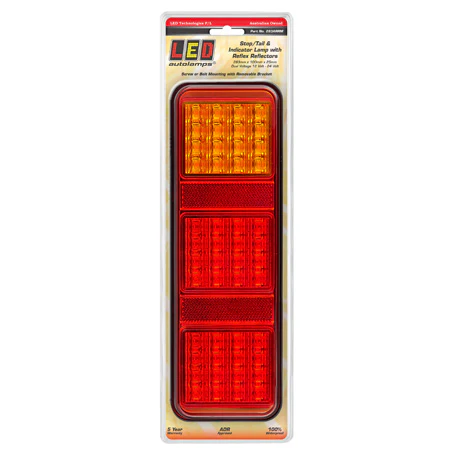

LED Autolamps 283ARRM 12/24V Stop/Tail/Indicator Lamp With Inbuilt Reflectors Screw Or Bolt On Mount
ADR Approved Stop/Tail/Indicator/Reverse Lamp with Inbuilt Reflectors Screw or Bolt Mount, IP67
Product Overview
The LED Autolamps 283ARRM is a 12/24V rear combination lamp covering stop, tail, indicator, and reverse functions with integrated reflectors in a 283mm x 100mm x 25mm unit. The removable bracket allows for both screw and bolt-on mounting configurations, providing installation flexibility on trailer, truck, and tray body rear panels.
ADR Australian road approved, IP67 rated, and backed by a 5-year warranty.
Features & Benefits
- Screw or bolt-on mount with removable bracket — flexible mounting options suit a wider range of trailer and truck body panel configurations
- Inbuilt reflectors — integrated passive reflective elements for additional rear visibility and compliance
- Stop, tail, indicator, and reverse with reflectors — five functions in a single 283mm unit
- ADR Australian road approved — meets Australian Design Rules for legal on-road use across all functions
- IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
- 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 283ARRM |
| Lamp Type | Stop / Tail / Indicator / Reverse |
| Voltage Range | 12V / 24V |
| Dimensions | 283mm x 100mm x 25mm |
| Reflectors | Inbuilt |
| Mounting | Screw or bolt-on (removable bracket) |
| Protection Rating | IP67 |
| Compliance | ADR |
| Warranty | 5 years |
Compatible With / Goes Well With
- Trailers, trucks, and tray bodies requiring a wide-format four-function rear combination lamp with mounting flexibility
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ADR-approved rear combination lighting
- LED Autolamps 280ARRM (similar 280 series, different mount style)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 283ARRM approved for road use in Australia?
Yes. The 283ARRM is ADR Australian road approved, meeting Australian Design Rules requirements for legal on-road use across all four functions.
What does the removable bracket enable?
The removable bracket allows the 283ARRM to be fitted via either screw or bolt-on mounting, adapting to different trailer and truck body panel fixing methods without requiring additional hardware.
What functions does the 283ARRM cover?
It combines stop, tail, indicator, reverse, and integrated reflectors in a single lamp — a complete rear lighting solution in a single unit per side.
What is the IP rating on the 283ARRM?
The 283ARRM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
What warranty does the 283ARRM carry?
The 283ARRM is backed by a 5-year warranty from LED Autolamps.
