LED Autolamps 284ARWM-2 MultiVolt Stop/Tail/Indicator/Reverse LHS RHS Light
European-Inspired Sequential Indicator Combination Lamp Pair Diffused Tail, 284mm, ECE Approved, 10–30V.
Product Overview

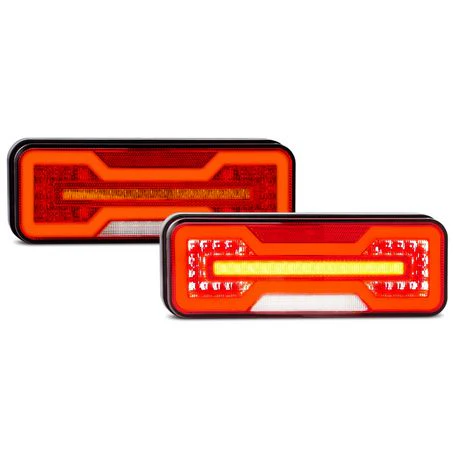

The LED Autolamps 284ARWM-2 is a twin pack of 284 Series "Zeon" rear combination lamps a matched left and right pair delivering stop, diffused tail, sequential indicator, reverse, and inbuilt reflector functions in a single European-inspired slimline unit. The standout feature is the sequential indicator: amber LEDs sweep outwards in a dynamic sequence pattern rather than a standard on/off flash, delivering a premium, high-visibility indicator style associated with high-end European vehicles.
The European-inspired 284 Series design combines a diffused tail light with a sequential indicator that lights up in a dynamic sequence, along with stop, reverse, and an inbuilt reflex reflector, all blended together in one compact unit. The lamps are ECE Australian road approved and EMC protected.
Each lamp measures 284mm x 100mm x 37mm and is suitable for both 12V and 24V systems. Installation uses a bolt-on surface mount with stainless steel fittings, and includes a 28cm pre-wired cable. The lamps are also compatible with the optional multi-fit bracket MFBKT, sold separately.
Key Specifications
- Functions: Stop, tail (diffused), sequential indicator, reverse, reflector
- Voltage: 10–30V DC (multivolt suits 12V and 24V)
- Dimensions: 284mm x 100mm x 37mm
- Cable length: 28cm
- Mount type: Horizontal surface mount bolts through rear, wire through 10mm hole
- Optional bracket: MFBKT multi-fit bracket (sold separately)
- IP rating: IP67
- Compliance: ECE Australian road approved, EMC protected
- Warranty: 5 years
- Pack quantity: 2 lamps (1 left + 1 right) twin blister
- Brand: LED Autolamps
- SKU: 284ARWM-2
Features & Benefits
- Sequential indicator: Dynamic sweeping amber LED indicator sequence provides dramatically improved road presence and visibility compared to standard on/off flash indicators
- Diffused tail function: Even, soft diffused tail light output delivers a premium, modern appearance with consistent illumination across the lamp face
- European-inspired exclusive design: The 284 Series "Zeon" design is an exclusive LED Autolamps shape unavailable from other brands, providing a distinctive, premium appearance
- Five functions in one unit: Stop, diffused tail, sequential indicator, reverse, and inbuilt reflector consolidated into a single slimline lamp
- 28cm cable: Pre-wired for straightforward installation
- Stainless steel bolt mount: Secure horizontal surface mount with stainless steel fittings for long-term corrosion resistance
- MFBKT bracket compatible: Works with the LED Autolamps MFBKT multi-fit bracket (sold separately) for tray vehicle applications
- ECE and EMC approved: Legal for Australian road use across all five functions with electromagnetic compatibility protection
- IP67 weatherproof: Completely sealed against dust and temporary water immersion
- 10–30V multivolt: Suits 12V passenger, caravan, and trailer applications through to 24V commercial trucks
- 5-year warranty: Backed by LED Autolamps' industry-standard warranty
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 284ARWM-2 |
| Brand | LED Autolamps |
| Series | 284 Series (Zeon) |
| Functions | Stop, Diffused Tail, Sequential Indicator, Reverse, Reflector |
| Voltage | 10–30V DC (multivolt) |
| Dimensions | 284mm x 100mm x 37mm |
| Cable Length | 28cm |
| Mount Type | Horizontal surface mount rear bolts, 10mm hole |
| Optional Bracket | MFBKT (sold separately) |
| IP Rating | IP67 |
| Compliance | ECE Australian road approved, EMC protected |
| Warranty | 5 Years |
| Pack Quantity | 2 lamps (1 left + 1 right) twin blister |
Compatible With
Suits all 10–30V trailers, caravans, ute trays, and commercial vehicles including:
- 4WD tray and canopy builds
- Caravans and camper trailers
- Box trailers and light commercial trailers
- Small to medium trucks
Frequently Asked Questions
What makes the indicator on the 284ARWM-2 "sequential"?
Rather than a standard on/off flash, the sequential indicator LEDs sweep outwards in a dynamic sequence a premium indicator style associated with high-end European vehicles. It provides significantly greater visual impact and road presence compared to standard indicators.
How many lamps are in this pack?
The 284ARWM-2 twin blister pack includes two lamps one left and one right for a complete matched rear lighting solution.
Is the MFBKT bracket included?
No the MFBKT multi-fit bracket is sold separately. It is compatible with the 284ARWM-2 for tray vehicle and bracket mount applications.
How is the lamp installed?
Surface mount horizontally using the bolts in the rear of the lamp. Run the wire and plug through a 10mm hole in the fixing surface. Refer to ADR 13/00 for mounting position and height requirements.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
