LED Autolamps 285BA12 Rear Indicator Light 16 LED 12V Low Profile Surface Mount

ECE Approved 12V Slimline Rear Indicator 16 LEDs, 285x25x10mm, Black/Chrome Caps, Horizontal/Vertical Mount

Product Overview

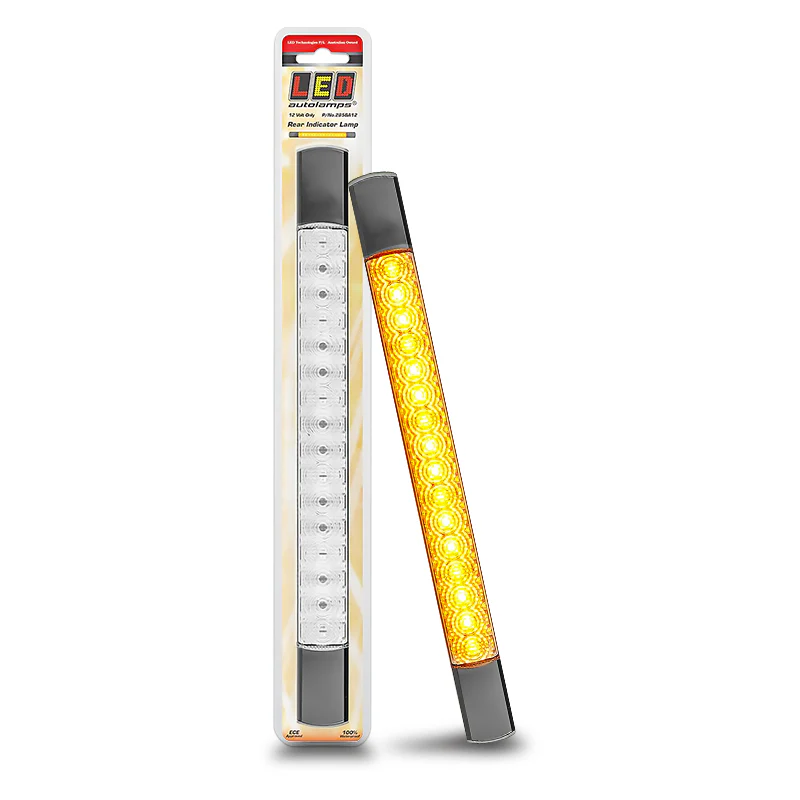

The LED Autolamps 285BA12 is a 12V slimline surface-mount rear indicator lamp with 16 LEDs in a 285mm x 25mm x 10mm polycarbonate housing with black chrome end caps. At only 10mm deep, it is an exceptionally low-profile indicator suited to trailer bodies, caravans, and truck panels where minimal depth is essential. The 266mm centre-to-centre mount supports both horizontal and vertical installation.

ECE approved under E9 6R01/28 22184 00, drawing 0.2A at 13.8V, with an 85mm cable lead. Rated IP67 and backed by a 5-year warranty.

Features & Benefits

• 16 LEDs — consistent amber indicator output across the 285mm slimline lamp face
• 10mm depth — among the shallowest indicator lamps in the LED Autolamps range; suited to confined mounting panels
• Black/chrome end caps — premium finish that complements the slimline form factor
• Horizontal and vertical mount — flexible orientation suits a wide range of trailer and vehicle panel configurations
• Polycarbonate lens and base — impact-resistant with good optical clarity
• ECE approved — certified under ECE E9 6R01/28 22184 00 for legal on-road use as a rear indicator
• 0.2A current draw — efficient operation at 13.8V
• IP67 rated — fully sealed against dust and water immersion
• 266mm centre-to-centre mount — confirm against your panel before installation
• 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Compatible With / Goes Well With

• Trailers, caravans, and commercial vehicles requiring ultra-slim rear indicator lamps
• 12V trailer and vehicle electrical systems
• LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 285BA12 approved for road use in Australia?

Yes. The 285BA12 is ECE approved under E9 6R01/28 22184 00, meeting international road approval standards accepted for legal on-road use in Australia as a rear indicator lamp.

How shallow is the 285BA12?

At 10mm deep, the 285BA12 is one of the shallowest rear indicator lamps in the LED Autolamps catalogue — suited to thin panel installations where conventional lamp depth would be problematic.

What mounting orientations does the 285BA12 support?

It supports both horizontal and vertical surface mounting, giving installation flexibility to suit different trailer and vehicle panel layouts.

What is the IP rating on the 285BA12?

The 285BA12 is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and vehicle body mounting.

What warranty does the 285BA12 carry?

The 285BA12 is backed by a 5-year warranty from LED Autolamps.
