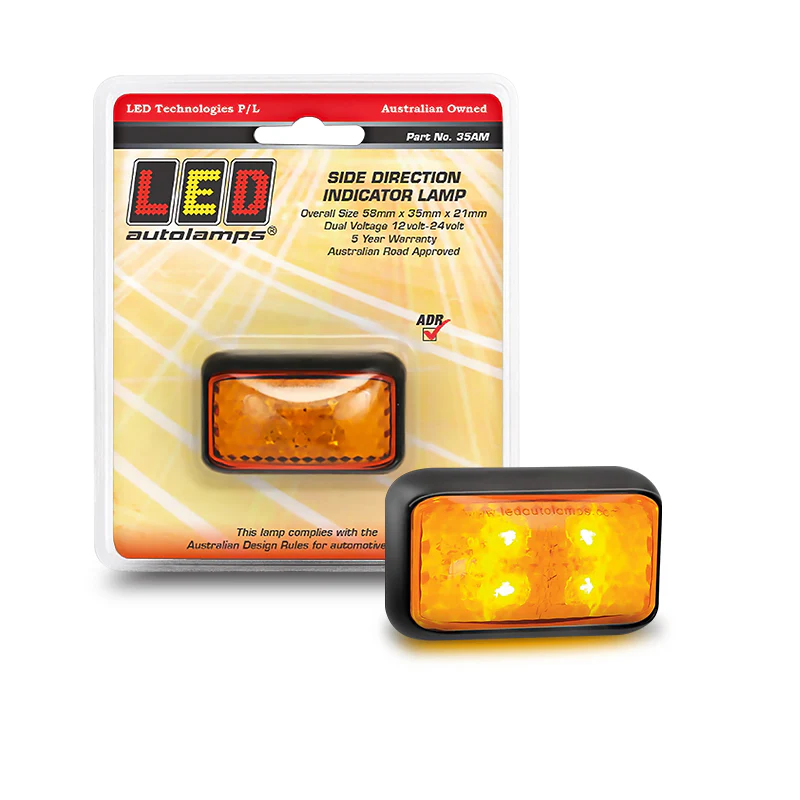

LED Autolamps 35AM 10/30V Side Direction Indicator With 4 LEDs

Cat 5 Amber LED Side Direction Indicator 4 LEDs, ADR 6/00 CRN 33894, 10–30V, Clip-In Lens.

---

Product Overview

The LED Autolamps 35AM is an amber LED Category 5 side direction indicator from the 35 Series, featuring 4 amber LEDs, pre-wired cable, and a surface mount bracket with 28mm centre-to-centre bolt spacing. The chrome bracket version of the 35AM range the black bracket equivalent is the 35AMB.

ADR 6/00 Category 5 approved (CRN 33894, CTA060078), IP67 rated, and drawing 0.1A at 13.8V, the 35AM delivers legal amber side indicator output in the compact 58mm x 35mm x 21mm 35 Series form factor. Operating across a broad 10–30V voltage range and backed by LED Autolamps' 5-year warranty. Supplied as a single unit in blister packaging.

---

Key Specifications

• Function: Category 5 amber side direction indicator
• LED count: 4
• LED colour: Amber
• Housing colour: Black
• Dimensions: 58mm x 35mm x 21mm
• Centre-to-centre mounting: 28mm
• Cable: Pre-wired
• Mount type: Surface mount clip-in lens
• IP rating: IP67
• Input voltage: 10–30V DC (multivolt)
• Current draw: 0.1A @ 13.8V
• Compliance: ADR 6/00 Cat 5 CRN 33894, CTA060078
• Warranty: 5 years
• Packaging: Blister pack single unit
• Brand: LED Autolamps
• SKU: 35AM

---

Features & Benefits

• ADR 6/00 Category 5 side direction indicator: Fully certified for legal use as a Category 5 side direction indicator on Australian road vehicles and trailers
• Dual ADR compliance: CRN 33894 and CTA060078 confirm broad compliance across ADR 6/00 Category 5 requirements
• 4 amber LEDs: Four amber LEDs deliver bright, clearly visible indicator output
• 28mm centre-to-centre mounting: Standard two-bolt spacing for straightforward surface installation
• 10–30V multivolt: Covers 12V and 24V systems and beyond
• Ultra-low 0.1A current draw: Minimal load on the vehicle's electrical system
• Clip-in replaceable lens: Lens clips in and out without removing the bracket
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

---

Technical Specs

---

Compatible With

Universal suits all 10–30V trailers, caravans, and commercial vehicles requiring Category 5 ADR-compliant amber side direction indicators including:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks
• Agricultural and construction trailers

---

Frequently Asked Questions

What ADR category is this lamp approved for?

The 35AM is ADR 6/00 Category 5 approved under CRN 33894 and CTA060078, confirming it meets Australian legal requirements for Category 5 side direction indicator use on trailers and commercial vehicles.

What is the difference between the 35AM and the 35AMB?

Both are identical amber Cat 5 side direction indicators the 35AM has a chrome bracket while the 35AMB has a black bracket. Choose based on your preferred bracket colour.

How many LEDs does this lamp have?

The 35AM contains 4 amber LEDs providing Category 5 side direction indicator output.

What voltage systems does this lamp suit?

The 35AM operates on 10–30V DC, covering 12V and 24V systems plus broader voltage applications.
