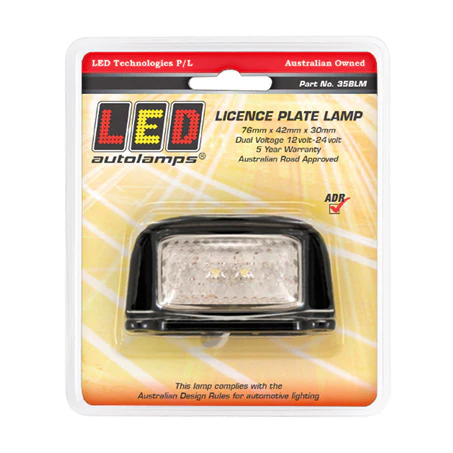

LED Autolamps 35BLM Licence Plate Lamp Black Bracket Multi Volt With 40cm Wire

ADR 48/00 Approved 12/24V Licence Plate Lamp Black Bracket, 40cm Wire, One Lamp for Compliance

Product Overview

The LED Autolamps 35BLM is a 12/24V LED licence plate lamp with a black bracket and 40cm pre-wired lead, measuring 76mm x 42mm x 30mm with a 64mm centre-to-centre mount. Like the 35CLM, only one lamp is required to meet ADR 48/00 compliance making it a simple, no-over-specification installation. The black bracket gives it a clean, practical appearance suited to a wide range of trailer and vehicle rear panel styles.

Drawing just 0.02A at 13.8V, IP67 rated.

Features & Benefits

• Black bracket — clean finish suits a wide range of trailer and vehicle rear panel aesthetics
• 40cm pre-wired cable — longer lead than the 30 series (0.14m) for more flexible routing to the number plate
• One lamp required for ADR compliance — a single 35BLM satisfies ADR 48/00 requirements
• White LED output — bright, clear white light for effective number plate illumination
• ADR 48/00 approved — meets Australian Design Rules for legal on-road use as a licence plate lamp
• IP67 rated — fully sealed against dust and water immersion
• Very low current draw — 0.02A at 13.8V
• 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
• 64mm centre-to-centre mount — confirm against your bracket before installation

Technical Specs

Compatible With / Goes Well With

• Trailers, trucks, and commercial vehicles requiring ADR 48/00 compliant licence plate illumination
• 12V light vehicles and 24V heavy transport applications
• LED Autolamps 35CLM (same single-lamp compliance concept, different bracket finish)
• LED Autolamps 30BLM (two-lamp compliance variant — smaller 65mm form factor)
• LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

How many 35BLM lamps are required for ADR compliance?

Only one lamp is required to meet ADR 48/00 compliance — a single 35BLM provides a fully compliant number plate light installation.

How does the 35BLM differ from the 35CLM?

The 35BLM has a black bracket and a 40cm cable, while the 35CLM's bracket colour was not confirmed. Both share the same single-lamp ADR compliance, 76mm x 42mm form factor, and 0.02A current draw — check with F.A.E. for bracket colour confirmation on the 35CLM.

What colour light does the 35BLM produce?

The 35BLM produces white LED output for clear, effective number plate illumination.

What is the IP rating on the 35BLM?

The 35BLM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed outdoor trailer and vehicle mounting.

What warranty does the 35BLM carry?

Warranty information was not confirmed in available supplier data — contact F.A.E. or LED Autolamps to confirm before purchasing.
