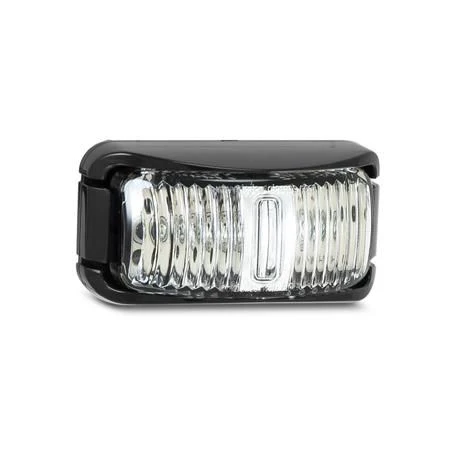

LED Autolamps 42WMB Front End Outline Marker White Clear Lens 16cm Cable 10 Pack

White Front End Outline Marker Bulk Box of 10, ADR 49/00 CRN 42840, 12/24V, Classic Truck Style.

---

Product Overview

The LED Autolamps 42WMB is a bulk box of 10 white front end outline markers from the 42 Series Black the classic truck-style marker with a black bracket, polycarbonate lens over hardened acrylic base, clip-in lens, and 16cm cable. Box of 10 front position markers with white LEDs and black base, 74mm x 38mm x 34.5mm, multi-volt, ADR approved.

ADR Category 49/00 CRN 42840, 0.03A current draw at both 13.8V and 28V, 16cm cable, polycarbonate lens, hardened acrylic base. Installation: mount bracket horizontally onto flat surface, run wires through back, clip lens into place. Backed by LED Autolamps' 5-year warranty.

---

Key Specifications

• Function: White front end outline marker
• Lens material: Polycarbonate
• Base material: Hardened acrylic
• Bracket: Black
• Dimensions: 74mm x 38mm x 35mm
• Cable: 16cm
• Fitting: Clip-in lens
• Current draw: 0.03A @ 13.8V / 0.03A @ 28V
• Mount type: Surface mount bracket screw fix, clip-in lens
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ADR 49/00 CRN 42840
• Warranty: 5 years
• Pack quantity: 10 (bulk box)
• Brand: LED Autolamps
• SKU: 42WMB

---

Features & Benefits

• Bulk box of 10: Trade supply for workshops, fleet operators, and trailer manufacturers
• Classic truck style: The 42 Series delivers the traditional round-body truck marker lamp profile popular on Australian commercial trucks and trailers
• Black bracket: Dark finish suited to modern builds; chrome bracket version also available in the 42 Series Chrome range
• Clip-in lens: Polycarbonate lens clips in and out without tools for easy replacement
• ADR 49/00 CRN 42840: Legal for white front end outline marker use on Australian road vehicles
• Ultra-low 0.03A current draw: Consistent at both 12V and 24V minimal electrical load
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 12V and 24V compatible: Suits all trailer, caravan, and commercial vehicle applications
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

---

Technical Specs

---

Compatible With

Suits all 12V and 24V trucks, trailers, and commercial vehicles requiring white ADR-compliant front end outline markers:

• Commercial trucks and prime movers
• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Fleet and workshop bulk supply

---

Frequently Asked Questions

How many lamps are in the 42WMB bulk box?

Box of 10 front position markers.

Is this lamp ADR approved?

Yes ADR Category 49/00 CRN 42840 for white front end outline marker use on Australian road vehicles.

What is the current draw?

0.03A at both 13.8V and 28V consistent across 12V and 24V systems.

Can the lens be replaced without removing the bracket?

Yes the clip-in lens design allows lens replacement without removing the bracket from the mounting surface.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
