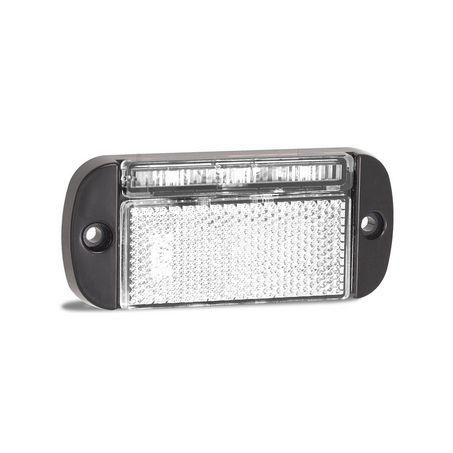

LED Autolamps 44WMEB Front End Outline Marker With White Reflector

White Front End Outline Marker with Inbuilt Reflector Slimline, ADR/ECE Approved, 12/24V.

---

Product Overview

The LED Autolamps 44WMEB is a white front end outline marker with inbuilt white reflector from the 44 Series a slimline low-profile marker lamp with a 100mm x 44mm x 12mm form factor and the option of a 90-degree bracket for flexible mounting orientations. The inbuilt white reflector provides both active LED marker output and passive reflective compliance in a single compact unit.

The 44 Series is available in both black and white housing variants and features a 90-degree bracket option for installations where the lamp mounting surface is not flush with the intended lamp face direction. ADR/ECE approved, IP67 rated, 12/24V multivolt, and backed by LED Autolamps' 5-year warranty. The "B" suffix denotes bulk single unit.

---

Key Specifications

• Function: White front end outline marker with inbuilt white reflector
• Dimensions: 100mm x 44mm x 12mm
• Mount type: Surface mount 90° bracket option available
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ADR/ECE approved
• Warranty: 5 years
• Pack quantity: Single unit (bulk)
• Brand: LED Autolamps
• SKU: 44WMEB

---

Features & Benefits

• Inbuilt white reflector: Combined active white LED marker output and passive white reflective compliance in a single unit reduces the need for a separate reflector
• Slimline low-profile design: At 12mm deep, the 44 Series provides an unobtrusive front marker footprint on trailer frames and body panels
• Available in black and white: Choose the housing colour to match your trailer or vehicle build aesthetic
• 90° bracket option: Allows the lamp to be mounted at a right angle to the surface suited to corner, tray edge, and angled panel installations
• ADR/ECE approved: Certified for white front end outline marker use on Australian and international road vehicles and trailers
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

---

Technical Specs

---

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles requiring white ADR/ECE-compliant front end outline markers:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks

---

Frequently Asked Questions

Does this lamp include an inbuilt reflector?

Yes the 44WMEB has an inbuilt white reflector providing both active LED marker output and passive reflective compliance in a single unit.

Is a 90° bracket included with this lamp?

The 90° bracket is listed as an option confirm with your retailer whether it is included or sold separately.

What housing colours are available in the 44 Series?

The 44 Series is available in black and white housing variants. Confirm the specific housing colour for the 44WMEB with your retailer.

Is this lamp ADR and ECE approved?

Yes the 44WMEB is ADR/ECE approved for white front end outline marker use on Australian road vehicles and trailers.
