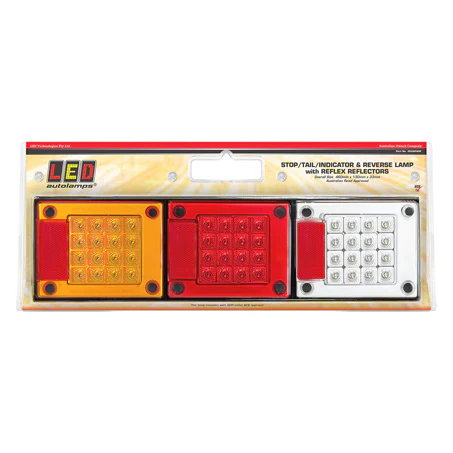

LED Autolamps 460ARWM 12/24V Stop/Tail/Indicator/Reverse Lamp 460x130x33mm
ECE Approved Medium Jumbo Stop/Tail/Indicator/Reverse Lamp with Reflex Reflectors 460x130mm, IP67
Product Overview
The LED Autolamps 460ARWM is a 12/24V Medium Jumbo rear combination lamp covering stop, tail, indicator, and reverse functions with inbuilt reflex reflectors in a 460mm x 130mm x 33mm ABS base housing with acrylic lens. The 280mm centre-to-centre mount suits larger trailer and truck body rear panel configurations where the standard 275-283mm series lamps are too short.
ECE road approved and rated IP67, backed by a 5-year warranty.
Features & Benefits
- Medium Jumbo 460mm form factor — wider than the standard 280-283mm range; suited to larger trailer bodies and truck rear panels
- Stop, tail, indicator, reverse, and inbuilt reflectors — five functions in a single surface-mount unit
- Inbuilt reflex reflectors — integrated passive reflective elements for additional rear visibility and compliance
- Acrylic lens — good optical clarity and UV resistance for outdoor transport applications
- ABS base — lightweight, impact-resistant thermoplastic housing
- 280mm centre-to-centre mount — confirm against your panel before installation
- ECE road approved — meets international road approval standards for legal on-road use
- IP67 rated — fully sealed against dust and water immersion
- 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 460ARWM |
| Series | Medium Jumbo |
| Lamp Type | Stop / Tail / Indicator / Reverse / Reflector |
| Voltage Range | 12V / 24V |
| Dimensions | 460mm x 130mm x 33mm |
| Mount Centre-to-Centre | 280mm |
| Lens Material | Acrylic |
| Base Material | ABS |
| Mounting | Surface mount |
| Protection Rating | IP67 |
| Compliance | ECE |
| Warranty | 5 years |
Compatible With / Goes Well With
- Larger trailers, trucks, and commercial vehicles requiring a wide-format rear combination lamp
- 12V light vehicles and 24V heavy transport applications
- Trailer builds requiring ECE-approved rear combination lighting
- LED Autolamps 460AM rear indicator lamp (same 460 series)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 460ARWM approved for road use in Australia?
Yes. The 460ARWM is ECE road approved, meeting international road approval standards accepted for legal on-road use in Australia across all five functions.
What is the Medium Jumbo classification?
Medium Jumbo refers to the 460mm length — a wider format than the standard 280-283mm Mini Jumbo series, suited to larger trailer bodies and truck rear panels where a longer lamp is required for proportional rear lighting coverage.
What is the difference between acrylic and polycarbonate lens materials?
Acrylic (PMMA) offers good optical clarity and UV resistance. Polycarbonate is generally more impact-resistant but can yellow with UV exposure over time without UV coating. Both are common in trailer lamp lenses — acrylic suits applications where optical clarity is prioritised.
What is the IP rating on the 460ARWM?
The 460ARWM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.
What warranty does the 460ARWM carry?
The 460ARWM is backed by a 5-year warranty from LED Autolamps.
