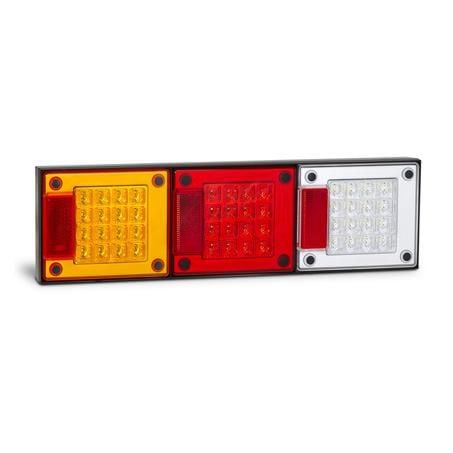

LED Autolamps 460ARWMB Stop/Tail/Indicator/Reverse Reflectors Lens 1.2m Cable

Medium Jumbo Stop/Tail/Indicator/Reverse Inbuilt Reflectors, 460mm, ECE Approved, 12/24V, Single Bulk Unit.

---

Product Overview

The LED Autolamps 460ARWMB is a four-function medium jumbo rear combination lamp from the 460 Series delivering stop, tail, indicator, and reverse functions with inbuilt reflex reflectors in a large 460mm x 130mm x 33mm housing. The medium jumbo format positions the 460 Series between the compact 280 Series and the large 520 Series, making it well suited to medium-large trailers, trucks, and commercial vehicles requiring a premium-size combination lamp.

The acrylic lens over ABS base construction provides UV resistance and durability. With 280mm centre-to-centre bolt mounting and a 1.2m cable, the 460ARWMB mounts to a flat surface using the bolts provided. ECE approved, IP67 rated, 12/24V multivolt, and backed by LED Autolamps' 5-year warranty. The "B" suffix denotes bulk single unit supply.

---

Key Specifications

• Functions: Stop, tail, indicator, reverse
• Inbuilt reflex reflectors: Yes
• Lens material: Acrylic
• Base material: ABS
• Dimensions: 460mm x 130mm x 33mm
• Centre-to-centre mounting: 280mm
• Cable: 1.2m
• Mount type: Surface mount bolts provided
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ECE approved
• Warranty: 5 years
• Pack quantity: Single unit (bulk)
• Brand: LED Autolamps
• SKU: 460ARWMB

---

Features & Benefits

• Medium Jumbo design: 460mm x 130mm x 33mm format bridges the gap between compact and large combination lamps ideal for medium-large trailers and commercial vehicles
• Inbuilt reflex reflectors: Combined active LED output and passive reflective compliance in a single unit
• Four-function combination: Stop, tail, indicator, and reverse in one lamp
• Acrylic lens over ABS base: Durable, UV-resistant construction for long-term outdoor performance
• 280mm centre-to-centre mounting: Provides stable two-bolt installation on large rear panels
• 1.2m cable: Generous cable length for flexible routing in medium-large trailer installations
• ECE approved: Legal for all four functions on Australian and international road vehicles
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

---

Technical Specs

---

Compatible With

Suits all 12V and 24V medium-large trailers, caravans, and commercial vehicles:

• Medium-large tray vehicles and truck bodies
• Caravans and large camper trailers
• Commercial trailer rear panels

---

Frequently Asked Questions

What is the "Medium Jumbo" design?

The 460 Series Medium Jumbo format at 460mm x 130mm x 33mm positions this lamp between the compact 280 Series Mini Jumbo and the larger 520 Series combination lamps suited to medium-large trailers requiring a premium-size rear combination lamp.

Does this lamp include reflectors?

Yes inbuilt reflex reflectors provide both active LED output and passive reflective compliance in a single unit.

What is the cable length?

1.2m confirmed from supplier title and consistent with the medium jumbo format.

Is this lamp 12V or 24V?

The 460ARWMB is 12–24V multivolt compatible with both 12V and 24V vehicle electrical systems.
