LED Autolamps 5025WM2 White Side Marker Twin Pack

White Front End Outline Marker Twin Pack Non-Fastener Plug & 3M Tape, ADR Approved, 12/24V.

---

Product Overview

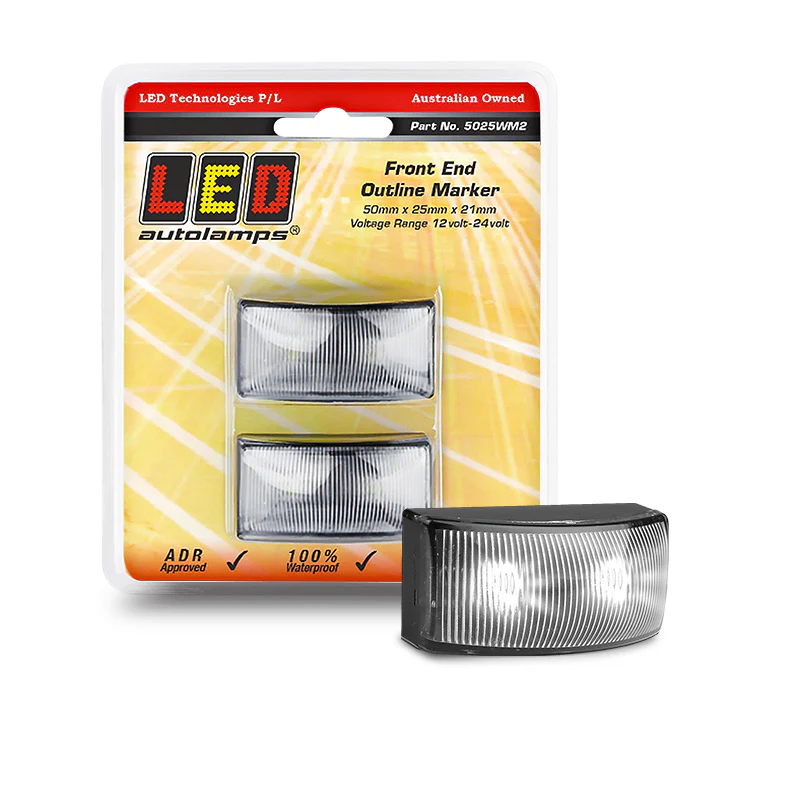

The LED Autolamps 5025WM2 is a twin blister pack of 5025 Series white front end outline (FEO) markers two lamps per pack for complete left and right front marker installation in a single purchase. The 5025WM2 is a front end outline marker with non-fastener fitting design, low-profile compact form, ADR approved, IP67, 12–24V, 5-year warranty, 50mm x 25mm x 21mm.

The 5025 Series uses a unique non-fastener fitting system drill a 10mm hole for the serrated plug, peel the 3M tape backing, and press firmly onto a clean, dry surface. No screws or bolts required. ADR approved under CRN 47203. Supplied as a twin blister pack two white FEO markers per pack. The single bulk unit version is the 5025WMB.

---

Key Specifications

• Function: White front end outline (FEO) marker
• Lens: Clear with internal white LEDs
• Dimensions: 50mm x 25mm x 21mm
• Fitting system: Non-fastener serrated plug + 3M adhesive tape
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ADR approved CRN 47203
• Warranty: 5 years
• Pack quantity: 2 (twin blister)
• Brand: LED Autolamps
• SKU: 5025WM2

---

Features & Benefits

• Twin pack: Two white FEO markers per pack for complete left and right front fitment in a single purchase
• Non-fastener fitting: Serrated plug and 3M adhesive tape no screws, no bolts, no drilling of fixing holes required saves significant installation time compared to traditional marker lamps
• Clear lens with white LEDs: Modern clean lens appearance maintaining colour accuracy without UV fading
• Compact 50mm x 25mm x 21mm: Low-profile form factor for discreet, unobtrusive front panel installation
• ADR approved CRN 47203: Certified for legal white front end outline marker use on Australian road vehicles and trailers
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

---

Technical Specs

---

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles requiring white ADR-compliant front end outline markers:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks
• Agricultural and construction trailers

---

Frequently Asked Questions

How many lamps are in this pack?

Two one for each side of the vehicle or trailer front.

Is this a front or side marker?

This is a white front end outline (FEO) marker the supplier title "White Side Marker" is a naming error confirmed across all verified sources including Carac, MaxiPARTS, and the official LED Autolamps 5025 Series page.

What is the ADR compliance code?

CRN 47203 confirmed from MaxiPARTS.

How is this lamp installed?

Drill a 10mm hole for the serrated plug, peel the 3M tape backing, and press firmly onto a clean, dry surface. No screws or bolts required.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
