LED Autolamps 520ARRMB Stop/Tail/Indicator Diffused Tail Sequential Indicator

520 Series Stop/Tail/Sequential Indicator Diffused Tail, No Reverse, ECE Approved, 12/24V.

Product Overview

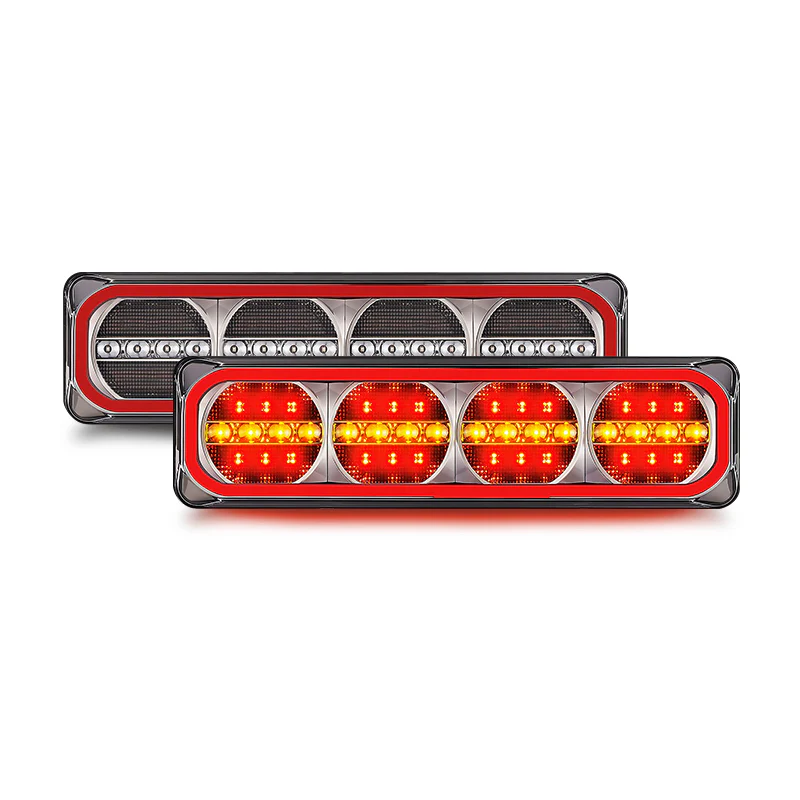

The LED Autolamps 520ARRMB is a stop/tail/indicator combination lamp from the 520 Series the three-function variant without a reverse lamp. Sharing the same large 520mm x 141mm x 28.5mm format, diffused tail function, and sequential indicator sweep as the full four-function 520ARWMRCSB and 520ARWMLCSB listed earlier, the 520ARRMB is suited to applications where reverse lighting is provided separately or not required at this lamp position.

The absence of "W" in the function suffix confirms no reverse function. The "B" suffix denotes bulk single unit supply. Separate the base plate from the lamp, horizontally mount onto a flat surface, clip the lamp into the base. ECE approved, IP67 rated, 12/24V multivolt, and backed by LED Autolamps' 5-year warranty.

Key Specifications

• Functions: Stop, tail (diffused), sequential indicator (no reverse)
• Dimensions: 520mm x 141mm x 28.5mm
• Mount type: Separate base plate clip lamp into base, horizontal surface mount
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ECE approved
• Warranty: 5 years
• Pack quantity: Single unit (bulk)
• Brand: LED Autolamps
• SKU: 520ARRMB

Features & Benefits

• Three-function combination no reverse: Stop, diffused tail, and sequential indicator without reverse suited to applications where reverse is provided separately
• Sequential indicator: Dynamic sweeping amber indicator for premium visibility
• Diffused tail function: Soft, even LED glow for a premium finished appearance
• Large 520mm format: Suited to large tray vehicles, trucks, and commercial trailers
• Base plate and clip-in lamp: Clean installation with easy lamp replacement
• ECE approved: Legal for all three functions on Australian and international road vehicles
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Compatible With

Suits all 12V and 24V large tray vehicles, trucks, and commercial trailers where reverse is provided separately:

• Large ute tray builds where reverse is in a separate lamp
• Commercial truck bodies
• Bus and coach rear panels

Frequently Asked Questions

Does this lamp include a reverse function?

No the 520ARRMB is stop/tail/sequential indicator only. For the version with reverse, refer to the 520ARWMRCSB (RHS) or 520ARWMLCSB (LHS).

Is this lamp handed (left or right)?

The 520ARRMB does not have a specific left or right-hand orientation unlike the reverse-equipped 520ARWMRCSB (RHS) and 520ARWMLCSB (LHS). Confirm suitability for your specific application.

What is the sequential indicator sweep?

The sequential indicator LEDs sweep outwards in a dynamic amber sequence rather than a standard on/off flash for improved visibility and a premium appearance.

Is this lamp suitable for both 12V and 24V systems?

Yes the 520 Series operates on 12–24V DC.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
