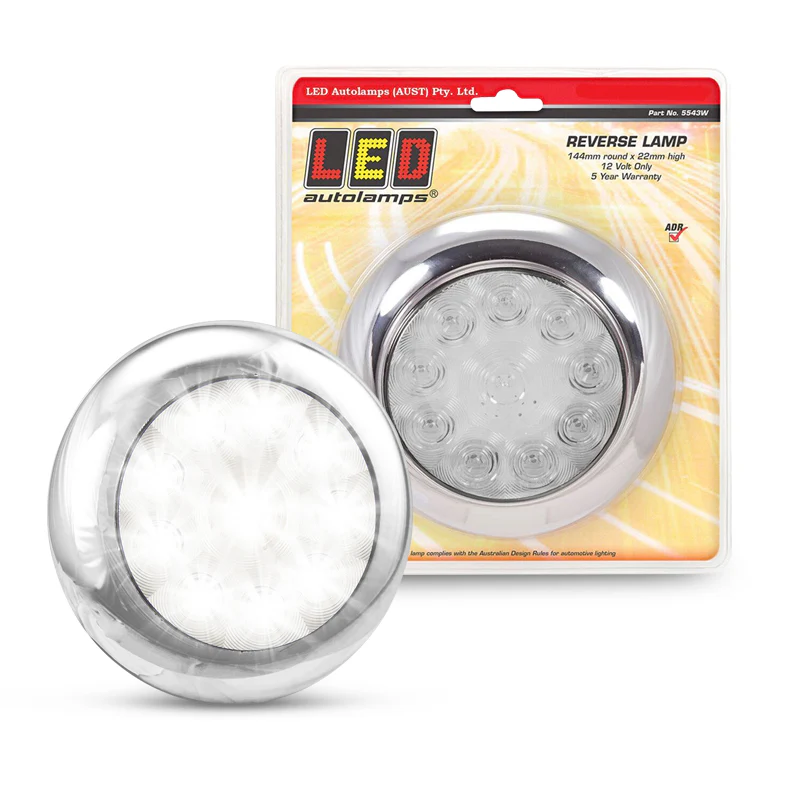

LED Autolamps 5543W 12V Round Backup Lamp With Chrome Flange And 10 LEDs
12V Round Chrome Reverse Lamp American Style Design, 10 LEDs, ADR Approved, Clip-On Bezel.
Product Overview
The LED Autolamps 5543W is a 12V round reverse lamp from the 5543 Series a distinctive American-style round lamp with a chrome bezel and clip-on bracket design. Measuring 144mm round x 22mm, the 5543W features 10 white LEDs for reverse lamp output through a clear lens, with ADR approval and IP67 weatherproofing.
The 5543W features an American style design, round reverse light with chrome bezel, screw mount with clip-on bezel, and is shock, dust, and waterproof. Installation: remove bezel and surface mount to flat surface with screws, then clip bezel back into place. Backed by LED Autolamps' 5-year warranty and supplied as a single unit.
Key Specifications
- Function: Reverse (white LED)
- LED count: 10
- Lens: Clear
- Bezel: Chrome clip-on
- Dimensions: 144mm round x 22mm
- Mount type: Screw mount remove bezel, fix screws, clip bezel back
- IP rating: IP67
- Input voltage: 12V only (see voltage note)
- Compliance: ADR approved CTA-060244
- Warranty: 5 years
- Brand: LED Autolamps
- SKU: 5543W
Features & Benefits
- American style round design:Â Classic round lamp format popular on tray vehicles, horse floats, and traditional trailer builds
- Chrome clip-on bezel:Â Premium chrome surround clips over the lamp after mounting for a clean, professional appearance with no visible fasteners
- 10 white LEDs:Â Clear lens with 10 internal white LEDs for bright, wide reverse lamp output
- Screw mount with clip bezel:Â Remove bezel, screw fix to surface, clip bezel back for a clean finish
- ADR approved CTA-060244:Â Certified for reverse lamp use on Australian road vehicles and trailers
- IP67 weatherproof:Â Completely sealed against dust, shock, and water
- 5-year warranty:Â Backed by LED Autolamps' 5-year warranty
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 5543W |
| Brand | LED Autolamps |
| Series | 5543 Series |
| Function | Reverse |
| LED Count | 10 |
| Lens | Clear |
| Bezel | Chrome clip-on |
| Dimensions | 144mm round x 22mm |
| Mount Type | Screw mount remove bezel, fix, clip bezel back |
| IP Rating | IP67 |
| Input Voltage | 12V only (confirm with retailer) |
| ADR Compliance | CTA-060244 |
| Warranty | 5 Years |
Compatible With
Suits 12V trailers, caravans, and vehicles requiring a round chrome reverse lamp:
- American-style tray vehicles and ute builds
- Horse floats and livestock trailers
- Caravans and camper trailers
- Traditional trailer builds using round lamp formats
Frequently Asked Questions
Is this lamp 12V or 24V?
The 5543W is 12V only per Ultimate LED confirmation. The supplier features "12–24V" appears to be a general 5543 Series statement. Confirm with your retailer before purchasing.
How does the clip-on bezel work?
Remove the bezel, surface mount the lamp to a flat surface with screws, then clip the bezel back into place to conceal the mounting screws and provide a clean, chrome finished appearance.
Is this lamp ADR approved?
Yes the 5543W is ADR approved under CTA-060244 for reverse lamp use on Australian road vehicles and trailers.
What diameter is this lamp?
144mm round x 22mm deep the American-style round format is notably larger than the slim strip-style reverse lamps in the 235 Series.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always confirm voltage compatibility before purchasing. Contact the seller if you're unsure.
